The MCF528X is a 32-bit microcontroller (MCU) family based on the ColdFire^® V2 core and integrated with Ethernet, CAN and flash (except for MCF5280). These devices offer advanced communications features, a rich peripheral set and a variety of supporting software and development tools.

The MCF528X family is designed to simplify embedded Ethernet-networked MCU applications. With its integrated 10/100 Mbps Ethernet MAC and network-ready applications software, the MCF5280 can bring standards-based networking to a variety of traditional MCU applications including food service equipment, security systems, vending machines, exercise equipment and industrial controllers. Applications in all of these areas will benefit from networking functions such as web-based user interfaces, network time synchronization and router/gateway functionality for legacy serial protocols.

Available software with support for IP, UDP, TCP, ARP, DHCP, ICMP, SNTP, HTTP and TFTP protocols.

Data Sheet

Reference Manual

Product Details

Block Diagram

ColdFire MCF528X Microcontroller Block Diagram

Get diagram PDF

Features

ColdFire^® V2 core delivering 76 (Dhrystone 2.1) MIPS at 80 MHz running from cache/RAM (max running from internal flash 66 MIPS)
Cache (KB): 2 KB I/D
Integrated peripherals
- 10/100 Ethernet MAC
- CAN 2.0B
- 3 universal aynchronous receive/transmitters (UARTs) with direct memory access (DMA) capability
- I²C
- Queued serial peripheral interface (QSPI) with four peripheral chip selects
- Eight-channel 10-bit queued analog-to-digital converter (ADC)
- Four 32-bit timers with capture, compare and DMA capability
- Eight 16-bit timer channels for capture, compare and pulse width modulation (PWM)
- PITs: Four

Buy/Parametrics

Part Show description	Status	Package Type	Package Termination Count	Budgetary Price excluding tax
MCF5280CVF66 Data Sheet Replacement part(s): MCF5280CVM66	Not Recommended for New Designs	LBGA256	256	10K @ US$27.50
MCF5280CVM66 Data Sheet	Not Recommended for New Designs	LBGA256	256	10K @ US$26.67
MCF5280CVM80 Data Sheet	Not Recommended for New Designs	LBGA256	256	10K @ US$32.01
MCF5281CVM66 Data Sheet	Not Recommended for New Designs	LBGA256	256	10K @ US$29.91
MCF5281CVM80 Data Sheet	Not Recommended for New Designs	LBGA256	256	10K @ US$37.00
MCF5282CVF66 Data Sheet Replacement part(s): MCF5282CVM66	Not Recommended for New Designs	LBGA256	256	10K @ US$33.52
MCF5282CVF80 Data Sheet Replacement part(s): MCF5282CVM80	Not Recommended for New Designs	LBGA256	256	10K @ US$40.23
MCF5282CVM66 Data Sheet	Not Recommended for New Designs	LBGA256	256	10K @ US$32.51
MCF5282CVM80 Data Sheet	Not Recommended for New Designs	LBGA256	256	10K @ US$39.02

Design Resources

Design Files

Receive the full breakdown. See the product footprint and more in the eCad file.

Hardware

Quick reference to our board types.

2 hardware offerings

Emulators, Probes, and Programmers

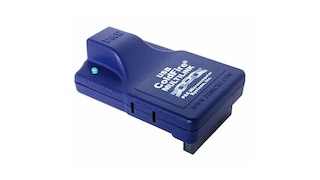

USB ColdFire MultlinkFeatured
Active

USBMLCF
Evaluation and Development Boards

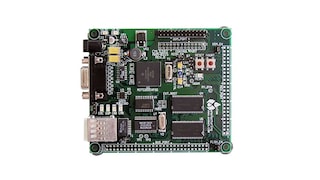

ColdFire M5282 Student Learning KitFeatured

SA5282SLK
