S32K3X4EVB-T172 Evaluation Board
S32K3 Familiy Overview

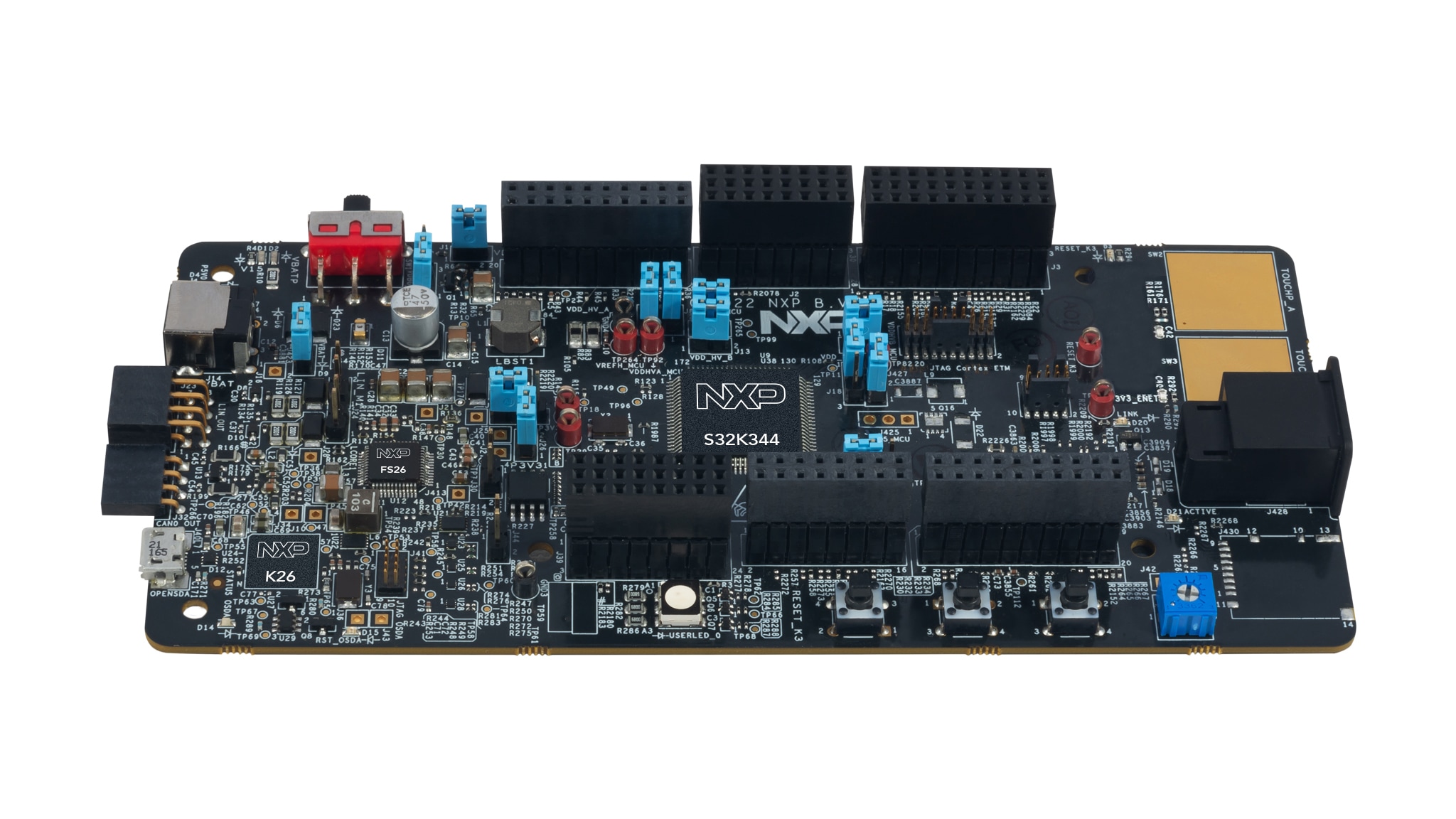

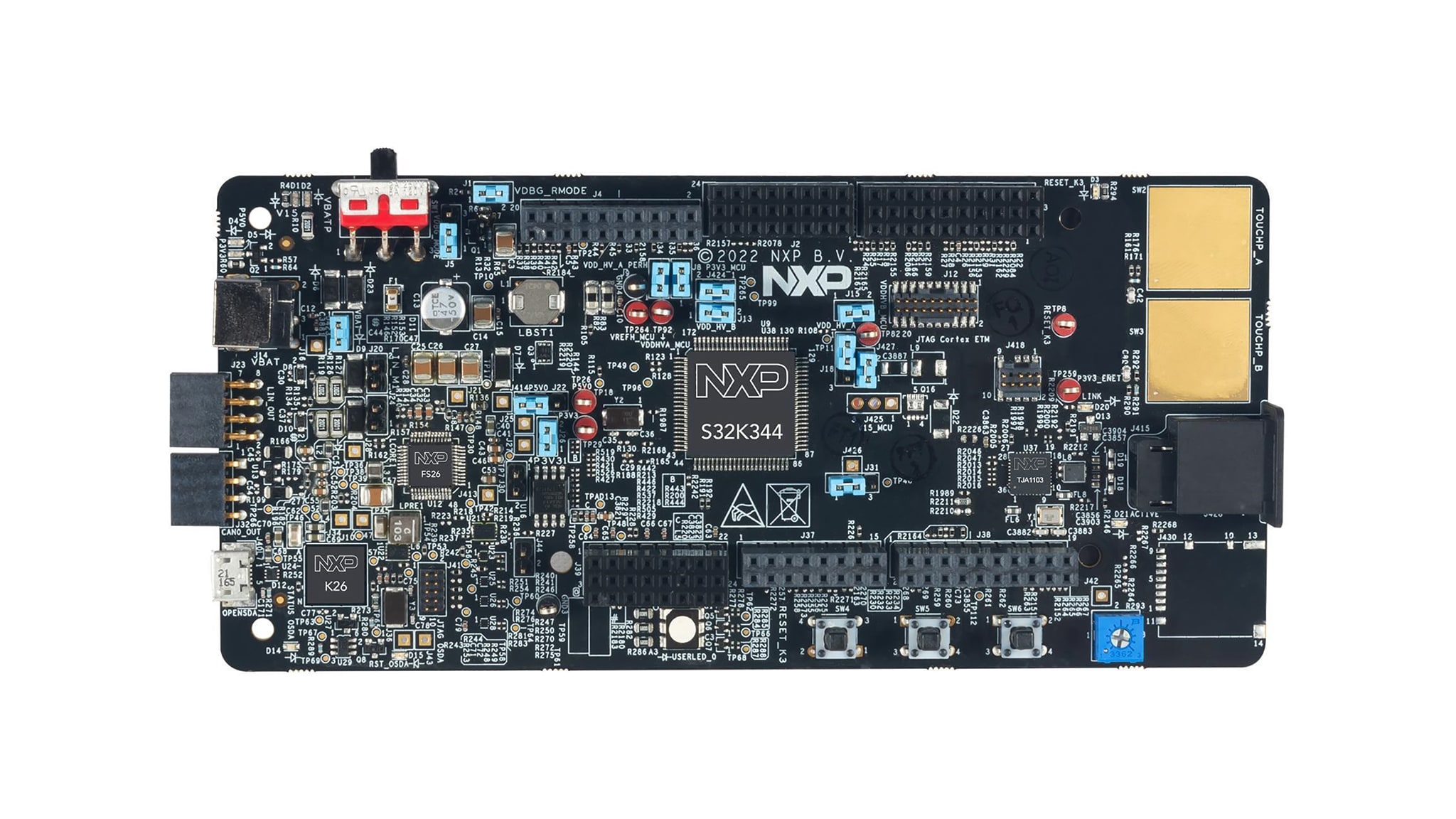

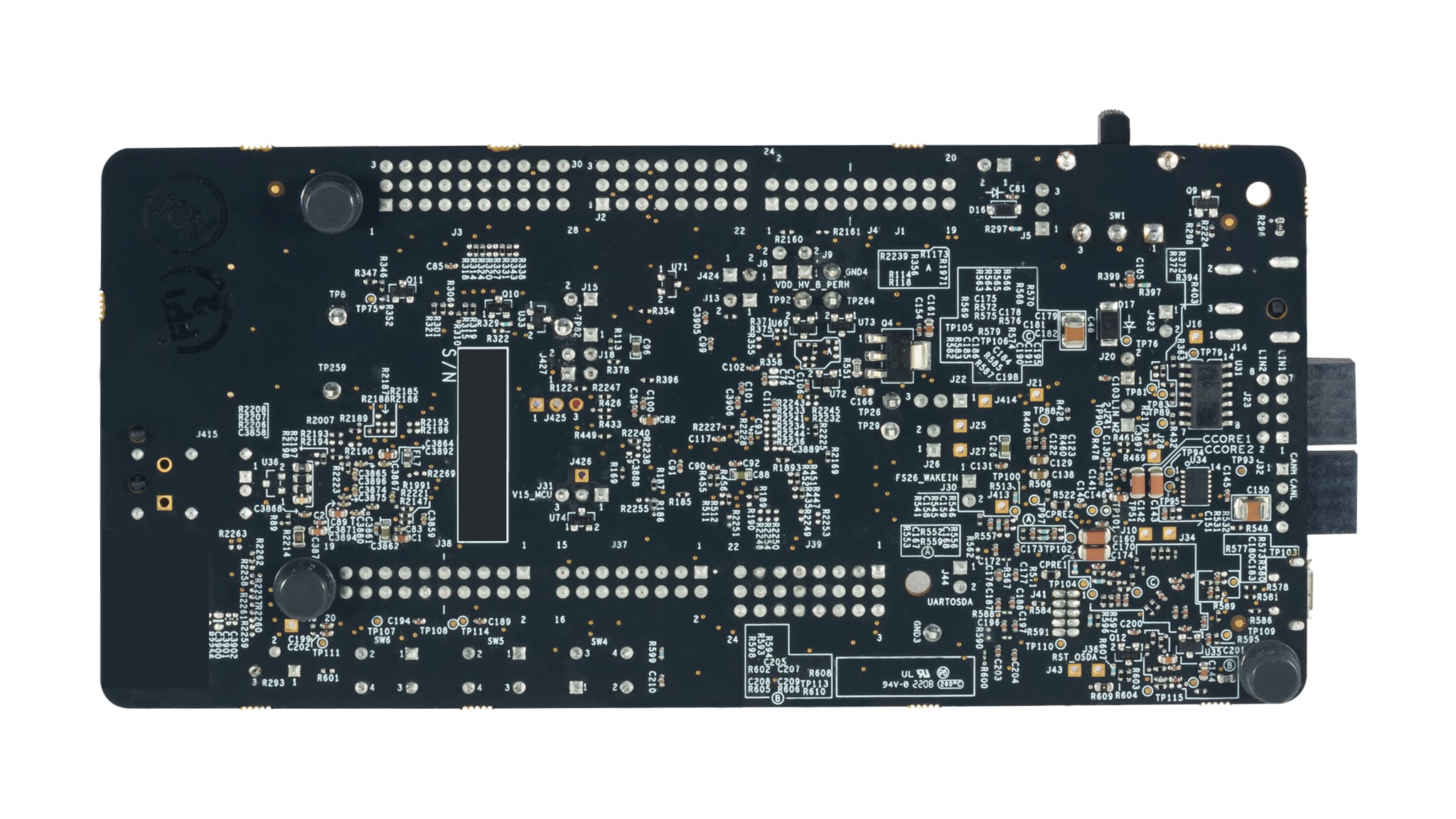

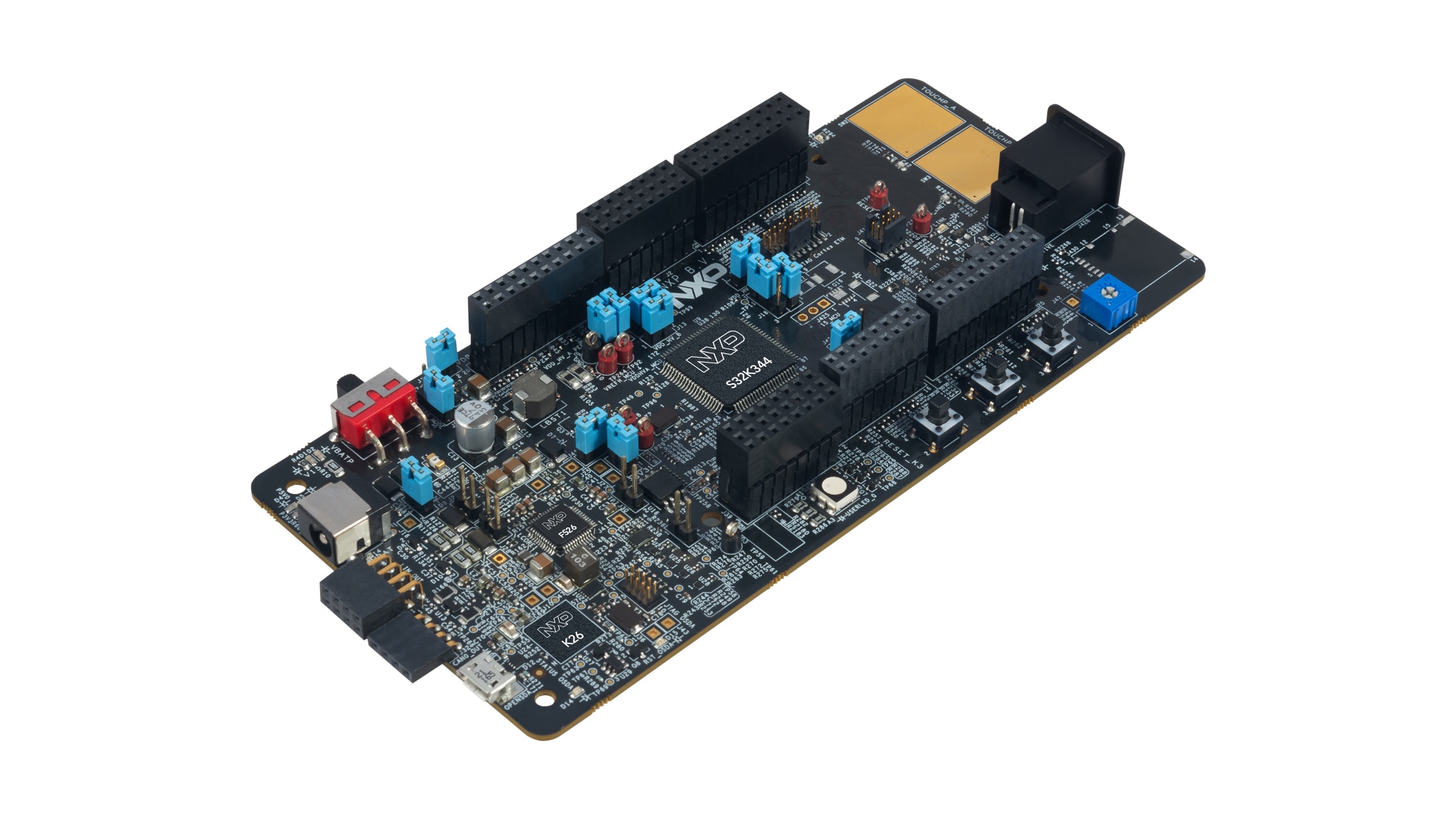

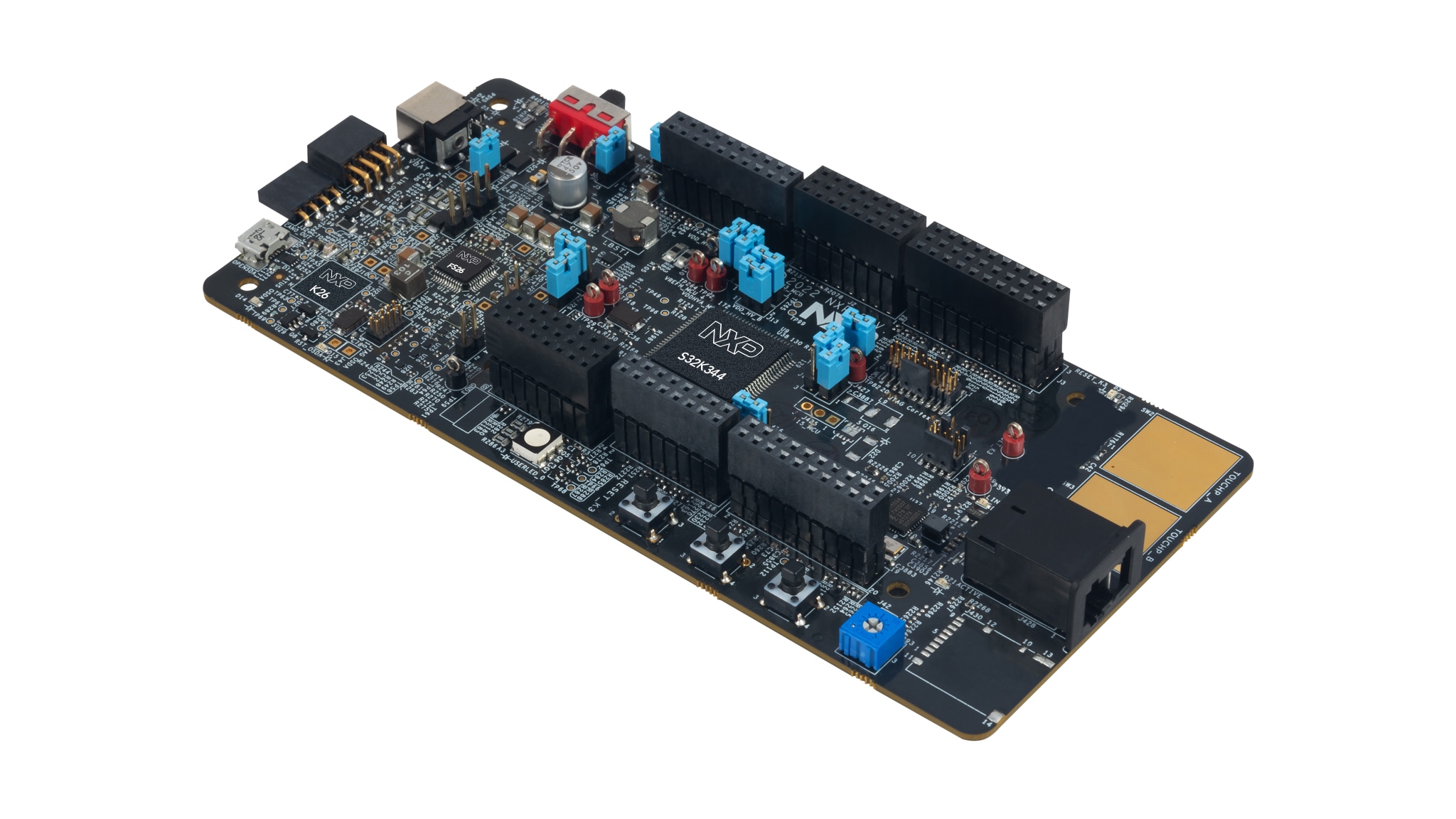

S32K3X4EVB-T172 Evaluation Board

S32K3 Familiy Overview

Get diagram PDF

Supported Devices

Power Management

System Basis Chips

FS26: Safety System Basis Chip with Low Power, for ASIL D Systems

Processors and Microcontrollers

S32K Auto General-Purpose MCUs

S32K3: S32K3 Microcontrollers for Automotive General Purpose

K2x / KS2x USB

K26_180: Kinetis^® K26-180 MHz, Dual High-Speed and Full-Speed USBs, 2MB Flash Microcontrollers (MCUs) based on Arm^® Cortex^®-M4 Core

Interfaces

Automotive LIN Solutions

TJA1022: Dual LIN 2.2A/SAE J2602 Transceiver

Secure CAN Transceivers

TJA1153: Secure HS-CAN Transceiver with Sleep Mode

Automotive Ethernet PHYs

TJA1103: TJA1103, ASIL B Compliant Automotive Ethernet 100BASE-T1 PHY Transceiver

Features

Hardware Features

Power supply switch
User RGB LED
2x user push-buttons
ADC rotary potentiometer
2x touch pad electrode

Software Features

Free-of-charge S32 Design Studio IDE (Eclipse, GCC and debugger) and S32 Config Tool (pins, clocks, peripherals, DDR) with third-party compilers and debuggers
Free-of-charge real-time drivers for AUTOSAR^® and non-AUTOSAR use and ASIL D compliant
Configuration tools for both AUTOSAR and non-AUTOSAR users
Free-of-charge security firmware: SHE+ compliant NXP supplied, designed for ISO 21434
S32 Safety Software Framework (SAF): Six fault detection and reaction libraries
Free of charge Safety Peripheral Drivers (SPD)
Structural Core Self-Test (SCST)
Free of charge Inter-Platform Communication Framework (IPCF): Middleware for multi-core, multi-OS communication in single- and multi-chip systems
Free of charge Model-Based Design Toolbox for MATLAB^®: NXP supplied plug-in for Simulink^® environment

Programming Debug Interfaces

On-board S32K3 debug interface
20-Pin Cortex debug + ETM connector
10-Pin JTAG connector for S32K3 debug interface
10-Pin JTAG connector for TJA1103 Ethernet PHY interface

Compatibility

Arduino UNO pint-out compatible with expansion “shield” support

Interfaces

On-board Secure HS-CAN
2x on-board LIN
Ethernet 100BASE-T1 physical layer
Micro USB debug interface with virtual COM port

Buy Options

Click to expand

S32K3X4EVB-T172
S32K3X4EVB-T172 Evaluation Board for Automotive General Purpose.
Kit Contains
- S32K3X4EVB-T172 evaluation board
- Cables and connectors not included

$395.00 USD
For a quantity of 1
- Availability: In Stock
- Inventory: 10
- Shipping: Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.

Documentation

Quick reference to our documentation types.

3 documents

^{User Guide}
Getting Started with the S32K3X4EVB-T172 Evaluation Board for Automotive General PurposeGetting Started

HTMLMar 9, 2023GS-S32K3X4EVB-T172English
^{User Manual}
S32K3X4EVB-T172 Evaluation Board Hardware User Manual

PDFRev A3Oct 7, 20243.1 MBS32K3X4EVB-T172-PACKREVB-UMEnglish
Sign in required
^Brochure
S32K3 Arm Cortex-M7-Based Automotive MCUs Brochure

PDFRev 7.0Jul 11, 20243.6 MBS32KBRA4English, 中文

Design Resources

Related Hardware

Quick reference to our board types.

1-5 of 10 hardware offerings

^{Evaluation and Development Boards}
S32K39/37/36 Electrification Microcontrollers Evaluation Board

S32K396-BGA-DC1Similar
^{Evaluation and Development Boards}
S32K312EVB-Q172 Evaluation Board for Automotive General PurposeActive

S32K312EVB-Q172Similar
^{Evaluation and Development Boards}
TJA1101 Automotive Ethernet Adapter for S32K148EVB and i.MX8Active

ADTJA1101-RMIISimilar
^{Evaluation and Development Boards}
S32K3X8EVB-Q289 Evaluation Board for Automotive General Purpose

S32K3X8EVB-Q289Similar
^{Evaluation and Development Boards}
S32K31XEVB-Q100 Evaluation Board for Automotive General PurposeActive

S32K31XEVB-Q100Similar
^{Evaluation and Development Boards}
S32K388EVB-Q289 Evaluation Board for Automotive General PurposeActive

S32K388EVB-Q289Similar
^{Evaluation and Development Boards}
Evaluation Board for MC33664ATL Isolated Network High-Speed Transceiver

FRDMDUALK3664EVBSimilar
^{Evaluation and Development Boards}
S32K344-WB Evaluation Board for Automotive General PurposeActive

S32K344-WBSimilar
^{Evaluation and Development Boards}

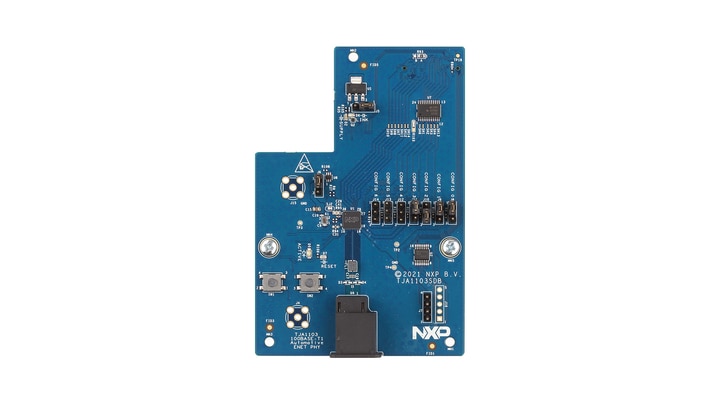

TJA1103 SABRE Development Board
