Evaluation Board for MC33664ATL Isolated Network High-Speed Transceiver

FRDMDUALK3664EVB

Roll over image to zoom in

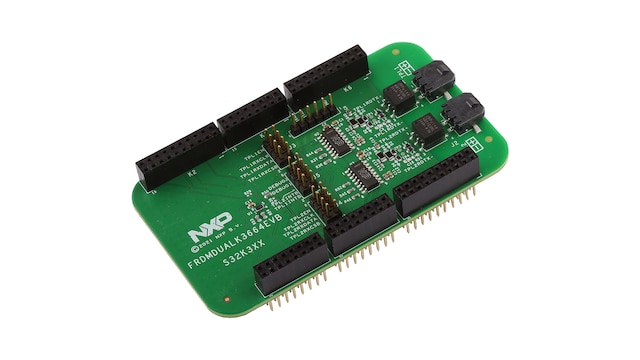

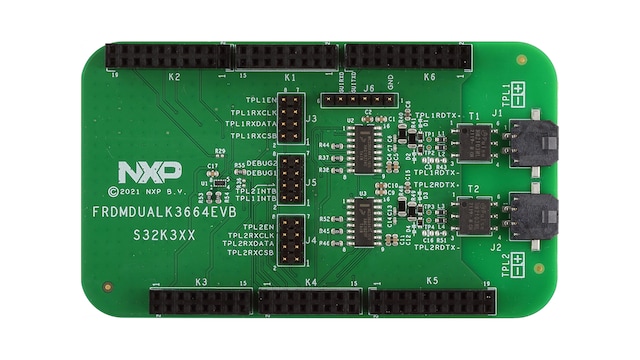

This evaluation board features the MC33664ATL, a transceiver physical layer transformer driver designed to interface a microcontroller to a high-speed isolated communication network. MCU SPI data is directly converted to pulse bits and transferred to the bus network.

Response messages use the same structure to send pulse bit information to the MC33664ATL, which is then converted to an SPI bit stream for MCU.

This EVB works with the MC3377x battery cell controllers. The MC3377x are automotive lithium-ion battery cell controller ICs for hybrid (HEV) and electric vehicle (EV) as well as industrial applications, such as energy storage systems (ESS) and uninterruptible power supply (UPS).

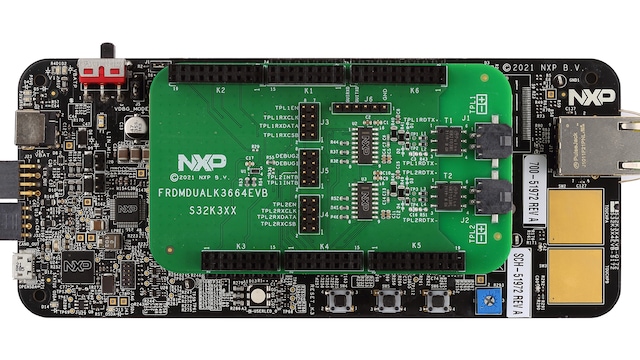

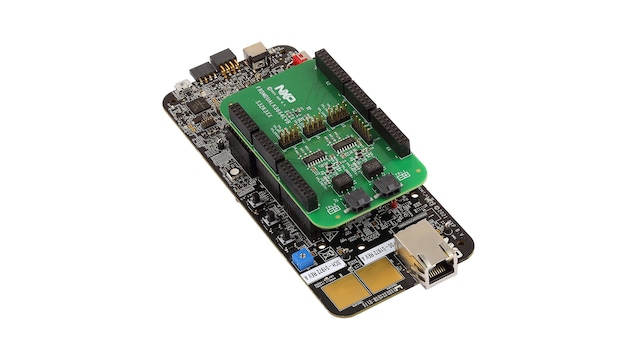

This board has been developed to be pin to pin compatible with the S32K3X4EVB-Q172 board.

Supported Devices

Power Management

Battery Communication ICs

  • MC33664: Isolated Network High-Speed Transceiver

Battery Cell Controllers

  • MC33772B: 6-Channel Li-Ion Battery Cell Controller IC
  • MC33771B: 14-Channel Li-Ion Battery Cell Controller IC
  • MC33771C: 14-Channel Li-Ion Battery Cell Controller IC

Features

Connectivity

  • Single chain, dual chain or loop-back operation
  • 2.0 Mbit/s isolated network communication rate
  • Dual SPI architecture for message confirmation

Power Management

  • 3.3 V and 5.0 V compatible logic thresholds
  • Low sleep mode current with automatic bus wake-up
  • Ultra-low radiated emissions

Buy Options

FRDMDUALK3664EVB-Image

Click to expand

  • FRDMDUALK3664EVB
    Active

  • Evaluation Board for MC33664ATL Isolated Network High-Speed Transceiver.

  • Kit Contains

    • Assembled and tested evaluation board/module in anti-static bag
    • 50 cm transformer physical layer (TPL) bus cable
    • Quick start guide
  • $302.22 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 17
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
BATT-TPLCABLE20-Image

Click to expand

  • BATT-TPLCABLE20
    Active

  • Electrical transport protocol link (ETPL), two-wire, twisted, 20 cm-long cable.

  • $14.38 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 20
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
BATT-TPLCABLE50-Image

Click to expand

  • BATT-TPLCABLE50
    Active

  • Electrical transport protocol link (ETPL), two-wire, twisted, 50 cm-long cable.

  • $14.38 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 20
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
