Evaluation Board for MC33772C with Isolated Daisy Chain Communication

KIT33772CTPLEVB

Roll over image to zoom in

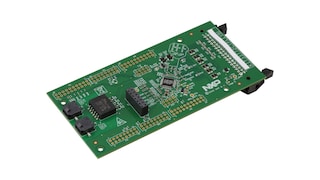

The KIT33772CTPLEVB evaluation board (EVB) features the MC33772C, a 6-channel battery cell controller for automotive and industrial Li-ion battery applications. It supports cell voltage measurement, passive cell balancing and GPIOs.

The kit is designed to support customer development and evaluation. The device can be connected to NXP 6-cell battery emulator or a customer Li-ion battery module with 3-6 cells in series. Up to 63 KIT33772CTPLEVB can be connected within a daisy chain. The battery cell information is transferred to the microcontroller unit (MCU) through an isolated differential communication bus using FRDMDUAL33664EVB.

Supported Devices

Power Management

Battery Cell Controllers

  • MC33772C: 6-Channel Li-Ion Battery Cell Controller IC

Features

Connectivity

  • Isolated daisy chain communication (transformer)
  • 34 pin connector for 6 cell battery connections and current sensing
  • 3 offboard temperature sensing inputs and 2 voltage measurement inputs

LED Indicator

  • VCOM status

MC33772C

  • 6 cell voltage measurements
  • 100 mA cell balancing
  • 2 onboard temperature sensors
  • Diagnostic functions

Buy Options

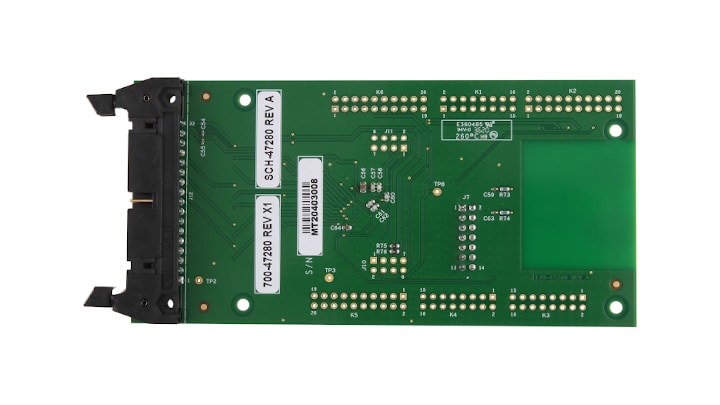

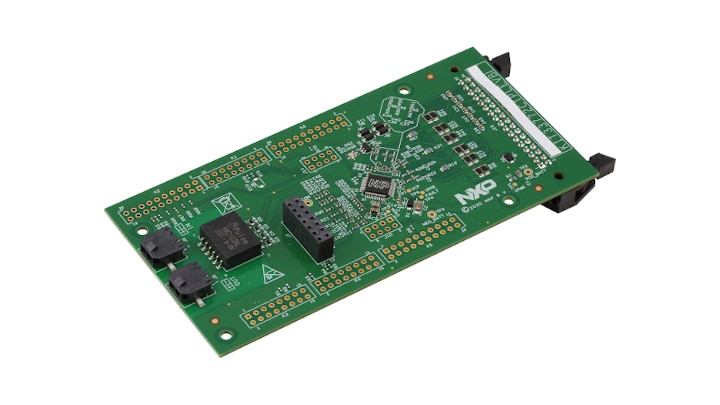

KIT33772CTPLEVB-Image

Click to expand

  • KIT33772CTPLEVB
    Active

  • Evaluation Board for MC33772C with Isolated Daisy Chain Communication.

  • Kit contains

    • Assembled and tested evaluation board/module in anti-static bag
    • Quick Start Guide
    • 20cm TPL bus cable
  • $195.04 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 3
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
BATT-TPLCABLE20-Image

Click to expand

  • BATT-TPLCABLE20
    Active

  • Electrical transport protocol link (ETPL), two-wire, twisted, 20 cm-long cable.

  • $14.38 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 19
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
BATT-TPLCABLE50-Image

Click to expand

  • BATT-TPLCABLE50
    Active

  • Electrical transport protocol link (ETPL), two-wire, twisted, 50 cm-long cable.

  • $14.38 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 20
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
