Computer to Electrical Transport Protocol Link (ETPL) Dongle

KIT-PC2TPLEVB

Roll over image to zoom in

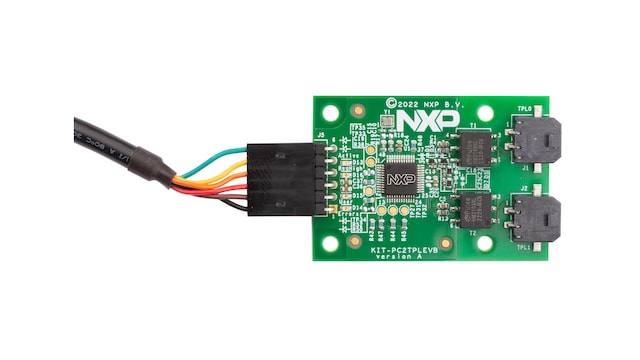

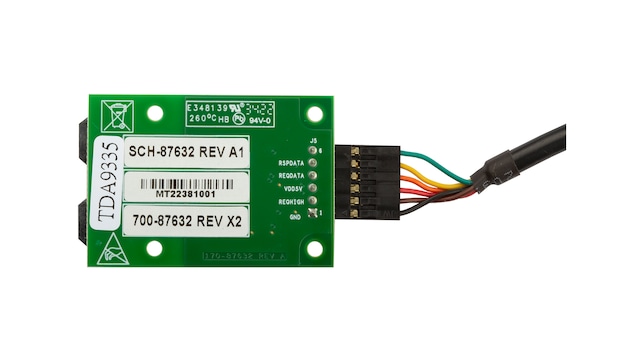

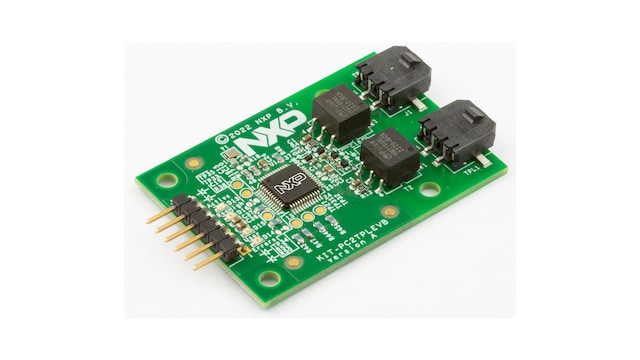

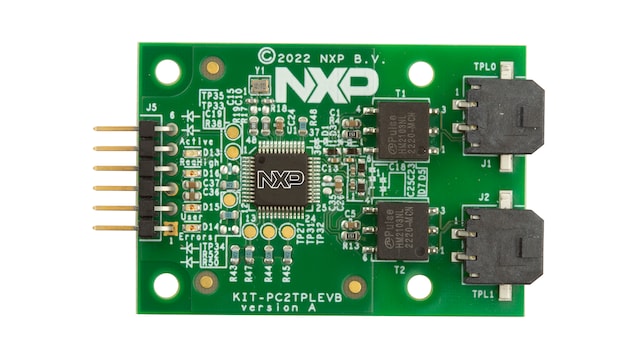

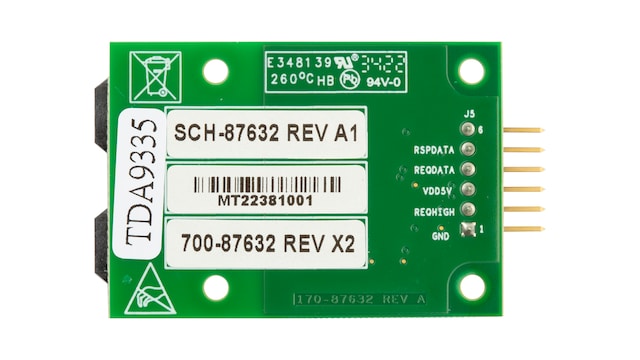

The KIT-PC2TPLEVB tool allows the user to interface electrical transport protocol link (ETPL) devices with software running on a PC.

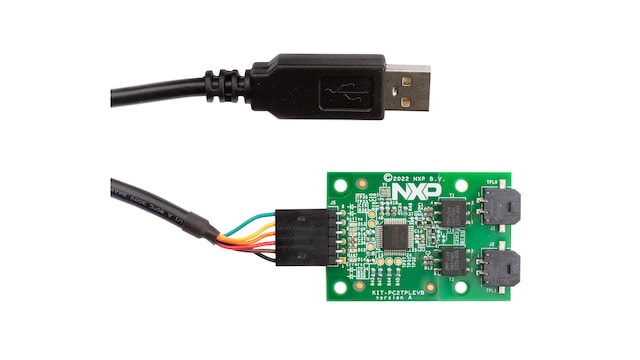

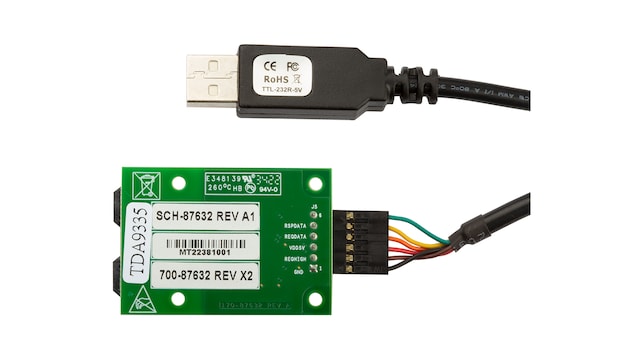

The kit includes a UART-to-USB translator cable interfacing with the UART-based MC33665A gateway and providing the 5 V supply, as well as an ETPL cable to connect to NXP BMS evaluation boards or customer boards with the NXP ETPL interface.

Block Diagram

KIT-PC2TPLEVB Computer to Electrical Transport Protocol Link (ETPL) Dongle

KIT-PC2TPL Computer to Electrical Transport Protocol Link (ETPL) Dongle
Get diagram PDF

Supported Devices

Power Management

Battery Communication ICs

  • MC33665A: General Purpose BMS Communication TPL Transceiver and CAN FD Gateway

Features

Connectivity

  • Direct control from a PC via USB connection (VCP)
    • VCP communication speed at 2 Mbit/s
  • Two galvanically isolated eTPL ports
    • Supports TPL3 and TPL2 protocol versions

Powering

  • Supply of the KIT-PC2TPLEVB from USB

Debug

  • Four status LEDs

Buy Options

KIT-PC2TPLEVB-Image

Click to expand

  • KIT-PC2TPLEVB
    Active

  • Computer to Electrical Transport Protocol Link (ETPL) Dongle.

  • Kit Contains:

    • KIT-PC2TPLEVB board
    • TTL-232R-5V, USB to RS232 cable (1.8 m)
    • ETPL cable, two-wire twisted pair (50 cm)
    • Quick start guide
  • $171.76 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 16
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
BATT-TPLCABLE20-Image

Click to expand

  • BATT-TPLCABLE20
    Active

  • Electrical transport protocol link (ETPL), two-wire, twisted, 20 cm-long cable.

  • $14.38 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 18
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
BATT-TPLCABLE50-Image

Click to expand

  • BATT-TPLCABLE50
    Active

  • Electrical transport protocol link (ETPL), two-wire, twisted, 50 cm-long cable.

  • $14.38 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 16
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
