MCSXTE2BK142
Active -
S32K142 BLDC/PMSM Development Board.
Sign in for a personalized NXP experience.

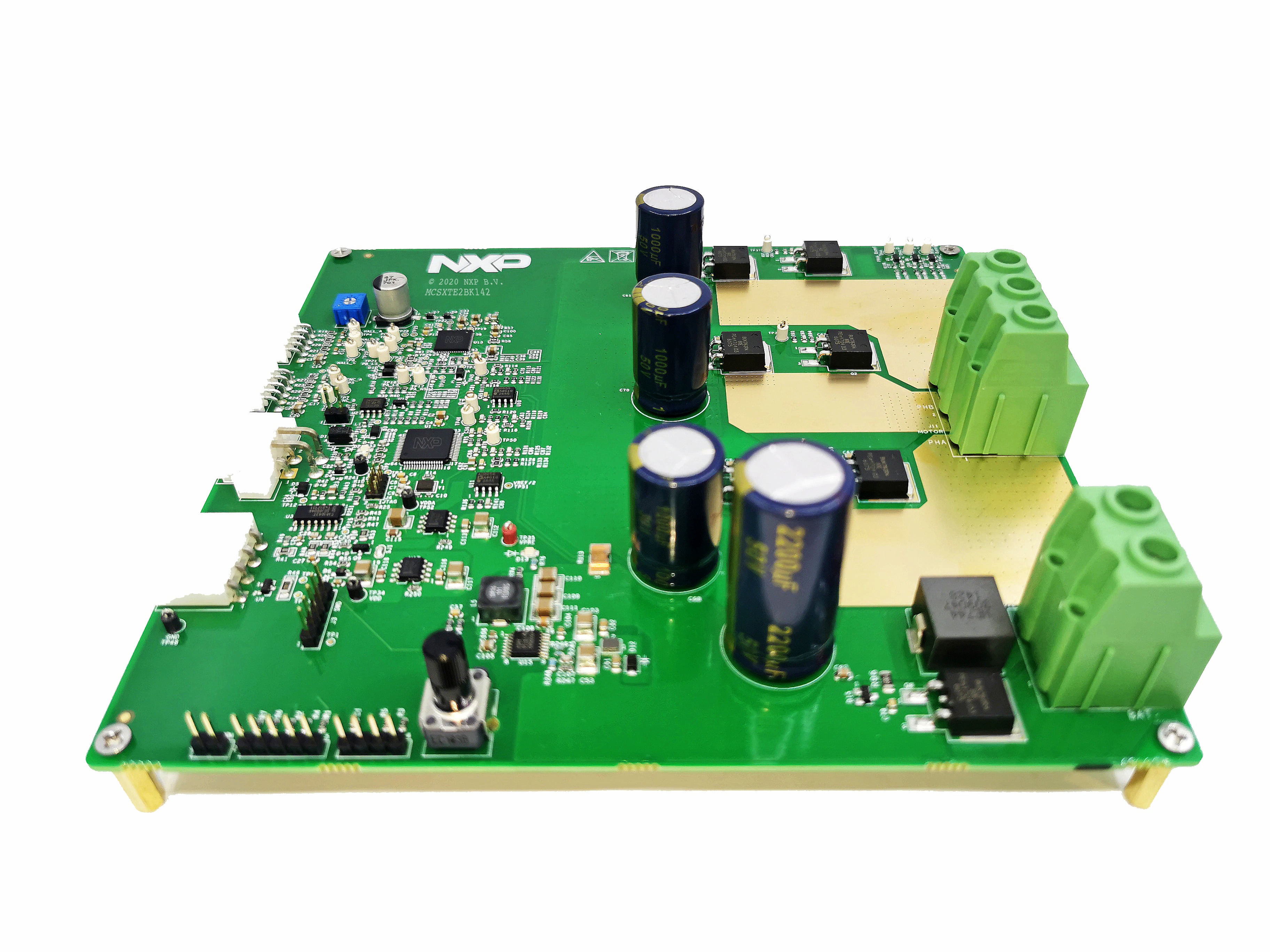

The MCSXTE2BK142 is a development board engineered for 3-phase Permanent Magnet (BLDC/PMSM) motor up to 800 W output at 24 V system or up to 400 W at 12 V system.

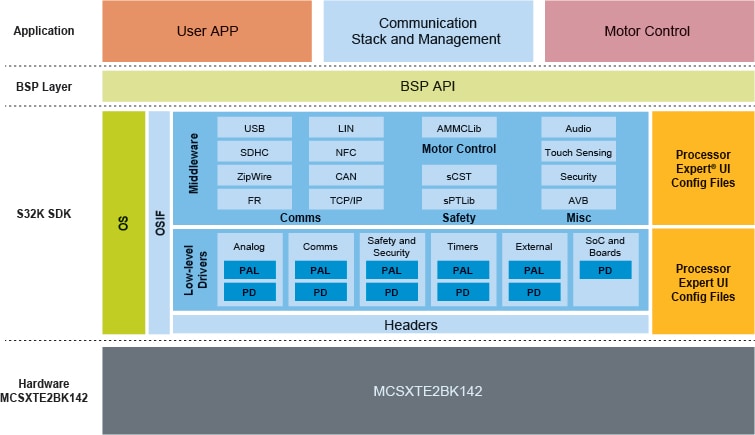

Based on the 32-bit Arm® Cortex®-M S32K142 MCU and the GD3000 gate driver IC for three-phase motor drive applications, the MCSXTE2BK142 offers an out-of-box easy-to-use 12/24 V motor control development board for general purpose automotive, together with rich software enablement and tools.
The MCSXTE2BK142 can be used as a quick prototype verification board for automotive motor control applications within 24 V and 800 W.
The MCSXTE2BK142 development board is replacing the S32K142-MC24 design.
S32K142 BLDC/PMSM Development Board.
