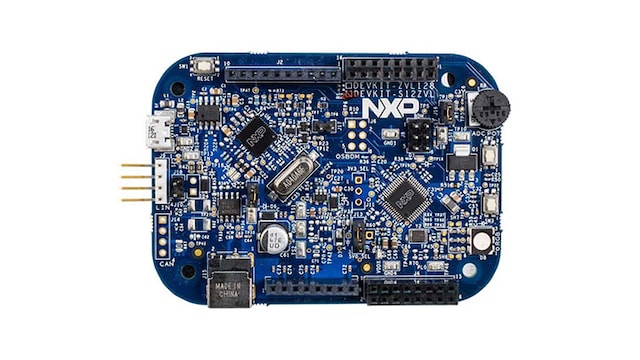

S12ZVL32 CAN and LIN/SCI Evaluation Board

DEVKIT-S12ZVL
Active

Roll over image to zoom in

The DEVKIT-S12ZVL board features the 9S12ZVL32 16-bit MagniV microcontroller for automotive and industrial applications such as relays and switches. The S12ZVL family features an S12Z core, scalable memory up to 16 KB of Flash, integrated high voltage VREG capable of 70mA 5V, 1 x SPI, 2 x SCI/LIN, 1 x IIC and is offered in 32 and 48 LQFP packages and supports -40 to 125 °C temperatures.

The DEVKIT-S12ZVL is a low-cost development kit with CAN, LIN/SCI connections and 10-bit ADC in a small form factor board compatible with the Arduino® UNO Rev3 pinout. It has expansion options using the DEVKIT-COMM board. The development kit features a 12 V power supply, USB powered OpenBDM debug, potentiometer, dual push buttons and RGB LED.

Product Details

Supported Devices

Processors and Microcontrollers

8-Bit S08 MCUs

  • S08JM: 8-bit USB Cost-Effective JM MCUs

S12 MagniV Mixed-Signal MCUs

  • S12ZVL: S12ZVL Mixed-Signal MCU for Automotive and Industrial LIN Applications

Features

Microcontroller

  • 9S12ZVL32 MCU

Connectivity

  • USB to Serial Interface
  • Supports CAN and LIN connectors

Debug

  • OSBDM onboard open source programming and debugging tool

User Components

  • RGB LED
  • ADC Potentiometer
  • Power LEDs indicators

    Note: 12 V (1 Amp) power supply is required for debugging and CAN/LIN communication, this is not included in the kit

Buy Options

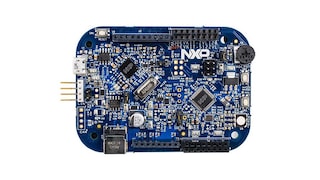

DEVKIT-S12ZVL-Image

Click to expand

  • DEVKIT-S12ZVL
    Active

  • DEVKIT for S12ZVL MagniV microcontroller.

    • DEVKIT-ZVL128 Development Board
  • For a quantity of 1
Order from distributors
