S12VR64 Relay-based Motor Control Development Board

DEVKIT-S12VR64 Active

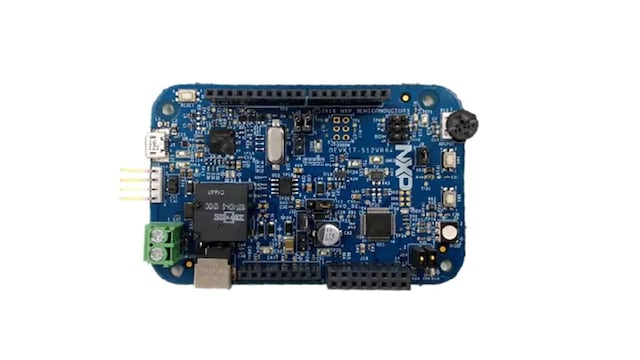

Roll over image to zoom in

The DEVKIT-S12VR64 board features the S12VR64 MagniV microcontroller ideal for space constrained relays, actuators and switches on LIN bus for automotive and industrial applications. The S12VR family features an S12 core, scalable memory up to 64 KB of Flash, integrated LIN physical layer, integrated 5 to 12 V voltage regulator, ADC, 2 x SCI, 1 x SPI, offered in 32 and 48 LQFP packages and supports -40 to 125 °C temperatures.

The DEVKIT-S12VR is a low-cost development kit with LIN connection and 2 Low and High-side drivers in a small form factor board compatible with the Arduino® UNO Rev3 pinout. It has expansion options using the DEVKIT-COMM board. The development kit features USB powered OpenBDM debug, potentiometer, dual push buttons and RGB LED.

Product Details

Supported Devices

Processors and Microcontrollers

8-Bit S08 MCUs

  • S08JM: 8-bit USB Cost-Effective JM MCUs

16-Bit S12 and S12X MCUs

  • S12G: Ultra-Reliable S12G General Purpose Automotive and Industrial Microcontrollers

S12 MagniV Mixed-Signal MCUs

  • S12VR: S12VR Mixed-Signal MCU for Automotive and Industrial Relay Based Motor Control

Features

Microcontroller

  • S12G128 MCU

Connectivity

  • USB to Serial Interface
  • Supports CAN and LIN connectors

Debug

  • OSBDM onboards open source programming and debugging tool
  • Power LEDs indicators
  • RGB LED
  • ADC Potentiometer
Note: 12 V (1 Amp) power supply is required for debugging and CAN/LIN communication, this is not included in the kit

Buy Options

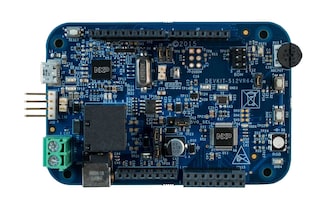

DEVKIT-S12VR64-Image

Click to expand

  • DEVKIT-S12VR64
    Active

  • DEVKIT plus for S12VR64 microcontroller.

    • DEVKIT-S12VR64 Evaluation Board
  • $69.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
