S12ZVC CAN Evaluation Board

VLG-MC9S12ZVC Preproduction

Roll over image to zoom in

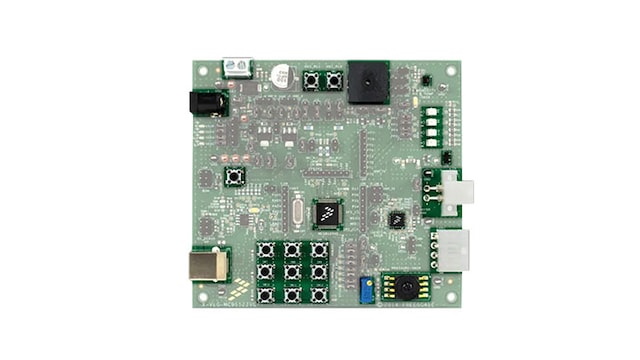

The VLG-MC9S12ZVC is a development board for the MagniV® S12ZVC Mixed Signal MCU and provides rapid prototyping for applications requiring high voltage functions and feature integration.

The VLG-MC9S12ZVC operates as a standalone debug tool and it includes several sensors such as accelerometer, pressure, temperature and humidity sensor.

Product Details

Supported Devices

Products

No Longer Manufactured

  • MMA69xxKQ: SPI ±3.5 g or ±5.0 g XY-Axis, Low-g, Digital Inertial Sensor

Processors and Microcontrollers

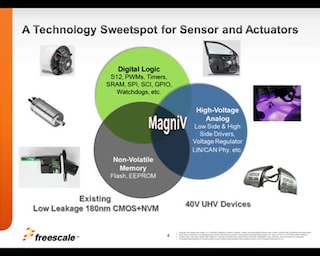

S12 MagniV Mixed-Signal MCUs

  • S12ZVC: S12ZVC Mixed-Signal MCU for Automotive and Industrial CAN Applications

Features

Microcontroller

  • S12ZVC in 64 LQFP

Connectivity

  • CAN and SENT communication

Debug

  • Integrated, open source BDM

Sensors

  • MMA6900 accelerometer
  • MPXA6 Pressure sensor
  • Temperature and humidity sensor

Components

  • Buzzer, potentiometer, four LEDs, and 3x3 pushbutton matrix
