S08LG32 Demonstration Board

DEMO9S08LG32

Roll over image to zoom in

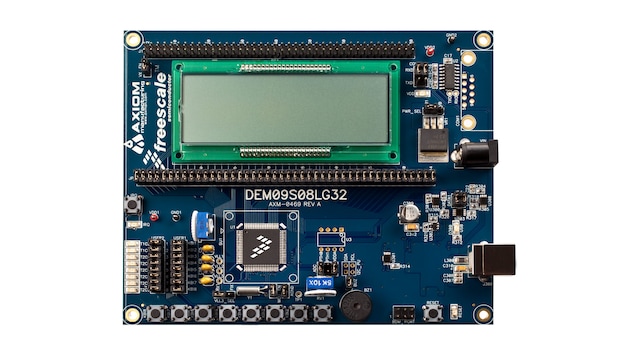

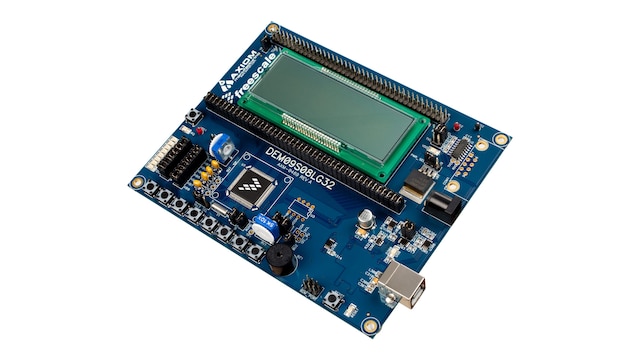

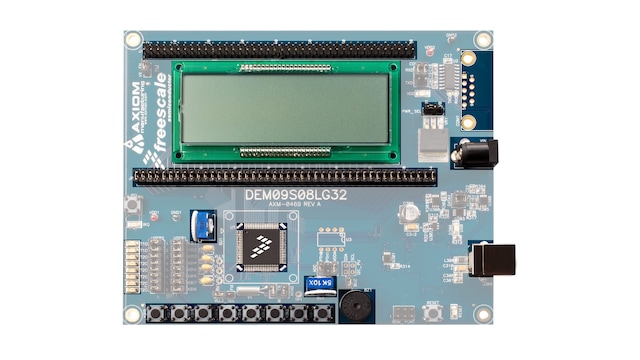

The DEMO9S08LG32 is a demonstration board for the MC9S08LG32 8-bit MCU.

  • Application development is quick and easy with the integrated USB-BDM, sample software tools and examples
  • An optional BDM_PORT port is also provided to allow use of a BDM_PORT cable
  • One 80-pin connector provides access to all IO signals on the target MCU

Product Details

Supported Devices

Processors and Microcontrollers

8-Bit S08 MCUs

  • S08LG: 8-bit Segment LCD S08LG32 and S08LG16 MCUs

Features

Microcontroller

  • MC9S08LG32, 80 LQFP

Connectivity

  • Integrated P&E USB-BDM
  • 5K ohm POT w /LP filter for ADC input
  • 80-pin MCU I/O pin header
  • 2.0 mm barrel connector
  • USB connector

Power Management

  • On-board +5 V regulator

Display

  • On-board 4x40 custom LCD glass

Components

  • 10 push switches; 8 user, 1 reset, 1 IRQ
  • 12 LED indicators; 8 user, VDD, IRQ, USB, and reset
