S12VR32 Relay-based Motor Control Evaluation Board

S12VR32EVB

Roll over image to zoom in

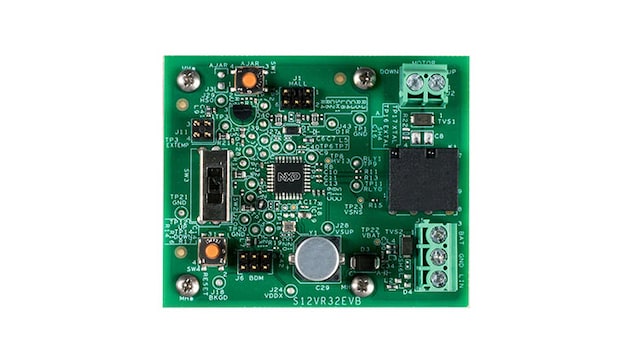

The S12VR32EVB is a development board for the S12 MagniV® S12VR32 16-bit MCUs for motor control relay based applications. The S12VR32 integrates an S12 CPU, a LIN physical interface, a 5V regulator system to supply the microcontroller and low-side drivers to control the relay.

The S12VR32EVB is an ultra-low-cost development platform that includes a relay, a hall sensor interface, an external 16 MHz oscillator, a switch button, access to all pins through test points and an onboard open source BDM.

Product Details

Features

Microcontroller

  • MC9S12VR32 MCU in 32 pins LQFP
  • BDM Connector
  • Hall Sensor Connector
    • Connector for external temperature sensor
    • Connector for LIN output
    • Connector for motor control

Buy Options

S12VR32EVB-Image

Click to expand

  • S12VR32EVB
    Active

  • S12VR32EVB.

    • S12VR32 Evaluation Board
  • $125.00 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
