S12VRP Relay-based Motor Control Evaluation Board

DEVKIT-S12VRP
Active

Roll over image to zoom in

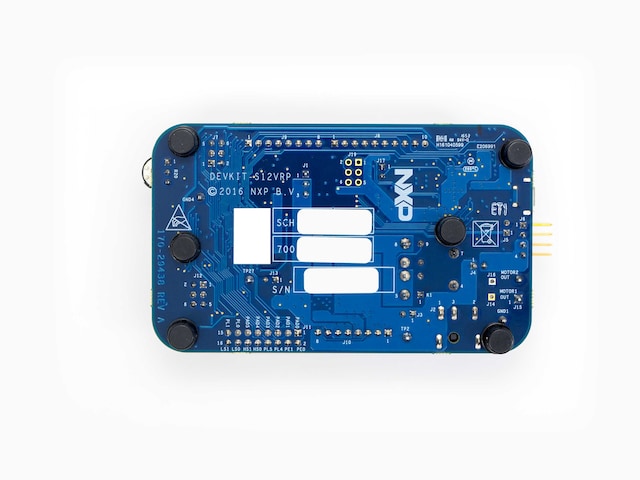

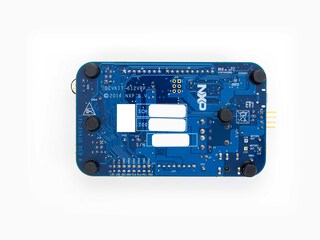

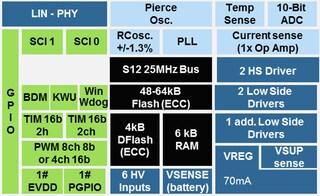

The DEVKIT-S12VRP features the S12VRP microcontroller, an automotive 16-bit MCU for motor control relay based applications. The S12VRP integrates an S12 CPU, a LIN physical interface, a current sense amplifier, a 5V regulator system to supply the microcontroller and Low-Side drivers to control the relay.

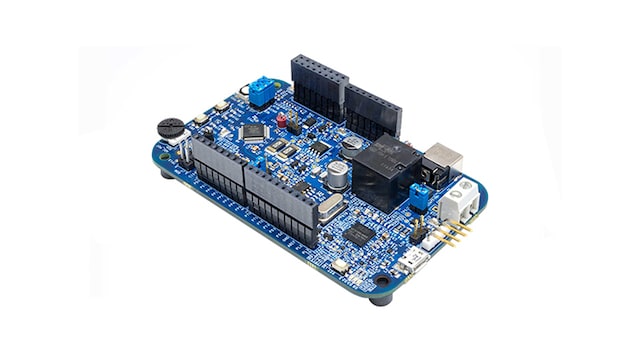

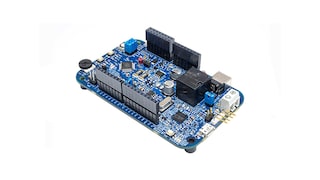

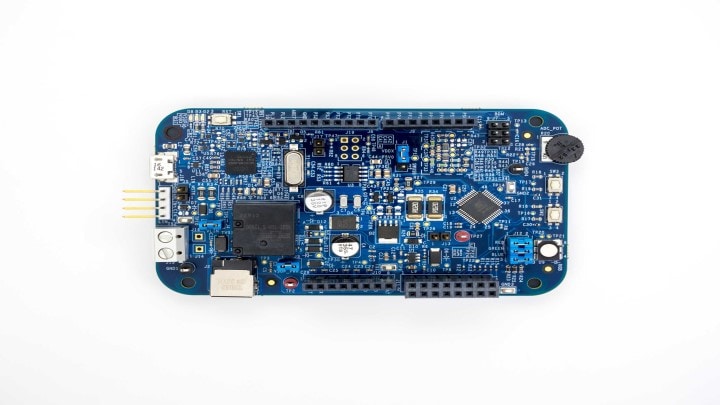

The DEVKIT-S12VRP is an ultra-low-cost development platform that includes a relay, switch buttons, an RGB LED, circuitry for a current sense amplifier, access to all pins and an onboard OSBDM.

Product Details

Features

Microcontroller

  • MC9S12VRP in 48 pins LQFP

Connectivity

  • BDM Connector
  • Connector for LIN Output
  • Connector for Motor Control

User components

  • Relay and shunt resistor
