S12ZVC CAN and LIN/SCI Evaluation Board

DEVKIT-S12ZVC Active

Roll over image to zoom in

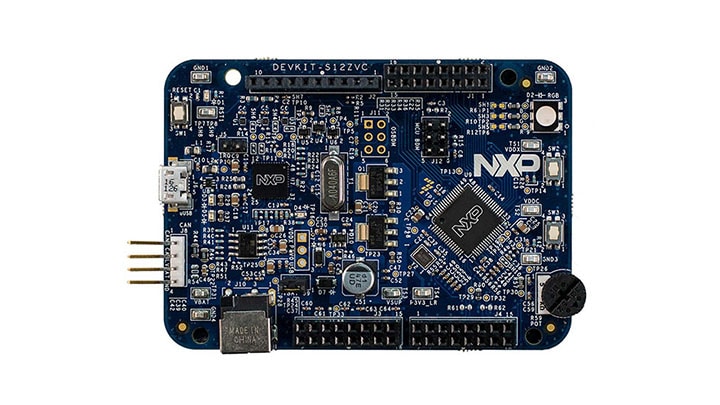

The DEVKIT-S12ZVC board features the 9S12ZVCA192 MagniV microcontroller for high-temperature automotive and industrial CAN node applications such as relays, actuators and switches. The S12ZVC family features an S12Z core, scalable memory up to 192 KB of Flash, integrated CAN physical layer, integrated 5 to 12 V voltage regulator, ADC, DAC, ACMP, 2 x SPI and SCI/LIN, 1 x IIC, offered in 48 and 64 LQFP packages and supports -40 to 150 °C temperatures.

The DEVKIT-S12ZVC is a low-cost development kit with CAN, LIN/SCI connections in a small form factor board compatible with the Arduino® Rev3 UNO pinout. It has expansion options using the DEVKIT-COMM board. The development kit features a 12 V power supply, USB powered OpenBDM debug, potentiometer, dual push buttons and RGB LED.

Product Details

Supported Devices

Processors and Microcontrollers

8-Bit S08 MCUs

  • S08JM: 8-bit USB Cost-Effective JM MCUs

S12 MagniV Mixed-Signal MCUs

  • S12ZVC: S12ZVC Mixed-Signal MCU for Automotive and Industrial CAN Applications

Features

Microcontroller

  • S12ZVCA192 MCU
  • 16 channel 12-bit ADC
  • 8-bit DAC (digital to analog converter)
  • 5 V Analog Comparator
  • -40 ºC to 150 ºC temperature

Connectivity

  • Integrated CAN physical layer
  • USB to Serial Interface
  • Supports CAN connector

Power Management

  • Integrated Voltage Regulator (VREG) for 3.5 to 20 V operating range
  • 12 V Power supply

Debug

  • OSBDM onboard open source programming and debugging tool

Components

  • ADC Potentiometer
  • Note: 12 V (1 Amp) power supply is required for debugging and CAN/LIN communication, this is not included in the kit

Buy Options

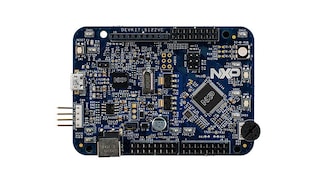

DEVKIT-S12ZVC-Image

Click to expand

  • DEVKIT-S12ZVC
    Active

  • DEVKIT for S12ZVC.

    • DEVKIT-S12ZVC Development Board
  • $129.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 2
    • Shipping: Normally ships 1-2 business days
ADD TO CART
