S12ZVL128 CAN and LIN Evaluation Board

DEVKIT-ZVL128 Active

Roll over image to zoom in

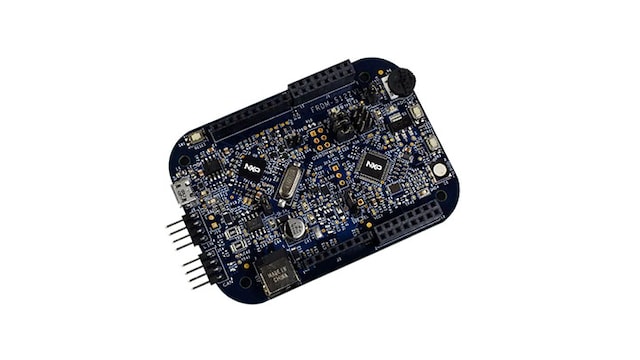

The DEVKIT-ZVL128 features the S12ZVLA128 16-bit automotive MCU with integrated S12Z CPU, LIN physical interface, CAN Interface [MSCAN], a 5 - 3.3 V internal low-dropout regulator which operates at vehicle battery level and a high voltage input pin.

The DEVKIT-ZVL128 is a low-cost development kit provides easy access to all MCU I/O’s in a small form factor board compatible with the Arduino® UNO Rev3 pinout. It has expansion options using the DEVKIT-COMM board. The development kit features a 12 V power supply, USB powered OpenBDM debug, potentiometer, dual push buttons and RGB LED.

Product Details

Supported Devices

Processors and Microcontrollers

S12 MagniV Mixed-Signal MCUs

  • S12ZVL: S12ZVL Mixed-Signal MCU for Automotive and Industrial LIN Applications

Features

Connectivity

  • USB to Serial Interface
  • LIN physical layer IN/OUT connector
  • CAN Interface [MSCAN]

Other Features

  • ADC Potentiometer
  • RGB LED
  • Power LEDs indicators
  • Note: 12 V (1 Amp) power supply is required for debugging and CAN/LIN communication, this is not included in the kit

Buy Options

DEVKIT-ZVL128-Image

Click to expand

  • DEVKIT-ZVL128
    Active

  • DEVKIT board for S12ZVL128.

    • DEVKIT-ZVL128 Development Board
  • $149.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 9
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
