MC9S12XF512 Evaluation Board

EVB9S12XF512E Active

Roll over image to zoom in

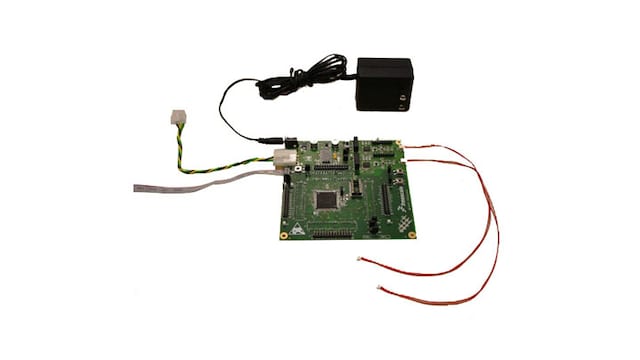

The EVB9S12XF512E is a full featured, ready to use evaluation system for the NXP® 16-bit MC9S12XF512 MCU, featuring an XGATE coprocessor, 512 KB flash memory and an embedded FlexRay™ controller. The EVB9S12XF512 takes advantage of the CodeWarrior® tool suite and NXP USB-BDM interface to help make your development process simple and quick.

Setting up a new FlexRay network?

Consider the S12XFSTARTERKITE. It contains two EVB9S12XF512E boards, plus all the hardware and tools you will need to get a FlexRay network up and running in under an hour.

Product Details

Supported Devices

Processors and Microcontrollers

16-Bit S12 and S12X MCUs

  • S12XF: S12XF Automotive and Industrial Microcontrollers (MCUs)

Features

Microcontroller

  • S12XF512MLM MCU
  • Selectable 4 MHz oscillator module (socketed) or a 4 MHz crystal

Connectivity

  • 2 x NXP TJA1080 FlexRay transceiver
  • 1 x NXP MC33742 system basic chip for hi-speed CAN communication
  • BDM connector for external in-circuit debugging
  • Header connectors with all microcontroller signals
  • One CAN connector with transceiver integrated in the MC33742
  • Two FlexRay connectors with two transceivers

Components

  • Eight user LEDs
  • Two push-buttons
  • Reset push button for the MCU and/or the SBC

Buy Options

EVB9S12XF512E-Image

Click to expand

  • For a quantity of 1
N true 0 TSPEVB9S12XF512Een 4 Fact Sheet Fact Sheet t523 1 Quick Reference Guide Quick Reference Guide t525 1 Supporting Information Supporting Information t531 1 User Guide User Guide t792 1 en_US 2 1 0 English This kit contains everything you need to get started as well as a description of the pin function of test points, jumpers and connectors. This document will also guide you through the steps necessary to download your own program using downloading tool and connection 1175644390148716596979 TSP 1.2 MB None None documents Y None 1175644390148716596979 /docs/en/user-guide/EVB9S12XF512E_UM.pdf 1201001 /docs/en/user-guide/EVB9S12XF512E_UM.pdf EVB9S12XF512E_UM N 2007-04-03 EVB9S12XF512E User Manual /docs/en/user-guide/EVB9S12XF512E_UM.pdf /docs/en/user-guide/EVB9S12XF512E_UM.pdf User Guide N Y 132339537837198660 2023-06-19 pdf en Jun 4, 2007 User Guide t792 User Guide User Guide N N EVB9S12XF512E User Manual 2 1 English This EVB will give you the opportunity to gain experience on the M9S12XF family. By following this guide, you should be running code on the EVB in around 30 minutes 1175644418594710035941 TSP 103.8 KB None None documents None 1175644418594710035941 /docs/en/quick-reference-guide/EVB9S12XF512E_QS.pdf 103808 /docs/en/quick-reference-guide/EVB9S12XF512E_QS.pdf EVB9S12XF512E_QS N 2007-04-03 EVB9S12XF512E Quick Start Guide /docs/en/quick-reference-guide/EVB9S12XF512E_QS.pdf /docs/en/quick-reference-guide/EVB9S12XF512E_QS.pdf Quick Reference Guide N Y 803735842453594974 2022-12-07 pdf en Sep 13, 2007 Quick Reference Guide t525 Quick Reference Guide Quick Reference Guide N N EVB9S12XF512E Quick Start Guide false en_US 0 false en Fact Sheet Fact Sheet 1 3 0 English 1176155255942701552709 TSP 151.8 KB None None documents None 1176155255942701552709 /docs/en/fact-sheet/S12XFFS.pdf 151758 /docs/en/fact-sheet/S12XFFS.pdf S12XFFS documents N 2007-04-09 S12XF Fact Sheet /docs/en/fact-sheet/S12XFFS.pdf /docs/en/fact-sheet/S12XFFS.pdf Fact Sheet N 736675474163315314 2022-12-07 pdf en Feb 25, 2008 736675474163315314 Fact Sheet N N S12XF Fact Sheet Supporting Information Supporting Information 1 4 0 English Complete list of materials for the EVB9S12XF512E 1180550551215721552140 TSP 82.9 KB None None documents None 1180550551215721552140 /docs/en/supporting-information/EVB9S12XF512E_BOM.xls 82944 /docs/en/supporting-information/EVB9S12XF512E_BOM.xls EVB9S12XF512E_BOM documents N 2007-05-30 Bill of materials of the EVB9S12XF512E /docs/en/supporting-information/EVB9S12XF512E_BOM.xls /docs/en/supporting-information/EVB9S12XF512E_BOM.xls Supporting Information N 371282830530968666 2022-12-07 xls en May 23, 2007 371282830530968666 Supporting Information N N Bill of materials of the EVB9S12XF512E false 0 EVB9S12XF512E downloads en true 0 Y TSP Fact Sheet 1 /docs/en/fact-sheet/S12XFFS.pdf 2007-04-09 1176155255942701552709 TSP 3 Feb 25, 2008 Fact Sheet None /docs/en/fact-sheet/S12XFFS.pdf English documents 151758 None 736675474163315314 2022-12-07 /docs/en/fact-sheet/S12XFFS.pdf S12XF Fact Sheet /docs/en/fact-sheet/S12XFFS.pdf documents 736675474163315314 Fact Sheet N en None N pdf 0 N S12XF Fact Sheet 151.8 KB S12XFFS N 1176155255942701552709 Quick Reference Guide 1 /docs/en/quick-reference-guide/EVB9S12XF512E_QS.pdf 2007-04-03 1175644418594710035941 TSP 2 Sep 13, 2007 Quick Reference Guide Quick Reference Guide This EVB will give you the opportunity to gain experience on the M9S12XF family. By following this guide, you should be running code on the EVB in around 30 minutes None /docs/en/quick-reference-guide/EVB9S12XF512E_QS.pdf English 103808 None Quick Reference Guide 2022-12-07 /docs/en/quick-reference-guide/EVB9S12XF512E_QS.pdf EVB9S12XF512E Quick Start Guide /docs/en/quick-reference-guide/EVB9S12XF512E_QS.pdf documents 803735842453594974 Quick Reference Guide N Y en None N t525 pdf 1 N EVB9S12XF512E Quick Start Guide 103.8 KB EVB9S12XF512E_QS N 1175644418594710035941 Supporting Information 1 /docs/en/supporting-information/EVB9S12XF512E_BOM.xls 2007-05-30 1180550551215721552140 TSP 4 May 23, 2007 Supporting Information Complete list of materials for the EVB9S12XF512E None /docs/en/supporting-information/EVB9S12XF512E_BOM.xls English documents 82944 None 371282830530968666 2022-12-07 /docs/en/supporting-information/EVB9S12XF512E_BOM.xls Bill of materials of the EVB9S12XF512E /docs/en/supporting-information/EVB9S12XF512E_BOM.xls documents 371282830530968666 Supporting Information N en None N xls 0 N Bill of materials of the EVB9S12XF512E 82.9 KB EVB9S12XF512E_BOM N 1180550551215721552140 User Guide 1 /docs/en/user-guide/EVB9S12XF512E_UM.pdf 2007-04-03 1175644390148716596979 TSP 1 Jun 4, 2007 User Guide User Guide This kit contains everything you need to get started as well as a description of the pin function of test points, jumpers and connectors. This document will also guide you through the steps necessary to download your own program using downloading tool and connection Y None /docs/en/user-guide/EVB9S12XF512E_UM.pdf English 1201001 None User Guide 2023-06-19 /docs/en/user-guide/EVB9S12XF512E_UM.pdf EVB9S12XF512E User Manual /docs/en/user-guide/EVB9S12XF512E_UM.pdf documents 132339537837198660 User Guide N Y en None N t792 pdf 0 N EVB9S12XF512E User Manual 1.2 MB EVB9S12XF512E_UM N 1175644390148716596979 true Y Tools
