MC9S12NE64 Family Demonstration Board

DEMO9S12NE64 Active

Roll over image to zoom in

The DEMO9S12NE64 kit contains everything you need to develop and evaluate the NXP® MC9S12NE64 family of applications. This comprehensive kit includes a demonstration board that uses the MC9S12NE64 on chip EMAC and EPHY to demonstrate typical MC9S12NE64 applications in which single-chip Ethernet is requirement.

To order your DEMO9S12NE64 demonstration board, click the orange BUY button in the Orderable Parts Information section located at the bottom of this page. Alternatively you may purchase the board from your local NXP distributor.

Product Details

Features

Microcontroller

  • Demonstration board with a 64K flash MC9S12NE64 MCU, clear enclosed plastic case, DB9 RS-232 serial port, switches, LEDs, potentiometer, MCU pin-breakout header, and Ethernet port

Connectivity

  • MC9S12NE64 Game and the source code

Power Management

  • Universal power supply included

Tools and OS Support

  • Learn the MC9S12NE64 MCU quickly with demonstration code including low-level Ethernet drives, analog-to-digital, timer, PWM, and keyboard interrupt routines
  • Modify demo code or develop new code for the MC9S12NE64 in assembly or C using free CodeWarrior® Development Suite for HCS12, Special Edition
  • Program and debug code using free CodeWarrior Development Studio for HCS12, Special Edition through DB9 serial port and included RS-232 serial cable or optional BDM Multilink

User Components

    Third-party TCP/IP stacks with complete documentation from leading third-party developers offering a range of software price points

  • Multiple software demonstrations using the TCP/IP stacks
  • Evaluation TCP/IP stacks including an open source stack

Buy Options

DEMO9S12NE64E-Image

Click to expand

  • DEMO9S12NE64E
    Active

  • 9S12NE64 DEMO BOARD.

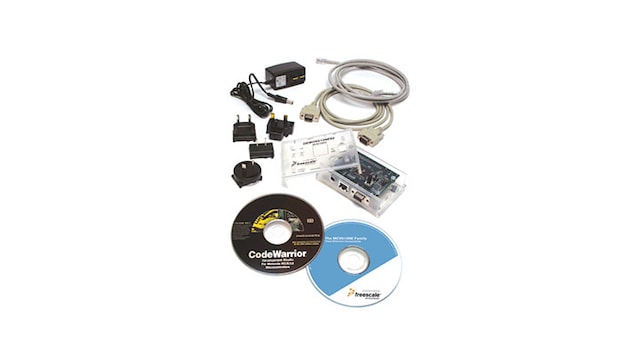

    • MC9S12NE64 demo board
    • DB9 serial cable
    • Crossover Ethernet Cable
    • MC9S12NE64 resource CD
    • 3rd PThird-party TCP/IP Stack Software
    • CodeWarrior Development Studio for HCS12 (30 day evaluation)
    • DEMO9S12NE64 Quick Start Guide
  • For a quantity of 1
Order from distributors
