S12G128 General Purpose Evaluation Board

DEVKIT-S12G128 Active

Roll over image to zoom in

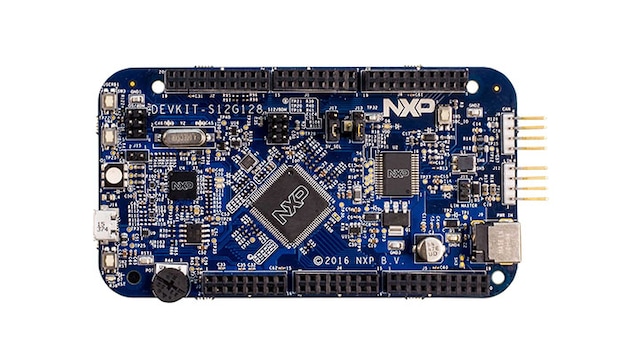

The DEVKIT-S12G128 board features the S12G128 16-bit microcontroller for automotive and industrial general purpose applications. The S12G family features an S12 core, scalable memory up to 240 KB of Flash, CAN, LIN, SPI and SCI communications, is offered in 64 and 100 pin packages and supports -40 to 125 °C temperatures.

The DEVKIT-S12G128 is a low-cost development kit with CAN, LIN and SCI connections and 10-bit ADC in a small form factor board compatible with the Arduino® UNO Rev3 pinout. It has expansion options using the DEVKIT-COMM boards. The development kit features a 12 V power supply, USB powered OpenBDM debug, potentiometer, dual push buttons and RGB LED.

Product Details

Supported Devices

Processors and Microcontrollers

8-Bit S08 MCUs

  • S08JM: 8-bit USB Cost-Effective JM MCUs

16-Bit S12 and S12X MCUs

  • S12G: Ultra-Reliable S12G General Purpose Automotive and Industrial Microcontrollers

Features

Microcontroller

  • S12G128 MCU

Connectivity

  • USB to Serial Interface
  • Supports CAN and LIN connectors

Debug

  • OSBDM onboards open source programming and debugging tool

User Components

  • RGB LED
  • ADC Potentiometer
  • Power LEDs indicators
  • Note: 12 V (1 Amp) power supply is required for debugging and CAN/LIN communication, this is not included in the kit

Buy Options

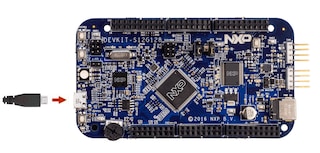

DEVKIT-S12G128-Image

Click to expand

  • DEVKIT-S12G128
    Active

  • DEVKIT for S12G128.

    • DEVKIT-S12G128 Evaluation Board
  • For a quantity of 1
Order from distributors
