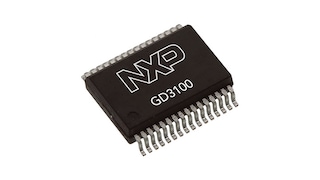

Advanced High Voltage Isolated Gate Driver for IGBT and SiC MOSFETs
Design Files
Receive the full breakdown. See the product footprint and more in the eCad file.
MPC5775B and MPC5775E Microcontrollers for Battery Management Systems (BMS) and Inverter Applications
The MPC5775B and MPC5775E microcontrollers target automotive and industrial battery management and inverter applications that require advanced performance, security, and ASIL-D support.
These MCUs are compatible with the MPC5777C device and offer customers an optimized feature set for the targeted applications. The MPC5775B and MPC5775E provide an ideal migration path for customers using MPC5xx, MPC55xx, MPC5644A and MPC5674F with eTPU timer and similar pin count options.
Product Details
Block Diagram
Choose a diagram:
Features
General
- 2 x Power Architecture z7 cores with 264 MHz on MPC5775E and 220 MHz on MPC5775B MCUs
- 1 x z7 core in lockstep with one of the main cores, with 264 MHz on MPC5775E and 220 MHz on MPC5775B MCU
- 4 MB Flash, 512 KB SRAM
- CSE hardware security module that supports SHE protocol specification and AES-128 encryption
- 10/100Mbps Ethernet module
- 2 x CAN FD modules and 4 x FlexCAN modules
- 3 x eTPU2 timer modules on MPC5775E MCU
- 4 x Sigma Delta modules on MPC5775E MCU
- Up to 70 ch eQADC and 32 ch eMIOS
Part numbers include: SPC5775BDK3MME2, SPC5775EDK3MME3.
MPC5775B-E Family Comparison Table
| Feature | MPC5775B | MPC5775E |
|---|---|---|
| Flash | 4 MB | 4 MB |
| RAM | 512 KB | 512 KB |
| Cores | 2x z7(1 in LS) | 2x z7(1 in LS) |
| Speed | 220 MHz | 264 MHz |
| Timer/PWM | 2x eMIOS, 32ch total | 2x eMIOS, 32ch total 3x eTPU, 96ch total |
| Analog | 2x eQADC, 40ch total | 4x eQADC, 70ch total 4x SD ADC, 20ch total |
| Ethernet | 1x FEC Module | 1x FEC Module |
| CAN | 2x MCAN-FD, 4x FlexCAN |
2x MCAN-FD, 4x FlexCAN |
| Security | Hardware CSE module | Hardware CSE module |
| Temp (Ta) | -40°C to 125°C | -40°C to 125°C |
| Package | 416 BGA | 416 BGA |
