UJA1168A Evaluation Board

UJA1168A-EVB Active

Roll over image to zoom in

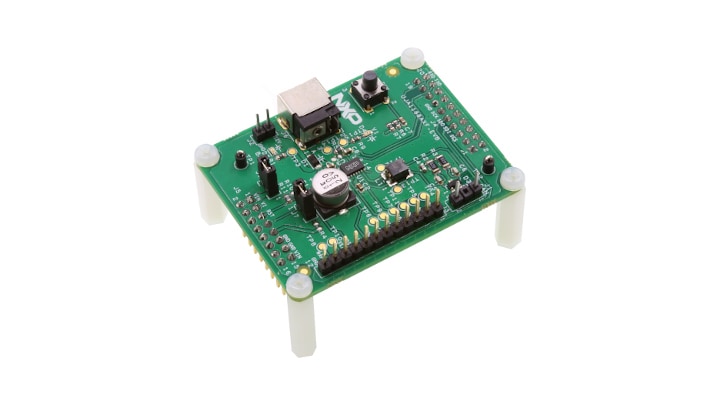

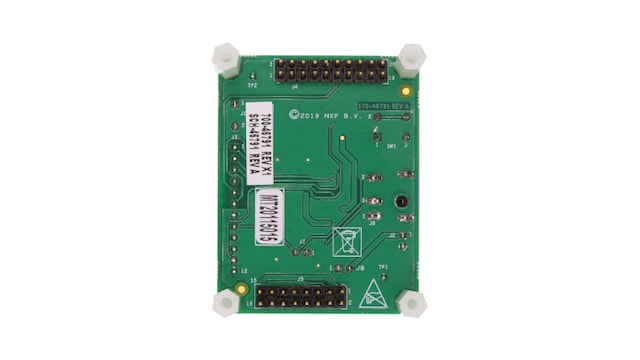

The UJA1168A-EVB Evaluation Board is a supportive tool to develop system solutions using the UJA1168A system basis chip. The board is pin compatible with the Arduino Uno pinout order and can be used in combination with any microcontroller board providing USB-to-SPI interfacing.

Supported Devices

Power Management

System Basis Chips

  • UJA1168ATK: Mini High-Speed CAN System Basis Chip for Partial Networking

Features

Features

  • Designed to facilitate the testing and evaluation of UJA116xA product features in a variety of microcontroller IO interface environment
  • Supporting Arduino connection with microcontroller board.
  • The board also provides several header rows (2.54 mm pitch) for connecting MCU interface and application signals
  • Board dimensions are 45.1 mm × 58.4 mm. Only components needed to support basic UJA116xA functionality are included
  • An external power supply of 12 V typ. must be connected to power-up the board

Buy Options

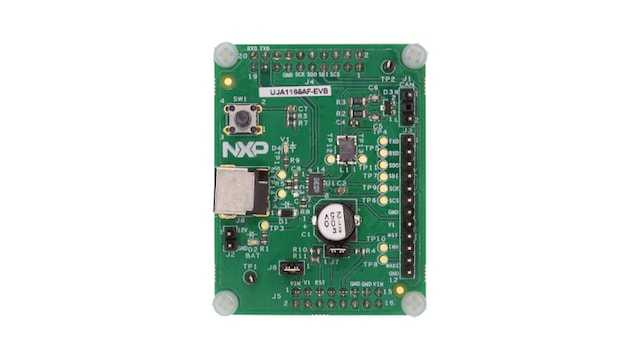

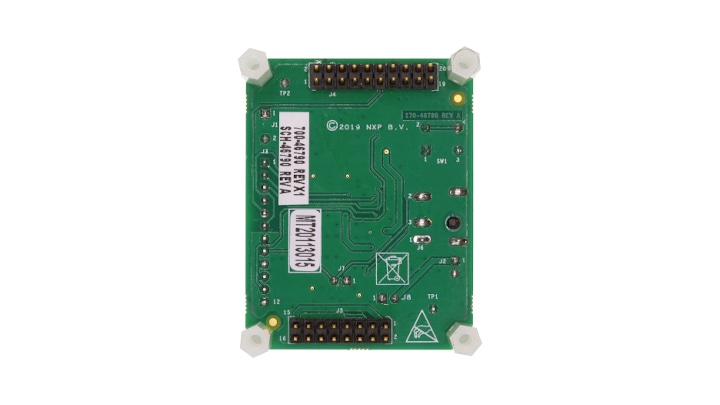

UJA1168AF-EVB-Image

Click to expand

  • UJA1168AF-EVB
    Active

  • UJA1168A Evaluation Board.

  • Kit contains:

    • UJA1168AF Evaluation Board
    • UJA116xA-EVB Manual
  • $81.40 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors

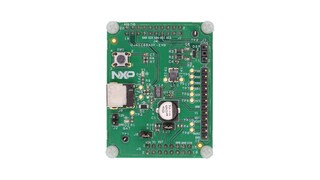

UJA1168AXF-EVB-Image

Click to expand

  • $81.40 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
