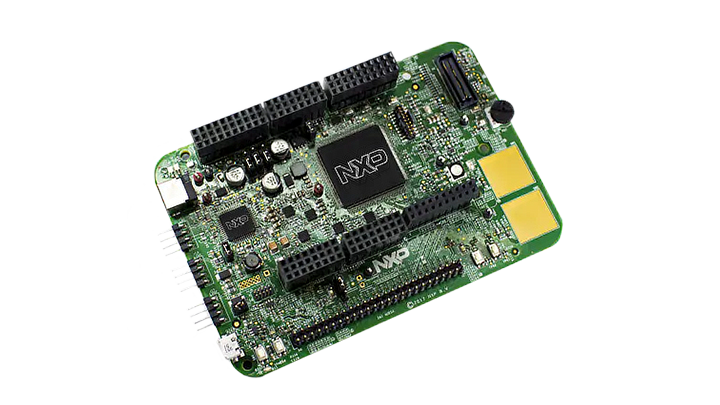

S32K148-Q176 Evaluation Board for Automotive General Purpose

S32K148EVB Active

Roll over image to zoom in

The S32K148-Q176 is a low-cost evaluation and development board for general-purpose industrial and automotive applications.

Based on the 32-bit Arm® Cortex®-M4F S32K14 MCU, the S32K148-Q176 offers a standard-based form factor compatible with the Arduino® UNO pin layout, providing a broad range of expansion board options for quick application prototyping and demonstration.

Supported Devices

Processors and Microcontrollers

S32K Auto General-Purpose MCUs

  • S32K1: S32K1 Microcontrollers for Automotive General Purpose

Power Management

System Basis Chips

  • UJA113xHW: Buck/Boost High-Speed CAN/Dual LIN System Basis Chip Family
  • UJA113xA: Buck/Boost High-Speed CAN/LIN System Basis Chip

Features

Compatibility

  • Arduino UNO pin-out compatible with expansion “shield” support

Adapters

  • OpenSDA: Serial and Debug Adapter with support for several industry-standard debug interfaces

Size and Price

  • Small form factor
  • Low cost

Compatibility

  • Easy access to the MCU I/O header pins for prototyping
  • Arduino UNO pint-out compatible with expansion “shield” support

Memory

  • Integrated 8 MB QSPI NOR MX25L6433F Flash memory
  • External flash memory MX25L6433F on board

Interfaces

  • On-board connectivity for CAN, LIN, UART/SCI
  • Ethernet connector compatible with different ethernet daughter cards

Power

  • Flexible power supply options: micro USB or external 12 V supply
  • Voltage supply options for 3.3 V or 5 V

Components

  • 2 x touchpads
  • 1 x potentiometer for precise voltage and analog measurement
  • 1 x RGB LED
  • 2 x push buttons

Buy Options

S32K148EVB-Q176-Image

Click to expand

  • S32K148EVB-Q176
    Active

  • S32K148 Evaluation Board for General Purpose.

  • Kit Contains

    • S32K148EVB-Q176 Evaluation Board
  • $199.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 8
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
S32K148EVB-KIT-Image

Click to expand

  • S32K148EVB-KIT
    Active

  • S32K148EVB-Q176 with ADTJA1101-RMII Ethernet Adapter.

  • Kit Contains

    • S32K148 Evaluation Board
    • TJA1101 automotive Ethernet adapter
  • $279.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 1
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
