Evaluation Board for SJA1124 SPI to Quad-LIN Bridge

SJA1124EVB Active

Roll over image to zoom in

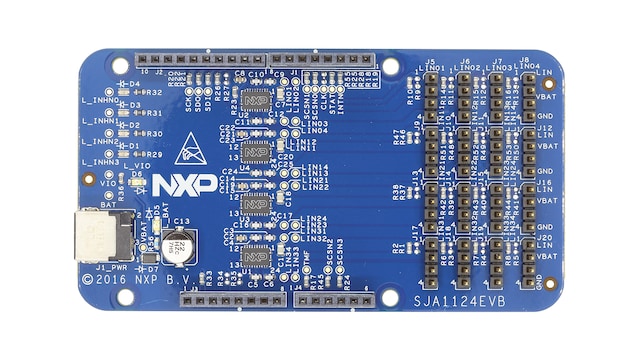

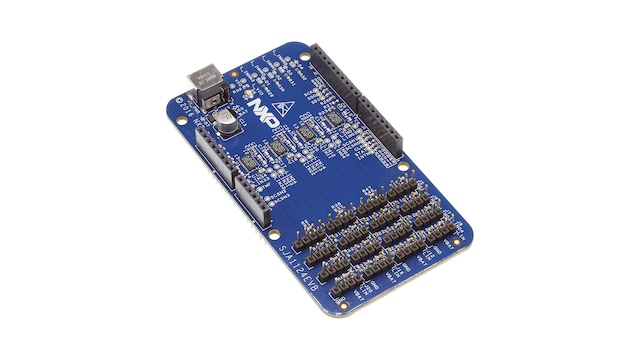

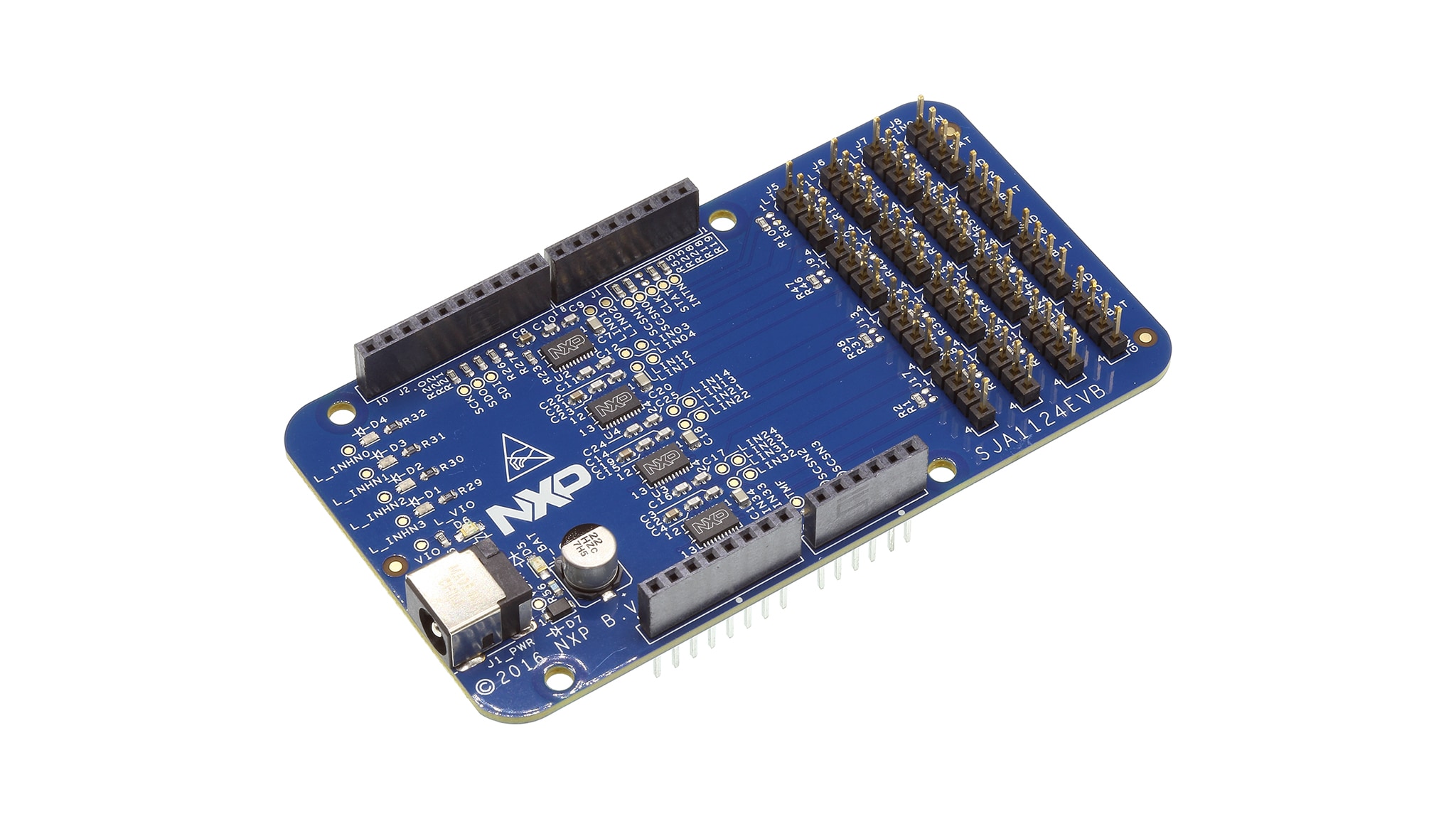

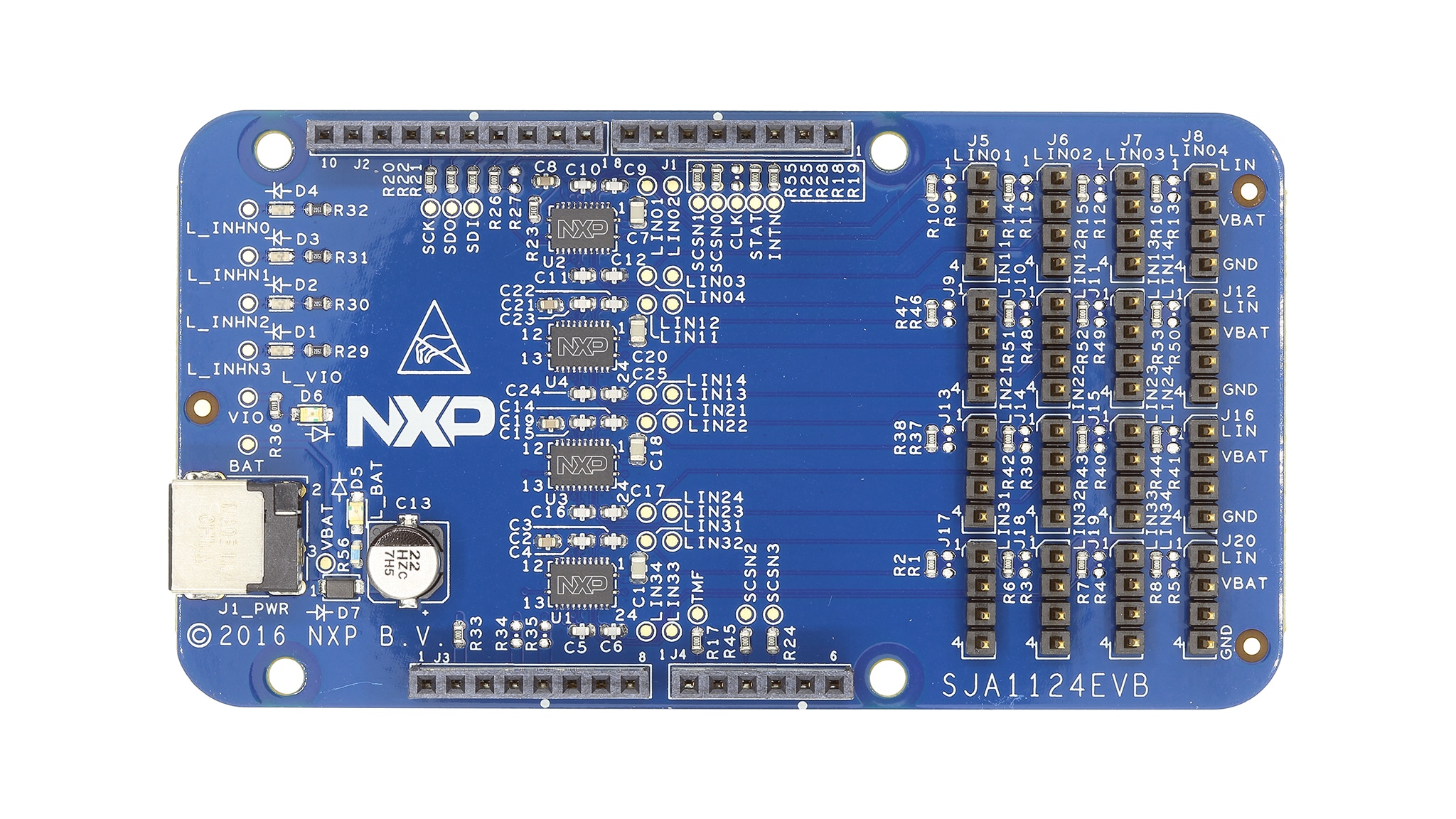

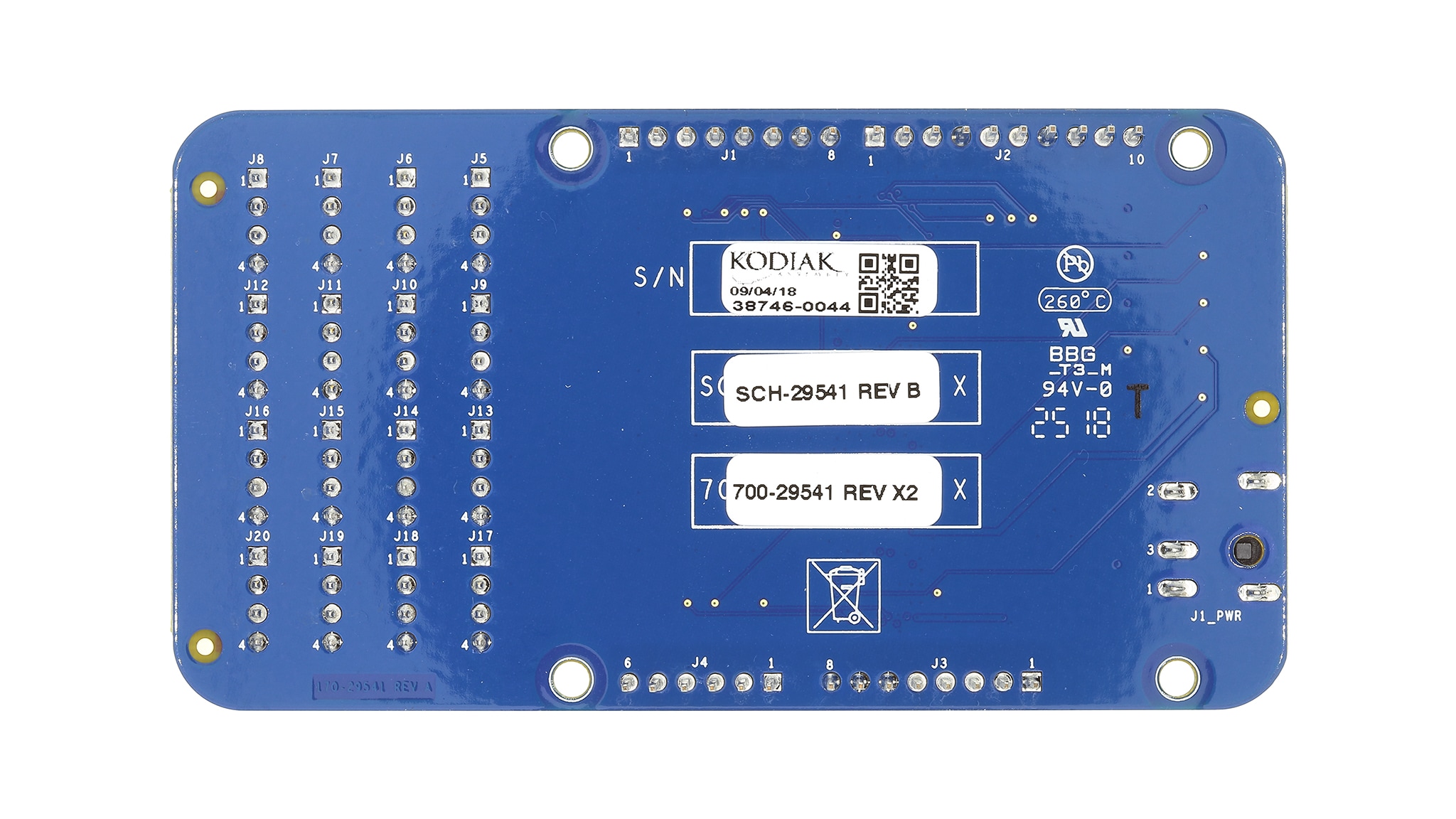

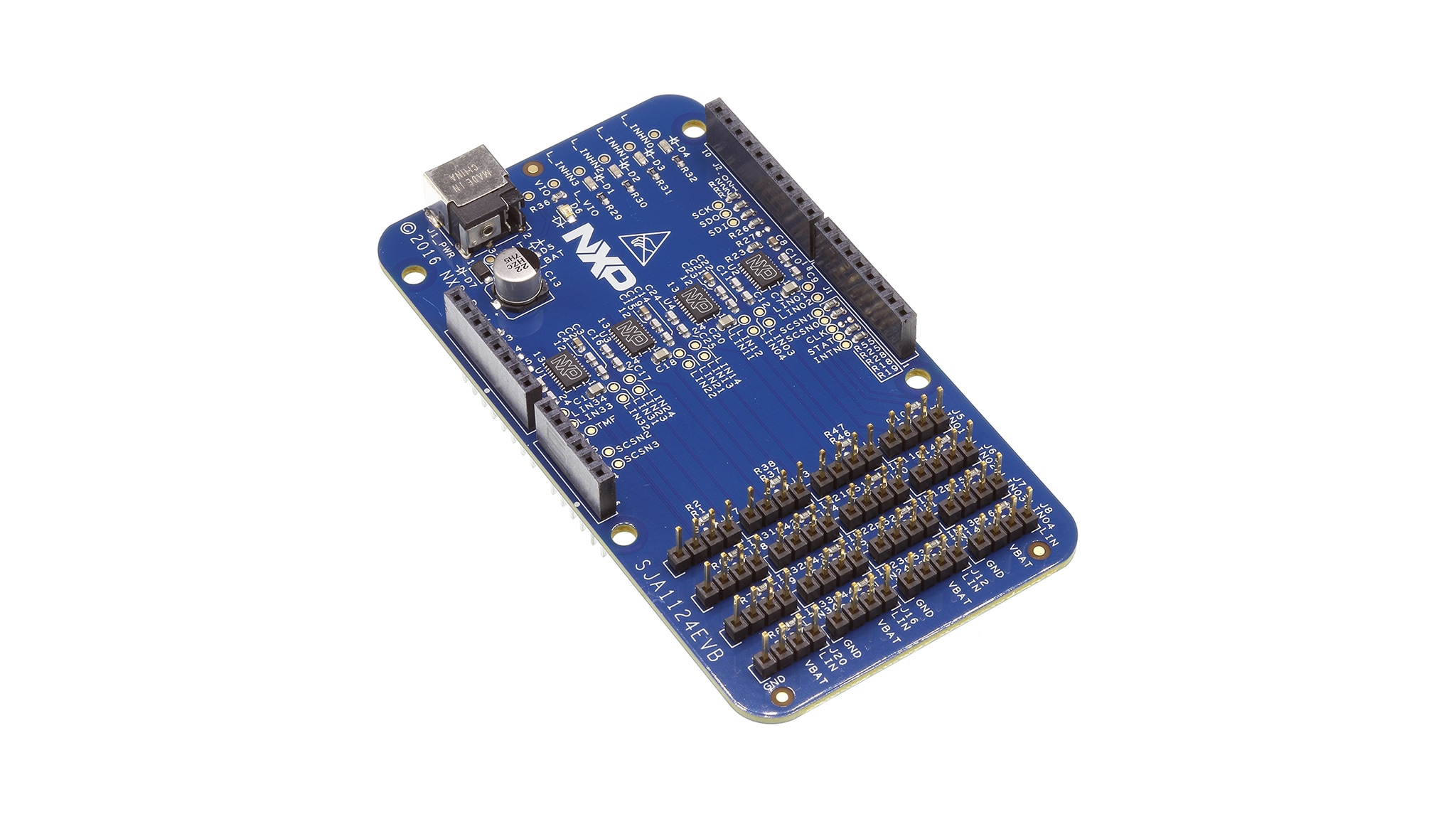

The SJA1124EVB is an evaluation board for the SJA1124 SPI to QuadLIN Bridge as a hardware plug-in board (shield) with standards-based form factor compatible with Arduino® UNO pin layout, that enables rapid prototyping with a wide range of microcontroller development boards.

For easy LIN channel extension to the available microcontroller, this board features 16 LIN leader channels. Microcontroller board compatibility to:

  • S32K14xEVB

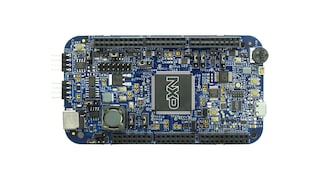

  • DEVKIT-MPC574x
  • DEVKIT-S12x

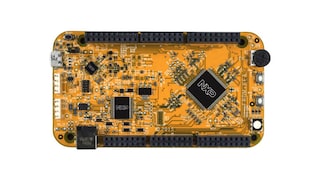

  • FRDM-KEAx
  • etc.

Supported Devices

Interfaces

Automotive LIN Solutions

  • SJA1124: Quad LIN Commander Transceiver with LIN Commander Controller

Features

General Specifications

  • 4 x SJA1124A

Connectivity

  • SPI to LIN bridge
  • Supports 16 x LIN leader channel connectors
  • Arduino® UNO footprint-compatible shield
  • Easy access to I/O header pins

Size

  • Small form factor

Components

  • Power LED indicator
  • VIO LED indicator
  • INHN LED indicators

Buy Options

SJA1124EVB-Image

Click to expand

  • SJA1124EVB
    Active

  • Evaluation Board for SJA1124 SPI to Quad-LIN Bridge.

    • SJA1124EVB
    • Connector for power input/output
  • $30.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 30
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
