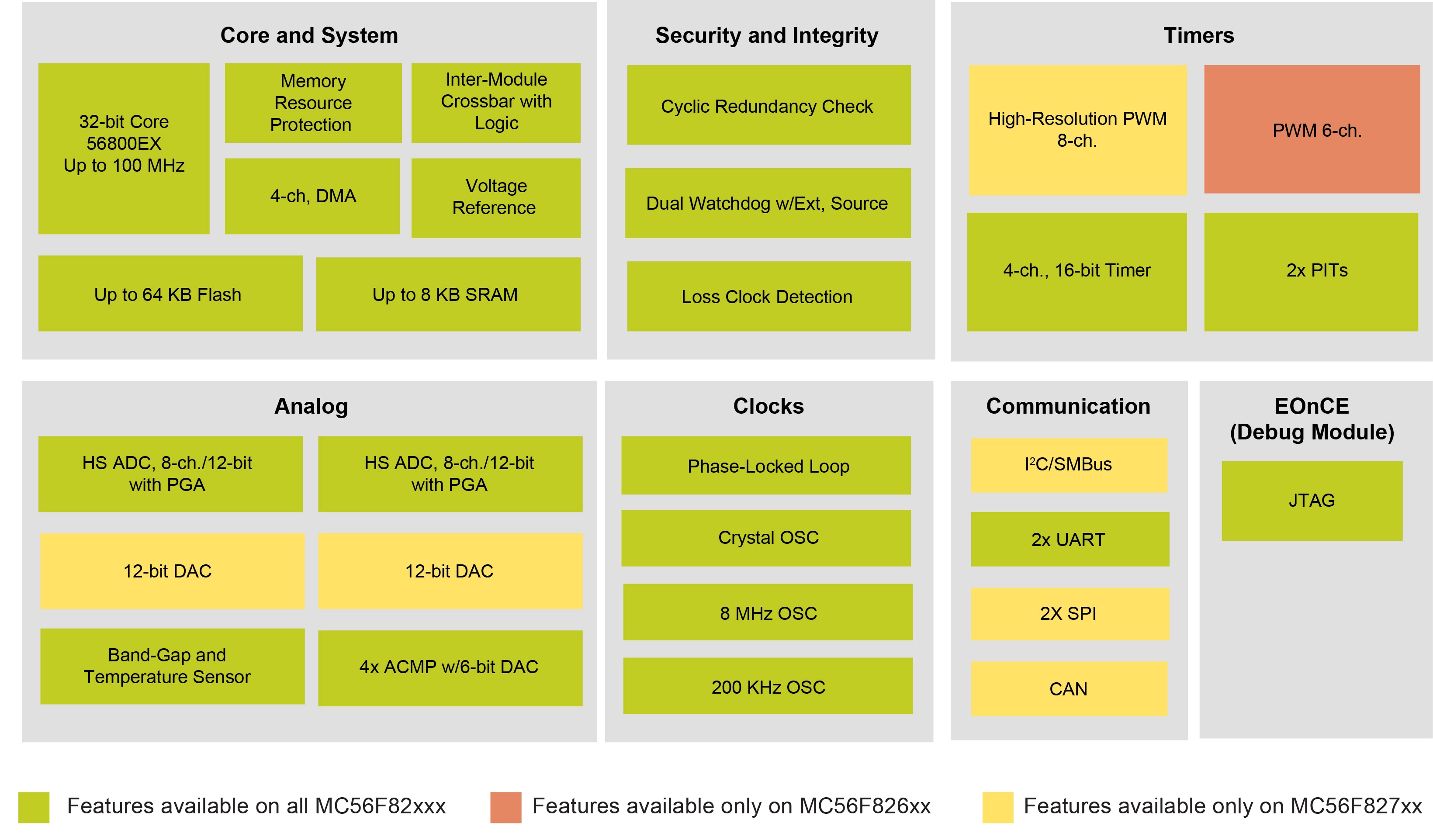

MC56F826xx and MC56F827xx Digital Signal Controllers
The MC56F82xxx DSP MCU family offers outstanding power consumption at runtime with exceptional performance, precision, and control.
- Targets high-efficiency digital power conversion (MC56F827xx) and advanced motor control (MC56F826xx) applications
- Delivers half the power with twice the performance for energy-efficient applications
- Reduces costs through higher switching frequencies
- Increases system safety by restricting user code from accessing key memory locations and peripherals reserved for supervisor access
- Enables compact PCB design for space-constrained applications while still providing the precision and control needed
Product Details
Features
- Low-power operation enables higher system efficiency due to lower power losses
- 5 mm x 5 mm package option enables compact PCB design for space-constrained applications while still providing the precision and control needed
- 50/100 MHz 32-bit core provides math capabilities needed for advanced power efficiency and motor control applications
- Single-cycle math computations, fractional arithmetic support, and parallel moves improve performance, driving tighter and faster control loops
- High-resolution PWM with 312 pico-second resolution enables higher switching frequencies, reducing cost and increasing efficiency
- Two 12-bit high-speed (HS) ADCs with up to 1.25 MSPS resolution improves system accuracy by reducing jitter on input values
- 32 KB to 64 KB flash memory provides scalability needed for key digital power and motor control applications
- Pin-to-pin compatible with the MC56F84xxx and MC56F824x/5x families for performance and peripheral scalability
- 5 volt-tolerant I/O provides design flexibility and system cost reduction
- Direct memory access (DMA) controller reduces core interruption, increasing performance
- Four analog comparators with integrated 6-bit DACs speed system event identification and emergency shutdown of the PWM outputs
- Memory protection capability increases system safety by restricting user code from accessing key memory locations and peripherals reserved for supervisor access
Part numbers include: MC56F82313VLC, MC56F82316VLF, MC56F82323VFM, MC56F82348MLH, MC56F82623VLC, MC56F82643VLC, MC56F82646VLF, MC56F82723VFM, MC56F82723VLC, MC56F82726VLF, MC56F82728VLH, MC56F82733MFM, MC56F82733VFM, MC56F82733VLC, MC56F82736VLF, MC56F82738VLH, MC56F82743VFM, MC56F82743VLC, MC56F82746MLF, MC56F82748MLH, MC56F82748VLH.
Related products
MC56F826xx and MC56F827xx Digital Signal Controllers
Digital Signal Controllers
Digital Signal Controller
Buy/Parametrics
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Documentation
Quick reference to our documentation types.
1-5 of 66 documents
-
Reference Manual
MC56F827xx Reference Manual - Reference ManualFeatured
-
Data Sheet
MC56F827xx Data Sheet - Data SheetFeatured
-
Brochure
DSC Line CardFeatured
-
Fact Sheet
MC56F82xxx DSC FamilyFeatured
-
Data Sheet
MC56F826xx DataSheetFeatured
Design Resources
Hardware
Quick reference to our
board types.
1-5 of 12 hardware offerings
-

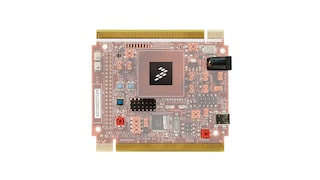

Evaluation and Development BoardsTower System Module for MC56F826xx and MC56F827xxFeatured
-
