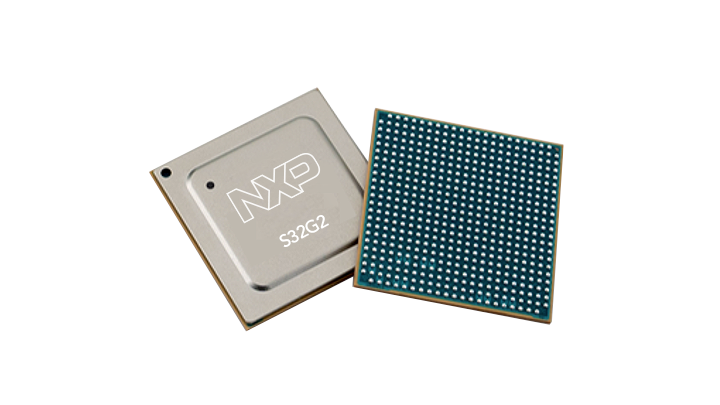

S32G2 vehicle network processors combine ASIL D safety, hardware security, high-performance real-time and application processing and network acceleration. S32G2 supports the needs of new vehicle architectures: service-oriented gateways, domain controllers, zonal processors, safety processors and more.

The S32G2 vehicle network processors are supported by a broad range of software enablement that is comprised of Reference Software, Standard Software and Premium Software, in addition to support from the S32 Design Studio IDE.

Data Sheet

Reference Manual

Product Details

Block Diagram

Choose a diagram:

S32G2 Processors for Vehicle Networking

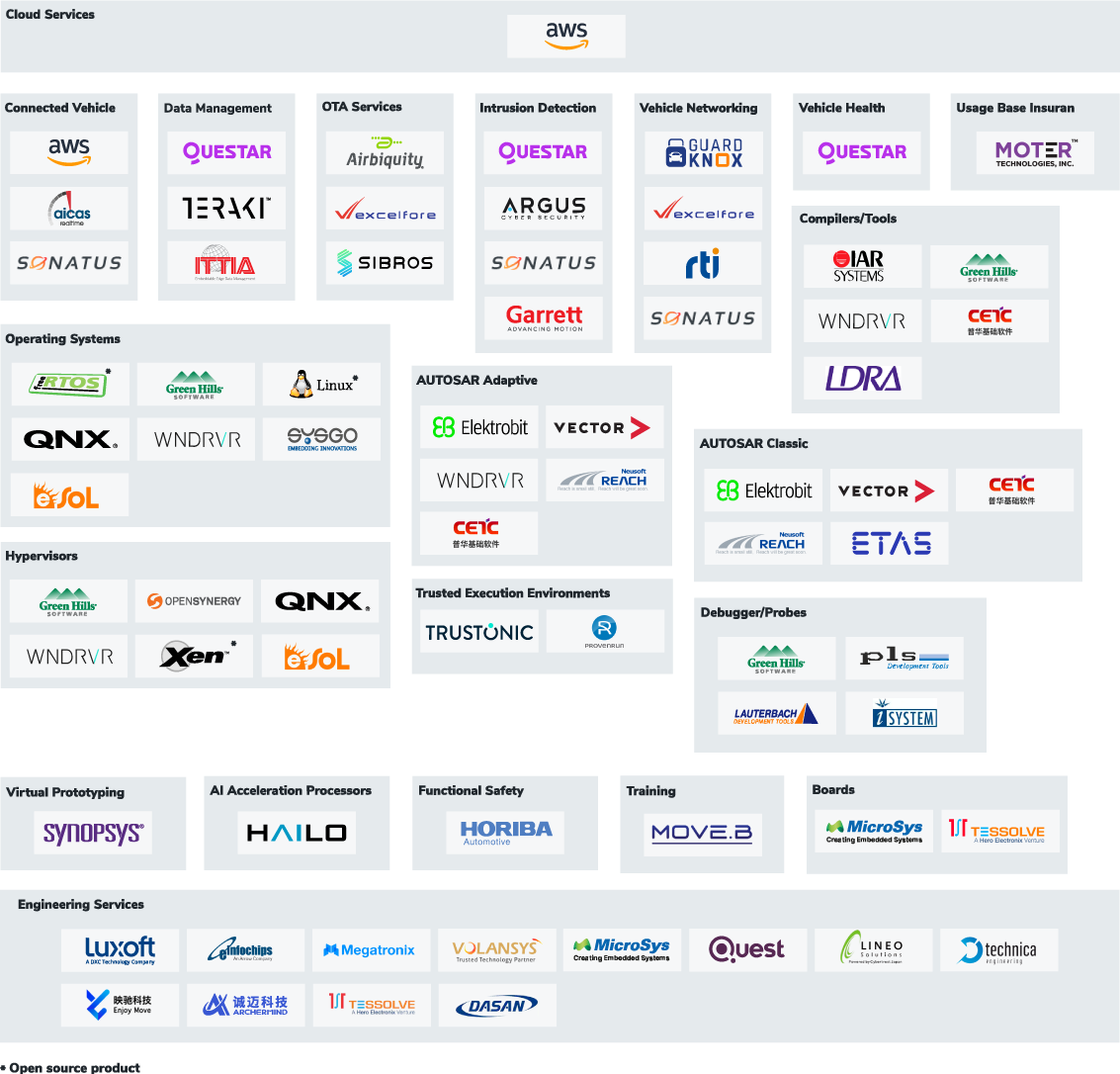

S32G2 Processors for Vehicle Networking Software Ecosystem

S32G2 Processors for Vehicle Networking

S32G2 Processors for Vehicle Networking Software Ecosystem

Get diagram PDF

Features

Main features

Quad Arm® Cortex®-A53 cores with Arm Neon™ technology organized in two clusters of two cores with optional cluster lockstep for applications and services
Triple Arm Cortex-M7 lockstep cores for real-time applications
Low Latency Communication Engine (LLCE) for automotive networks acceleration
Packet Forwarding Engine (PFE) for Ethernet networks acceleration
Hardware Security Engine (HSE) for secure boot and accelerated security services
Advanced functional safety hardware and software for ASIL D systems
AEC-Q100 Grade 2 device: -40 °C to 105 °C

Software Enablement

Offered software support enables the S32G2 features running on the Arm Cortex-M7 and Cortex-A53, plus the accelerators. Explore the vast available software solutions to help users build their applications. Read more

Tools	Reference Software	Standard Software	Premium Software
S32 Design Studio for S32 Platform Including Config Tools FreeMASTER Run-Time Debugging Tool Host PC Real-Time Debugging Tool eIQ® Auto Machine Learning (ML) Toolkit	Linux BSP Cortex®-A53 FreeRTOS™ Cortex®-A53 Integration Reference Examples Cortex-A53 Cortex-M7 USB Stack Cortex-M7 TCP/IP Stack Cortex-M7 SDHC Stack Cortex-M7 S32G Board Diagnostic Tests	S32 Real-Time Drivers (RTD) Cortex-M7 Including EB tresos Studio Safety Peripheral Drivers (SPD) Cortex-M7 Inter-Platform Comm Framework (IPCF) Cortex-A53 Cortex-M7 PFE Driver + Standard Firmware LLCE Driver Standard Firmware HSE Standard Firmware	S32 Security NDA required Increased key count IDPS capability IPsec Customization services LLCE Driver Firmware Dev Kit Automotive SW for S32G2 - Linux BSP S32G Packet Forwarding Engine (PFE) Product Brief	S32 Safety NDA required S32 Safety Software Framework (SAF) Cortex-A53 Cortex-M7 Safety concept implementation Structural Core Self-Test (SCST) Cortex-A53 Shared Resource Manager (SRM) Product Brief Cortex-M7 Linux BSP
Vehicle Integration Platform S32G GoldVIP: Accelerates S32G evaluation, development, integration and rapid prototyping efforts.
Software Package Manager Use the Automotive Software Package Manager to navigate the offerings, view product briefs and release notes and easily download software. Launch Software Package Manager			NXP Support Contact an NXP representative for more information. Support Home	SafeAssure NDA group Available through NXP Secure Content Request Access

Reference Software

Includes FreeRTOS™ support for the Cortex-M7 cores and Linux BSP support for the Cortex-A53 cores, as well as integration reference examples and board diagnostic tests.

Standard Software

Includes Real-Time Drivers for AUTOSAR® and non-AUTOSAR operating systems, Safety Peripheral Drivers, an Inter-Platform Communication Framework for communications between the Cortex-M7 and Cortex-A53 cores and hardware accelerator drivers and firmware.

Premium Software

Includes Premium Security with expanded security capabilities and Premium Safety, which includes the S32 Safety Software Framework for functional safety implementations and Structural Core Self Test (SCST) for the Cortex-A53 cores.

Product Programs

Product Longevity

Participating products are available for a minimum of 10 years. Designated participating products developed for the automotive, telecom and medical segments are available for a minimum of 15 years.

Buy/Parametrics

Quick reference to our part nomenclature.

Part Show description	Core Type	Lockstep	Operating Frequency [Max] (MHz)	RAM (kB)	Standby RAM	External Memory Supported	Serial Communication	Number of LIN Channels	Flexray	CAN	CAN FD	Ethernet MACs	Ethernet Type	PCIe	USB	Security Modules	Hardware Isolation	Timer	PWM [Number, bits]	ADC [Number, bits]	JTAG Debug	Aurora Trace	Supply Voltage [Min to Max] (V)	Ambient Operating Temperature (Min to Max) (℃)	Junction Temperature (Min to Max) (℃)	Package Type	Package Pitch (mm)	SafeAssure Functional Safety	ASIL Certification	AEC-Q100 Temperature Range
S32G254AABK1VUCT Data Sheet	2 x Arm Cortex-A53, 3 x Arm Cortex-M7	Yes	400, 1000	8000	32000	DDR3L SDRAM, LPDDR4 DRAM, QSPI NOR, SD3.0/eMMC5.1 NAND	10 x SPI, 2 x FlexRay, 3 x UART, 5 x I²C	4	2	20	20	4	MII, RGMII, RMII, SGMII	2 x PCIe 3.0	1 x USB OTG	HSE_H	XRDC	7 x WDT x 32, 8 x STM x 32	6 x 32	12 x 12	Y	Y	0.8 to 3.45	-40 to 105	-40 to 125	FBGA525	0.8	ISO 26262	up to ASIL D	grade 2
S32G254ASBK1VUCT Data Sheet	2 x Arm Cortex-A53, 3 x Arm Cortex-M7	Yes	400, 1000	8000	32000	DDR3L SDRAM, LPDDR4 DRAM, QSPI NOR, SD3.0/eMMC5.1 NAND	10 x SPI, 2 x FlexRay, 3 x UART, 5 x I²C	4	2	20	20	4	MII, RGMII, RMII, SGMII	2 x PCIe 3.0	1 x USB OTG	HSE_H	XRDC	7 x WDT x 32, 8 x STM x 32	6 x 32	12 x 12	Y	Y	0.8 to 3.45	-40 to 105	-40 to 125	FBGA525	0.8	ISO 26262	up to ASIL D	grade 2
S32G274AABK1VUCT Data Sheet	3 x Arm Cortex-M7, 4 x Arm Cortex-A53	Yes	400, 1000	8000	32000	DDR3L SDRAM, LPDDR4 DRAM, QSPI NOR, SD3.0/eMMC5.1 NAND	10 x SPI, 2 x FlexRay, 3 x UART, 5 x I²C	4	2	20	20	4	MII, RGMII, RMII, SGMII	2 x PCIe 3.0	1 x USB OTG	HSE_H	XRDC	7 x WDT x 32, 8 x STM x 32	6 x 32	12 x 12	Y	Y	0.8 to 3.45	-40 to 105	-40 to 125	FBGA525	0.8	ISO 26262	up to ASIL D	grade 2
S32G274ASBK1VUCT Data Sheet	3 x Arm Cortex-M7, 4 x Arm Cortex-A53	Yes	400, 1000	8000	32000	DDR3L SDRAM, LPDDR4 DRAM, QSPI NOR, SD3.0/eMMC5.1 NAND	10 x SPI, 2 x FlexRay, 3 x UART, 5 x I²C	4	2	20	20	4	MII, RGMII, RMII, SGMII	2 x PCIe 3.0	1 x USB OTG	HSE_H	XRDC	7 x WDT x 32, 8 x STM x 32	6 x 32	12 x 12	Y	Y	0.8 to 3.45	-40 to 105	-40 to 125	FBGA525	0.8	ISO 26262	up to ASIL D	grade 2
