MPC5775B and MPC5775E Microcontrollers for Battery Management Systems (BMS) and Inverter Applications
The MPC5775B and MPC5775E microcontrollers target automotive and industrial battery management and inverter applications that require advanced performance, security, and ASIL D support.
These MCUs are compatible with the MPC5777C device and offer customers an optimized feature set for the targeted applications. The MPC5775B and MPC5775E provide an ideal migration path for customers using MPC5xx, MPC55xx, MPC5644A and MPC5674F with eTPU timer and similar pin count options.
Product Details

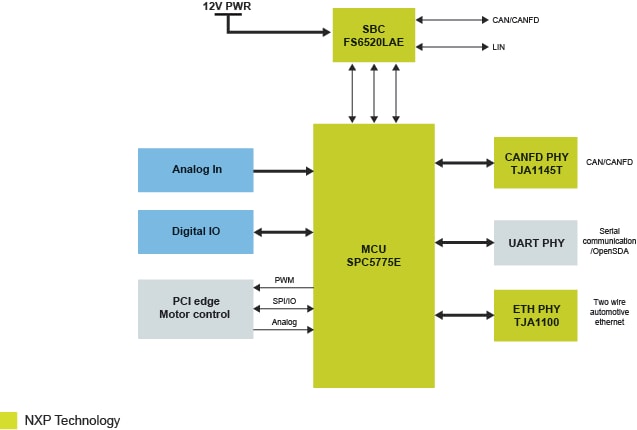

Block Diagram
Choose a diagram:
Features
General
- 2 x Power Architecture z7 cores with 264 MHz on MPC5775E and 220 MHz on MPC5775B MCUs
- 1 x z7 core in lockstep with one of the main cores, with 264 MHz on MPC5775E and 220 MHz on MPC5775B MCU
- 4 MB Flash, 512 KB SRAM
- CSE hardware security module that supports SHE protocol specification and AES-128 encryption
- 10/100Mbps Ethernet module
- 2 x CAN FD modules and 4 x FlexCAN modules
- 3 x eTPU2 timer modules on MPC5775E MCU
- 4 x Sigma Delta modules on MPC5775E MCU
- Up to 70 ch eQADC and 32 ch eMIOS
MPC5775B-E Family Comparison Table
| Feature | MPC5775B | MPC5775E |
|---|---|---|
| Flash | 4 MB | 4 MB |
| RAM | 512 KB | 512 KB |
| Cores | 2x z7(1 in LS) | 2x z7(1 in LS) |
| Speed | 220 MHz | 264 MHz |
| Timer/PWM | 2x eMIOS, 32ch total | 2x eMIOS, 32ch total 3x eTPU, 96ch total |
| Analog | 2x eQADC, 40ch total | 4x eQADC, 70ch total 4x SD ADC, 20ch total |
| Ethernet | 1x FEC Module | 1x FEC Module |
| CAN | 2x MCAN-FD, 4x FlexCAN |
2x MCAN-FD, 4x FlexCAN |
| Security | Hardware CSE module | Hardware CSE module |
| Temp (Ta) | -40°C to 125°C | -40°C to 125°C |
| Package | 416 BGA | 416 BGA |
Related products

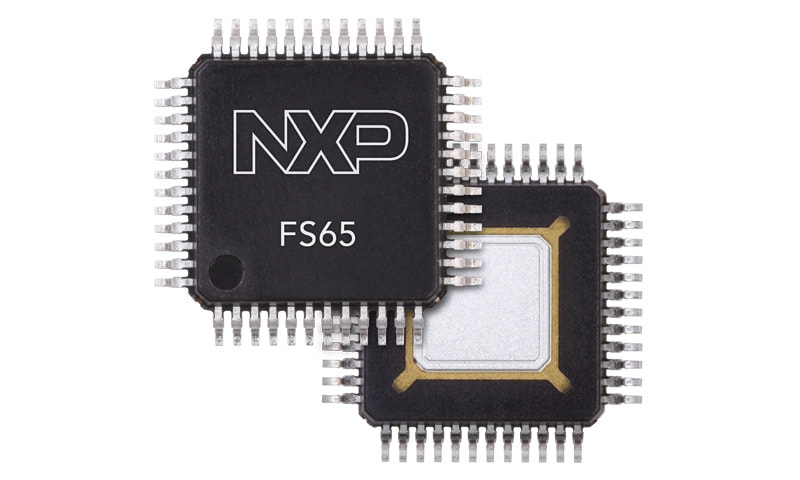

Grade 1 and Grade 0 Safety Power System Basis Chip with CAN Flexible Data Transceiver
Automotive and Industrial Engine Management MCU
Buy/Parametrics
2 results
Include 0 NRND
Part | Order | CAD Model | Status | Package Type | Package Termination Count | Flash (kB) | RAM (kB) | Core: Number of cores (SPEC) | Operating Frequency [Max] (MHz) | SafeAssure Functional Safety | Total DMA Channels | CAN | I2C | SPI | Ambient Operating Temperature (Min to Max) (℃) | Supply Voltage [max] (V) | Supply Voltage [min] (V) | GPIO |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Active | BGA416 | 416 | 4000 | 512 | 3 | 220 | ISO 26262 | 128 | 6 | 0 | 5 | -40 to 125 | 5.5 | 4.5 | 293 | |||
Active | BGA416 | 416 | 4000 | 512 | 3 | 264 | ISO 26262 | 128 | 6 | 0 | 5 | -40 to 125 | 5.5 | 4.5 | 293 |
Documentation
Quick reference to our documentation types.
1-10 of 33 documents
Compact List
Application Note (20)
Application Note Software (2)
-
Software for eTPURDCCUG[eTPURDCCUGSW]
Brochure (1)
Data Sheet (1)
Errata (1)
-
MPC5777C – Mask Set Errata for Mask 3N45H[MPC5777C_3N45H]
Fact Sheet (1)
-
MPC5775B_E Microcontroller One Pager[MPC5775BEFS]
Product Brief (1)
Reference Manual (1)
-
MPC5775E, MPC5775E/MPC5775B Reference Manual[MPC5775ERM]
Technical Notes (1)
User Guide (2)
-
eTPU RDC and RDC Checker User Guide[eTPURDCCUG]
-
MPC5775BE-EVB evaluation system – User Manual[MPC5775BEEVBUG]
White Paper (2)
Design Resources
Hardware
Quick reference to our
board types.
1-5 of 15 hardware offerings
-
Complete SolutionMPC5775B BMS and VCU Reference DesignFeatured
-
Evaluation and Development BoardsMPC5775B and MC33771 high-voltage BMS Evaluation SystemFeatured
-
Evaluation and Development BoardsMPC5775B/E low-cost BMS and Inverter Development BoardFeatured
-
Additional hardware available. View our featured partner solutions.
-

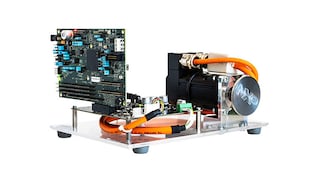

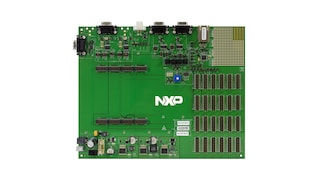

Evaluation and Development BoardsMPC5775E 3-phase PMSM Development KitFeatured
