32-Bit Microcontrollers with USB
Design Files
Receive the full breakdown. See the product footprint and more in the eCad file.
Compact List

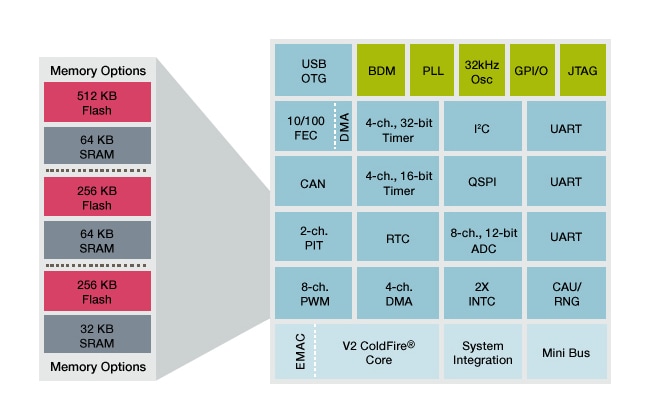

One-Stop-Shop Connectivity 32-Bit Microcontrollers
The MCF5225x family consists of highly integrated devices with on-chip USB, Ethernet, CAN and encryption functions featuring the complete MQX™ RTOS software at no additional cost. This solution is ideal for factory automation, building control and medical applications.
Product Details
Features
- ColdFire® V2 core with 66 MHz and 80 MHz options
- Complimentary MQX™ software solutions
- Connectivity: USB 2.0 full-speed host/device/on-the-go (OTG) controller, FlexCAN controller,10/100 Ethernet controller
- External mini-FlexBus interface
- Cryptographic accelerator unit
- Up to 512 KB of flash memory
- Up to 64 KB SRAM
- Up to 96 general-purpose input/outputs (GPIOs)
- This product is included in NXP®.s product longevity program, with assured supply for a minimum of 10 years after launch
Related products
Integrated ColdFire® V2 Ethernet Microcontrollers
Buy/Parametrics
1-10 of 15 results
Include 1 NRND
Part | Order | CAD Model | Status | Package Type | Package Termination Count | Budgetary Price excluding tax | Operating Frequency [Max] (MHz) | Flash (kB) | RAM (kB) | GPIO | Supply Voltage [min] (V) | Supply Voltage [max] (V) | Ambient Operating Temperature (Min to Max) (℃) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Active | LQFP100 | 100 | 10K @ US$7.65 | 80 | 256 | 32 | 56 | 3 | 3.6 | 0 to 70 | |||
Active | LQFP100 | 100 | 10K @ US$8.12 | 66 | 256 | 32 | 56 | 3 | 3.6 | -40 to 85 | |||
Active | LQFP100 | 100 | 10K @ US$8.80 | 80 | 512 | 64 | 56 | 3 | 3.6 | 0 to 70 | |||
Active | LQFP100 | 100 | 10K @ US$9.27 | 66 | 512 | 64 | 56 | 3 | 3.6 | -40 to 85 | |||
Active | LQFP100 | 100 | 10K @ US$10.20 - 10K @ US$11.41 | 80 | 512 | 64 | 56 | 3 | 3.6 | -40 to 85 | |||
Active | LQFP144 | 144 | 10K @ US$8.41 | 80 | 256 | 32 | 96 | 3 | 3.6 | 0 to 70 | |||
Active | LQFP144 | 144 | 10K @ US$8.88 | 66 | 256 | 64 | 96 | 3 | 3.6 | -40 to 85 | |||
Active | LBGA144 | 144 | 10K @ US$8.88 | 66 | 256 | 64 | 96 | 3 | 3.6 | -40 to 85 | |||
Active | LQFP144 | 144 | 10K @ US$9.63 - 10K @ US$10.78 | 80 | 512 | 64 | 96 | 3 | 3.6 | 0 to 70 | |||
Active | LQFP144 | 144 | 10K @ US$10.10 | 66 | 512 | 64 | 96 | 3 | 3.6 | -40 to 85 |
Documentation
Quick reference to our documentation types.
1-10 of 12 documents
Application Note (3)
Application Note Software (2)
-
Associated software for AN4022[AN4022SW]
Data Sheet (1)
Product Change Notice (1)
Reference Manual (3)
-
MCF52259 Reference Manual Errata[MCF52259RMAD]
-
MCF52259 ColdFire® ® Integrated Microcontroller - Reference Manual[MCF52259RM]Featured
1-10 of 12 documents
Compact List
Application Note (3)
Application Note Software (2)
-
Associated software for AN4022[AN4022SW]
Data Sheet (1)
Product Change Notice (1)
Reference Manual (3)
-
MCF52259 Reference Manual Errata[MCF52259RMAD]
-
MCF52259 ColdFire® ® Integrated Microcontroller - Reference Manual[MCF52259RM]Featured
Supporting Information (2)
-

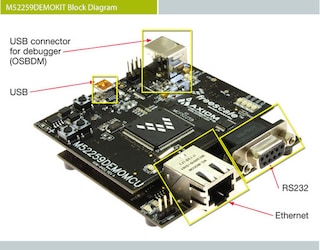

M52259EVB[M52259EVB]Featured
Design Resources
Hardware
Quick reference to our
board types.
1-5 of 9 hardware offerings
-
Emulators, Probes, and ProgrammersUniversal Multilink Development InterfaceFeatured
Active -
Emulators, Probes, and ProgrammersUSB ColdFire MultlinkFeatured
Active -

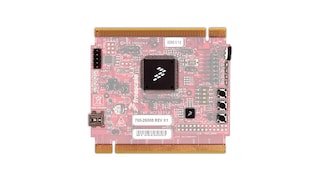

Evaluation and Development BoardsColdFire MCF5225X Connectivity Tower System ModuleFeatured
