NAFE13388-UIM 8-Channel Universal Input AFE Arduino® Shield Board
- This page contains information on a preproduction product. Specifications and information herein are subject to change without notice. For additional information contact support or your sales representative.

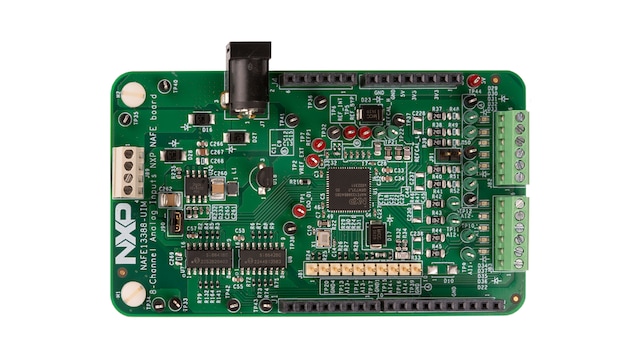

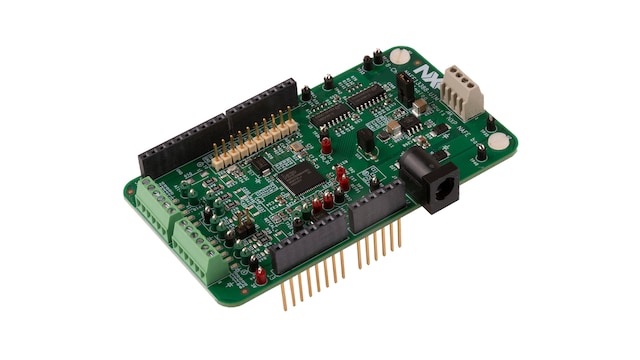

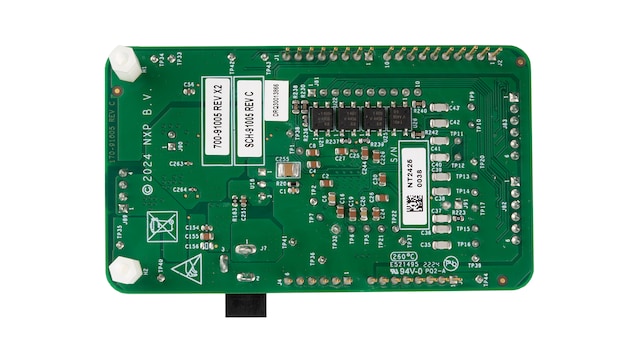

The NAFE13388-UIM 8-channel universal input AFE Arduino shield board is designed for the evaluation of the NAFExx388, which is a highly configurable, industrial-grade multichannel analog input analog front-end (AFE). This Arduino shield board showcases compact hardware design and enhanced software configurability with the universal open-CMSIS driver packs.
The shield board supports quick evaluation and plug-and-play compatibility with NXP's MCU boards (MCX-N and LPC) having an Arduino connector. Users can quickly perform voltage, current and temperature measurements (RTD and thermocouple), reducing the development time of the final application.
Product Details
Features
Key Features
- Eight configurable HV inputs: single-ended or differential with ranges up to ±25 V
- 0.005 % FS accuracy at room after user calibration
- 0.1 % FS accuracy over -25 ⁰C to 105 ⁰C
- 17-bit effective resolution at 72 ksps / 24-bit at 30 SPS
- Faster data rates: 7.5 SPS to 288 ksps
- End-to-end calibration with integrated precise voltage sources
- Diagnostic system for faults detection and prediction
- Robust 8 kV HBM ESD and IEC61000-4-5 2 kV surge protection
Board Features
- Compact design
- 89 mm x 50 mm size
- Arduino UNO connector connects to any NXP FRDM MCU platform
- FRDM compatible
Enhanced Analog Sensing
- Eight software configurable analog inputs to measure voltage, current, RTD and thermocouple
- Embedded RTD for cold junction compensation
- Current sense resistors are controlled by GPIOs
Advanced Analog Features
- Voltage or current excitation sources
- Factory and user calibration support
- Advanced diagnostics and anomaly detection
Plug and Play
- Open-CMSIS driver pack
- NAFE GUI
- Code examples
Design Resources
Design Files
Quick reference to our
design files types.
2 design files
-
Printed Circuit Boards and Schematics
NAFE13388-UIM Schematics
-
Design Files - miscellaneous
NAFE13388-UIM Design Files
Software
Quick reference to our software types.
3 software files
-
BSPs and Device Drivers
NAFE13388 Universal Input Analog Front-End with Demo App (SDK)
-
BSPs and Device Drivers
NAFE13388 Universal Input Analog Front-End - Application Code Hub
-
Software Development Resources
NAFE13388-UIM Industrial - Application Code Hubnew
Note: For better experience, software downloads are recommended on desktop.
