P3T2030xUK Arduino® Shield Evaluation Board

P3T2030XUK-ARD

Roll over image to zoom in

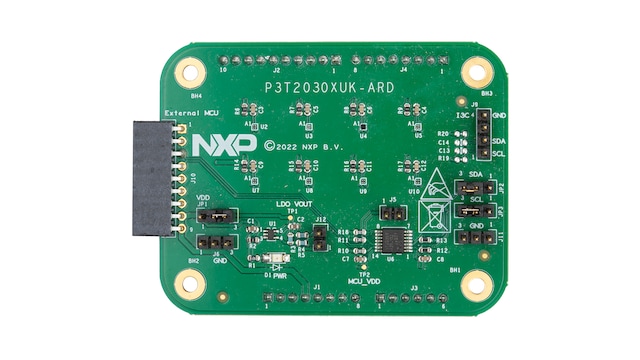

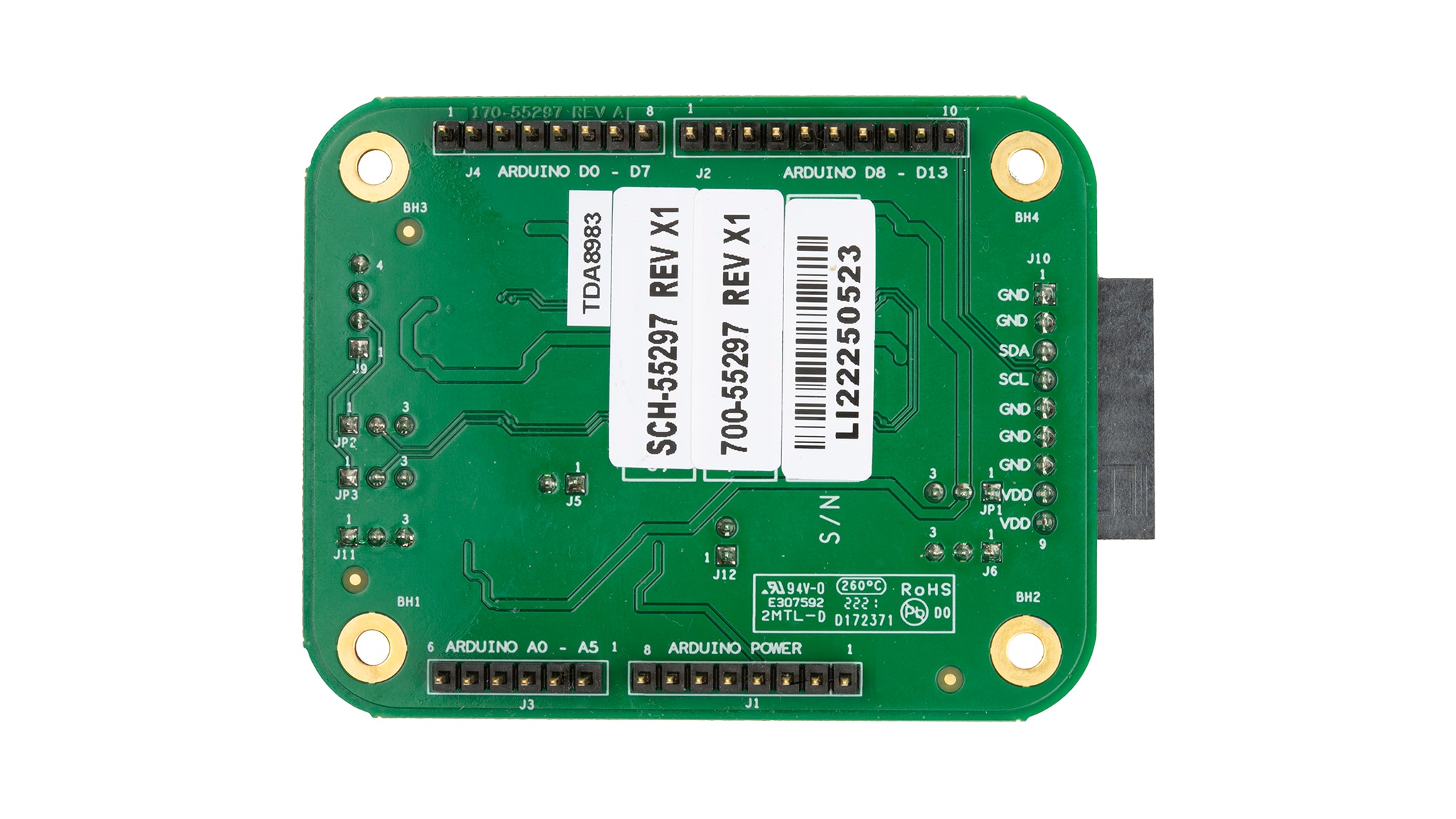

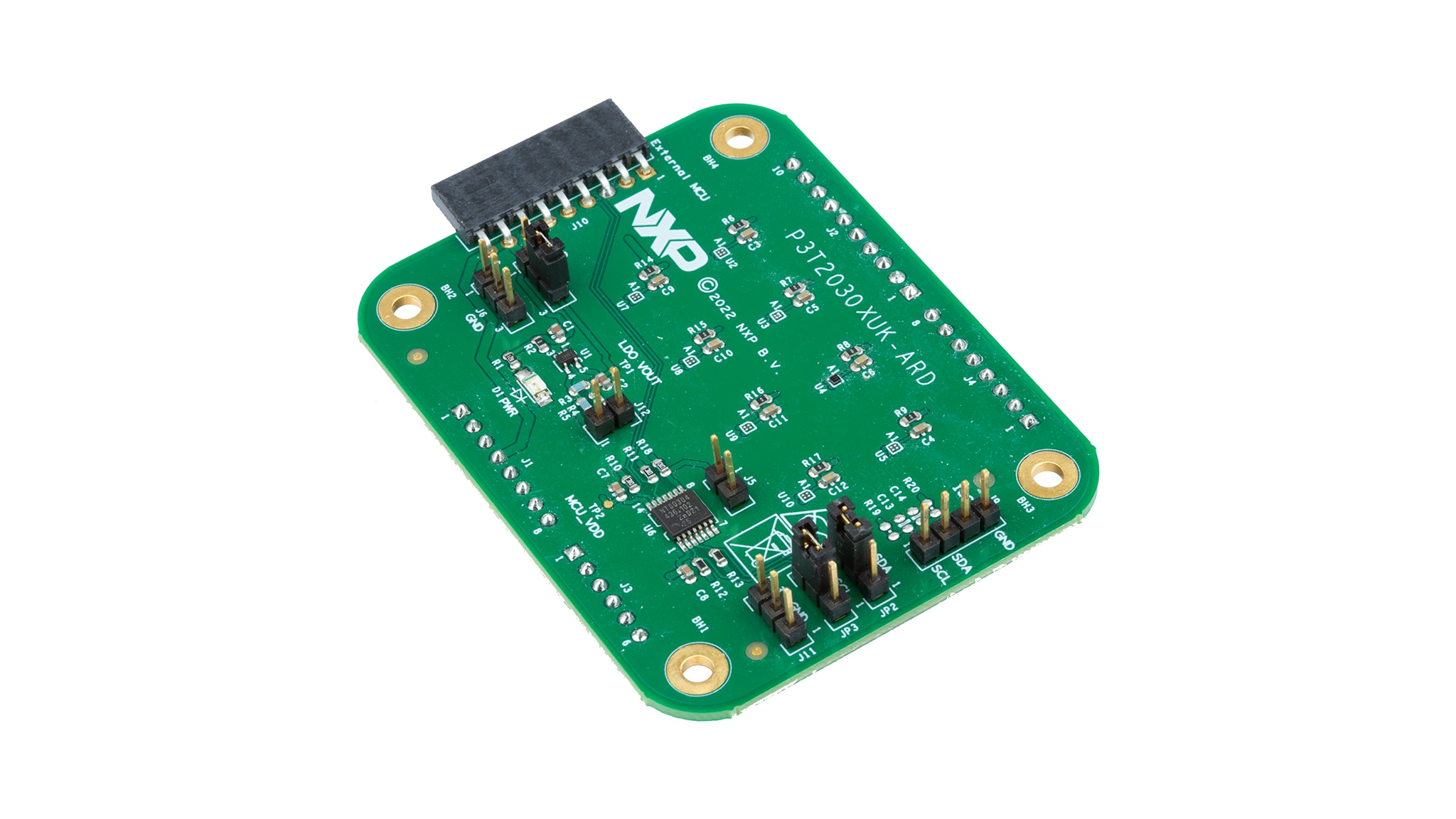

The P3T2030xUK -ARD is an Arduino evaluation board that makes it easy to evaluate the P3T2030xUK ±2 ⁰C temperature sensor in combination with MIMXRT685-EVK and Windows based software GUI. Other MCU Arduino boards can be used to read out temperature as well. The evaluation board has multiple jumpers to enable alert LED, alert pull resistor, 1.8 V or 3.3 V power supply rail, and I²C or I3C interface, enabling multiple operating options.

Supported Devices

Sensors

I3C/I²C Digital Temp. Sensors

  • P3T2030xUK: I3C, I2C-Bus, 2.0 °C Accuracy, Digital Temperature Sensor

Features

Key Features

  • ±2 °C accurate temperature sensor
  • I3C/I²C support
  • Continues conversion, one-short or shutdown mode
  • WLCSP4 (0.4 mm pitch, 0.91 mm x 0.855 mm x 0.455 mm body)

Interfaces

  • I3C or I²C interface through Arduino pins

Power

  • Arduino supply of 1.8 V or 3.3 V
  • External power supply option

Size and Weight

  • Measure/weigh when applications provides ARD board

Software

  • P3T2030XUK-ARD Demo GUI

Buy Options

P3T2030XUK-ARD-Image

Click to expand

  • P3T2030XUK-ARD
    Active

  • P3T2030xUK Arduino® Shield Evaluation Board.

  • Kit contains:

    • P3T2030XUK - ARD PCB Hardware
    • Extra cables for I3C interface (Need to check applications engineer)
    • GUI for evaluation
    • Quick Start Guide
  • $38.50 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 20
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
