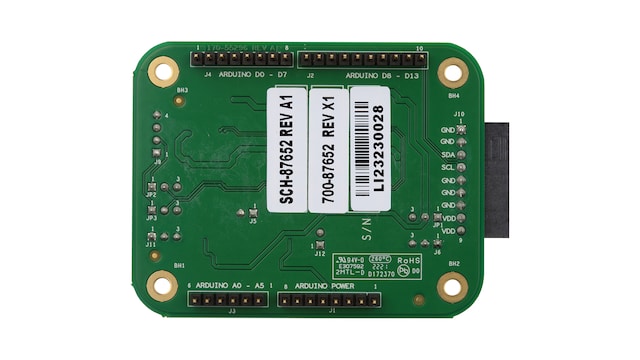

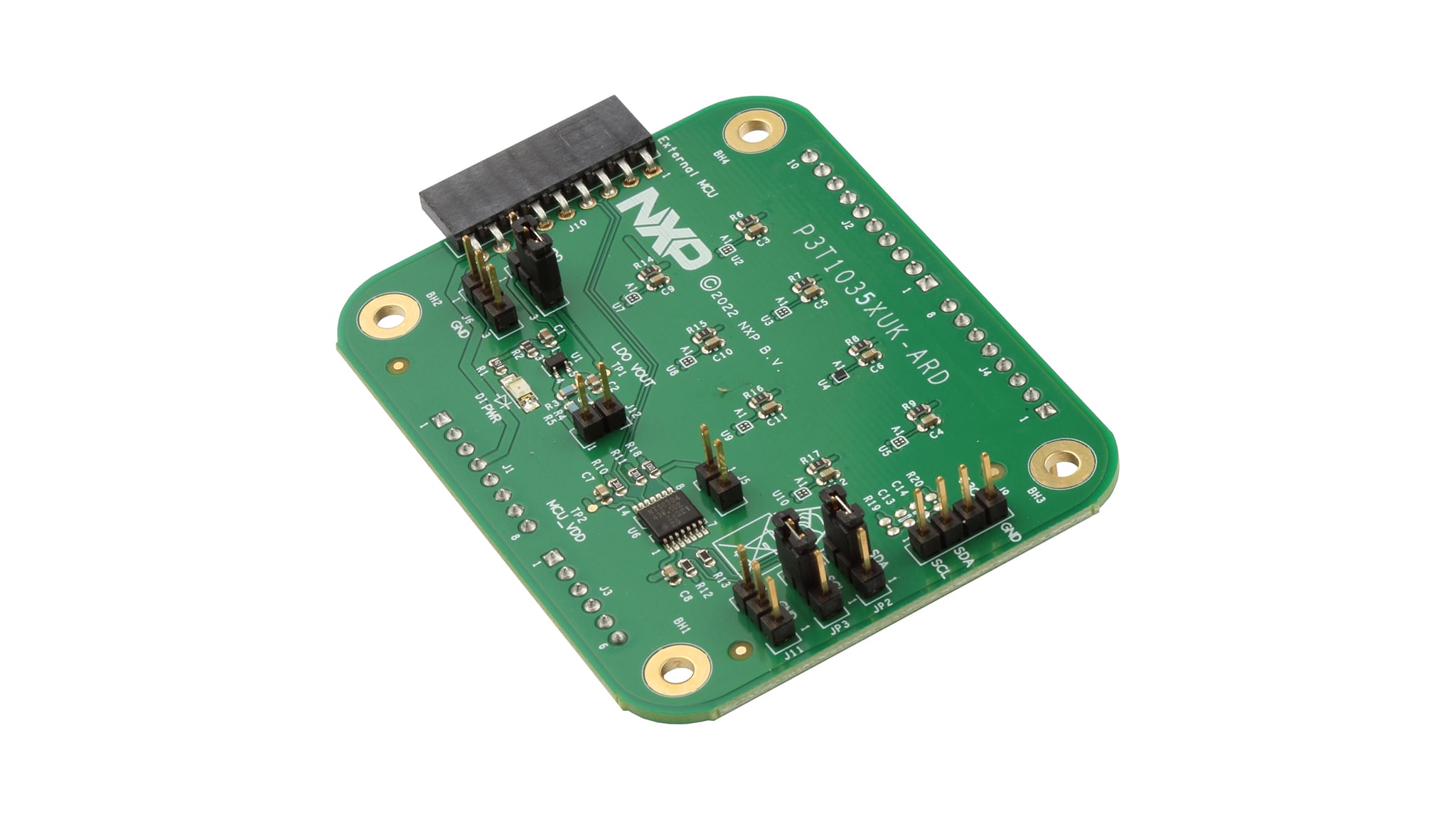

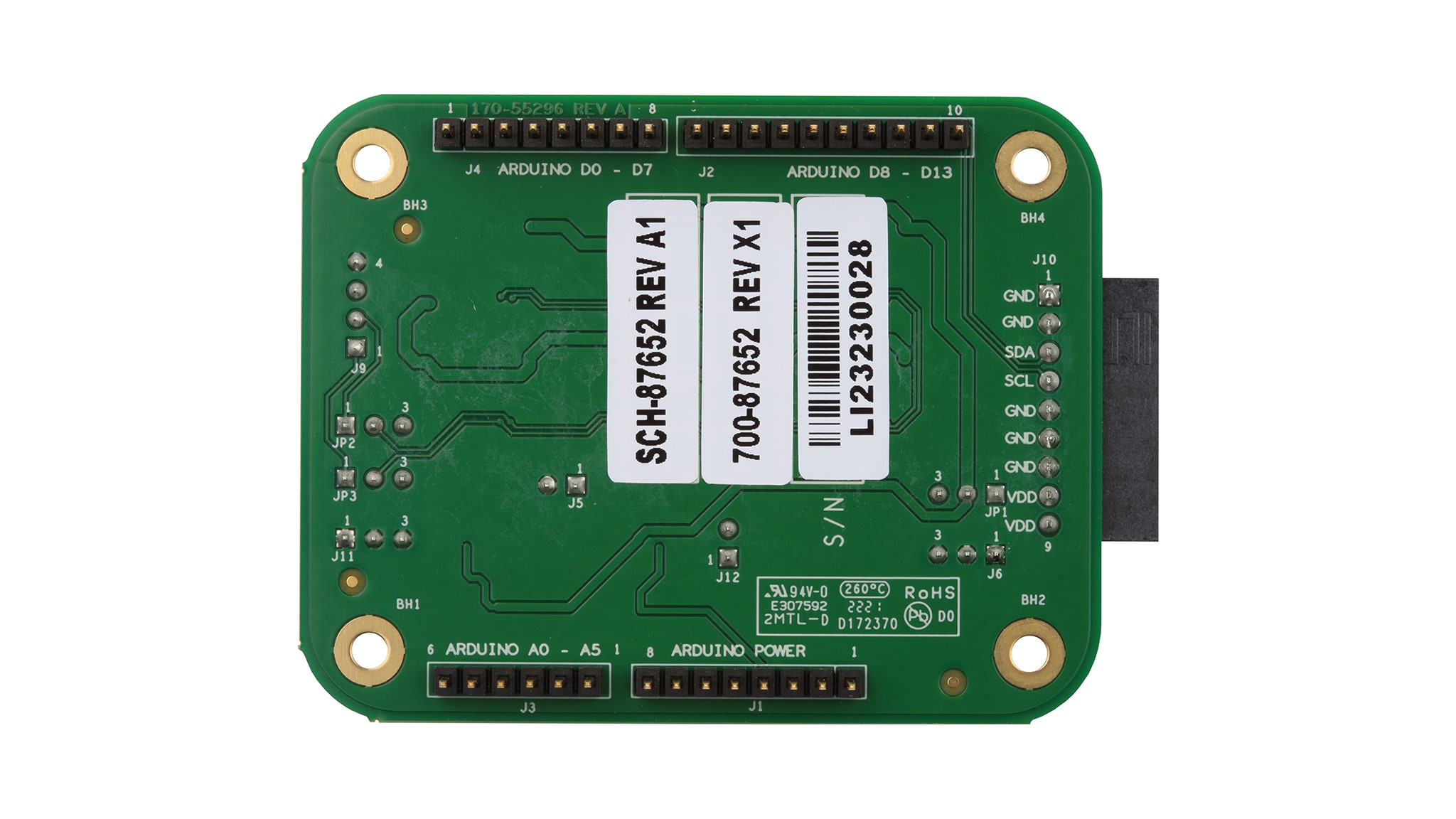

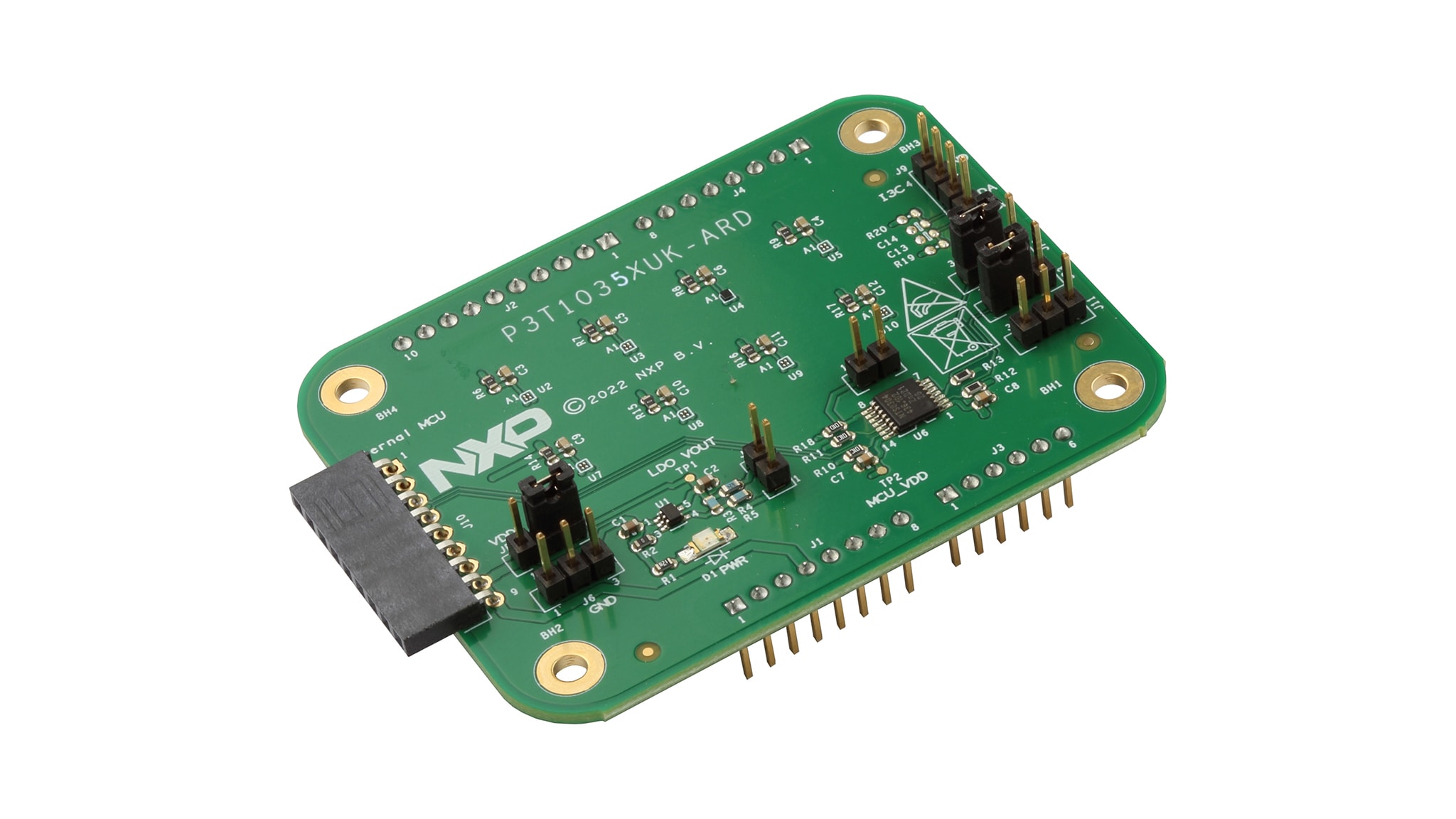

P3T1035xUK Arduino® Shield Evaluation Board

P3T1035XUK-ARD

Roll over image to zoom in

The P3T1035XUK-ARD is an Arduino evaluation board that makes it easy to evaluate the P3T1035xUK ±0.5 ⁰C temperature sensor in combination with MIMXRT685-EVK and Windows based software GUI. Other MCU Arduino boards can be used to read out temperature as well. The evaluation board has multiple jumpers to enable alert LED, alert pull resistor, 1.8 V or 3.3 V power supply rail and I²C or I3C interface, enabling multiple operating options.

Supported Devices

Sensors

I3C/I²C Digital Temp. Sensors

  • P3T1035xUK: I3C, I²C-Bus, ±0.5 °C Accuracy, Digital Temperature Sensor

Features

P3T1035CUK

  • ±0.5 ⁰C accurate temperature sensor
  • I3C/I²C support
  • Continuous conversion, one-shot or shutdown mode
  • WLCSP4 (0.4 mm pitch, 0.91 mm x 0.855 mm x 0.455 mm body)

Interfaces

  • I3C or I²C interface through Arduino pins

Power

  • Arduino supply of 1.8 V or 3.3 V
  • External power supply option

Software

  • P3T1035XUK-ARD Demo GUI

Buy Options

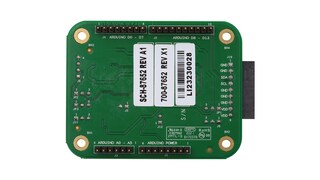

P3T1035XUK-ARD-Image

Click to expand

  • P3T1035XUK-ARD
    Active

  • P3T1035xUK Arduino® Shield Evaluation Board.

  • Kit Contains

    • P3T1035XUK-ARD PCB hardware
    • GUI for evaluation
    • Quick start guide
  • $16.67 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 38
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
