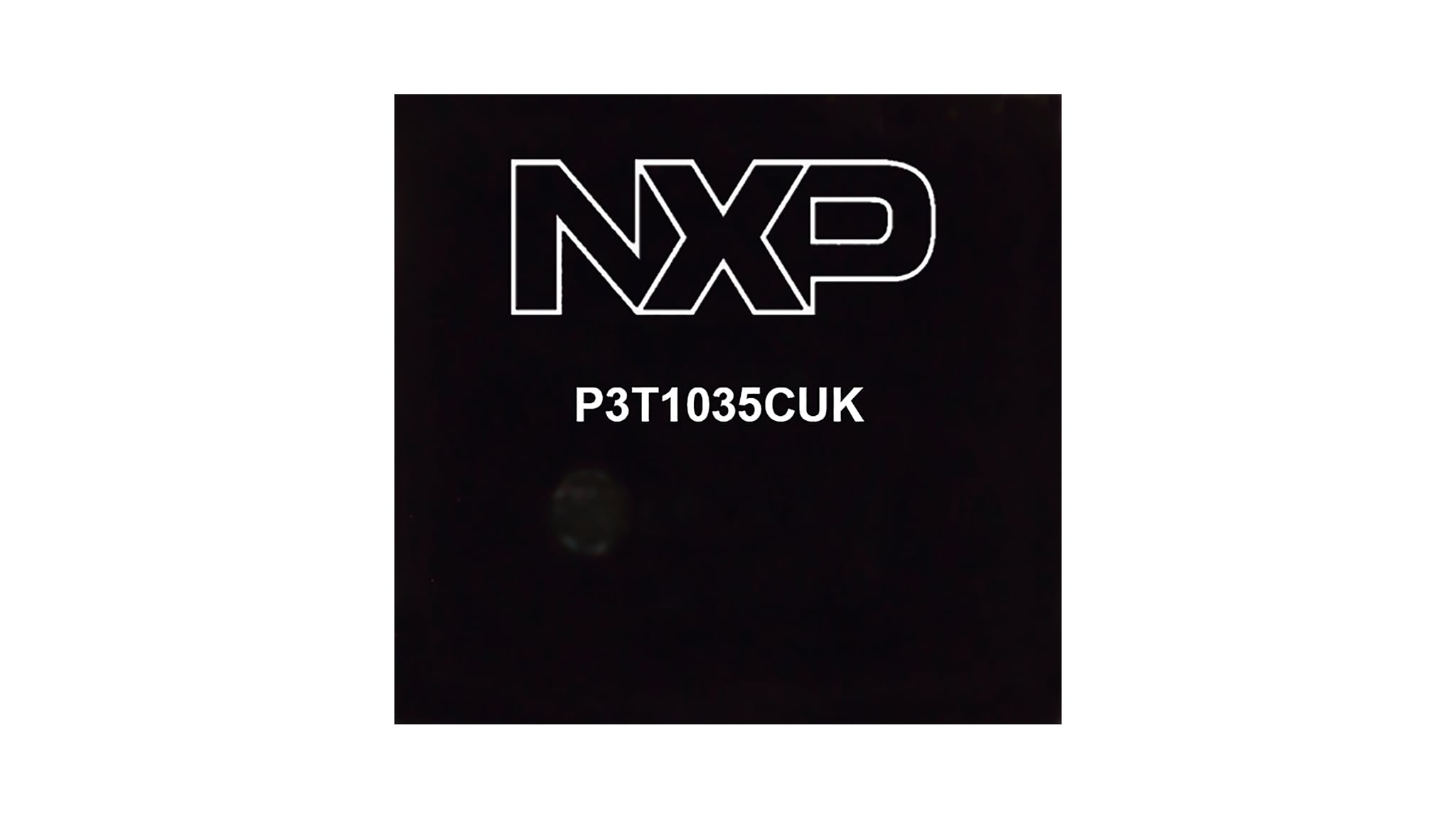

I3C, I²C-Bus, ±0.5 °C Accuracy, Digital Temperature Sensor
P3T1035xUK is a temperature-to-digital converter from -40 °C to +125 °C range. It uses an on-chip band gap temperature sensor and A-to-D conversion technique with an overtemperature detection.
The temperature register always stores a 12 bit two's complement data, giving a temperature resolution of 0.0625 °C.
P3T1035xUK can be configured for different operation conditions: continuous conversion and one-shot. The P3T1035xUK is available in WLCSP4 package and has 8 factory-programmed device address options.
Product Details
Block Diagram
Features
Temperature Accuracy
- ±0.5 °C accurate temperature sensor
- Internal 12-bit analog-to-digital converter (0.0625 °C resolution)
- Allows 8-bit (MSByte) reading with temperature resolution of 1 °C
- Programmable under and over temperature alerts
Power Performance
- Operating voltage from 1.4 V up to 1.98 V
- Low quiescent current: 6 µA (maximum)
Ease of Use
- I3C or I²C interface option
- Eight different target address options
Market Segments
- Consumer
- Industrial
- Medical
- Telecom
- Computing

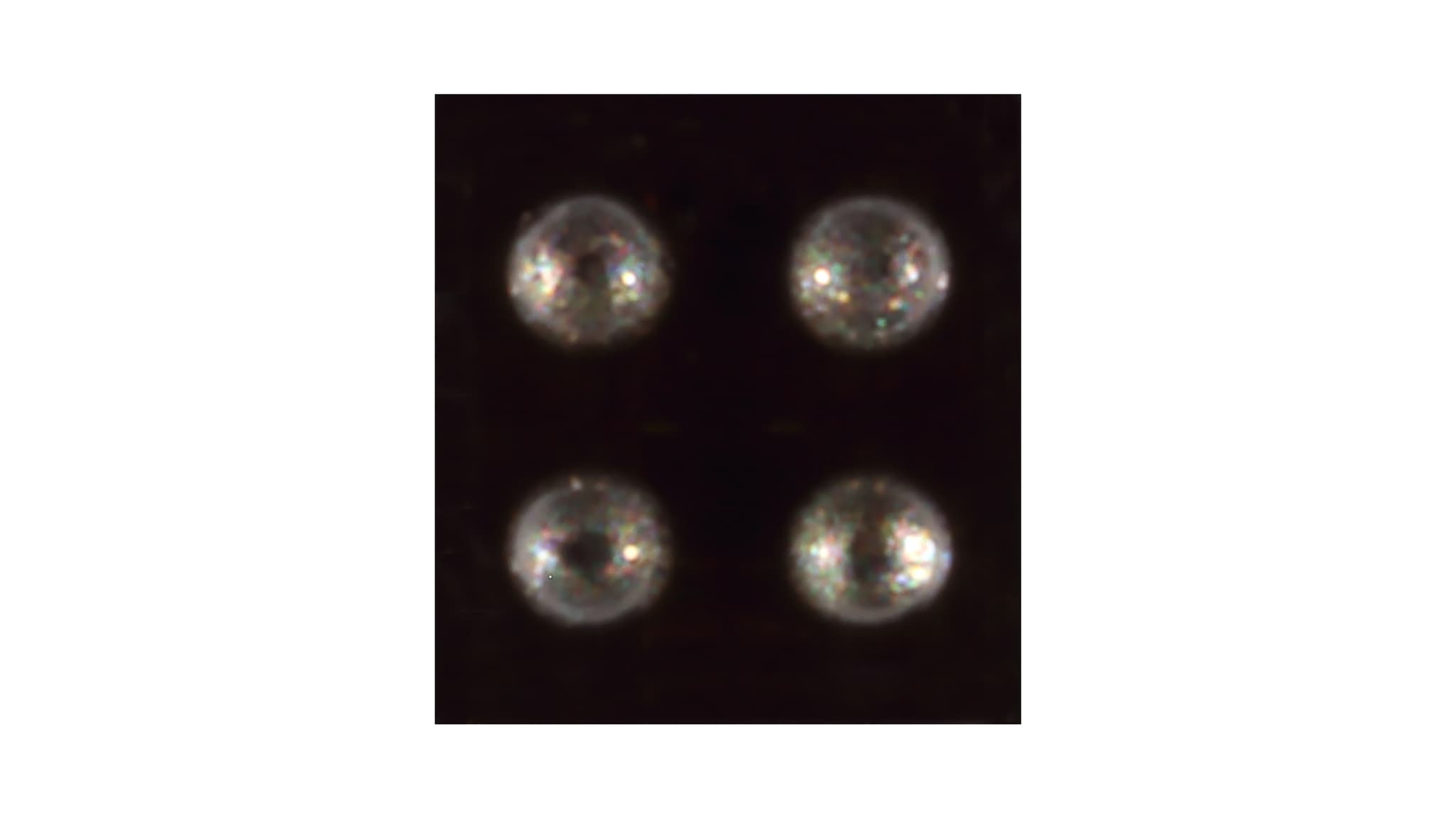

Wafer Level Chip-Scale Package
- WLCSP4: 0.91 mm x 0.855 mm x 0.455 mm body, 0.4 mm pitch
Product Longevity Program
- This product is included in the NXP Product Longevity program, with assured supply for a minimum of 10 years after launch
Related products
I3C/I²C-Bus ±0.5 °C Accurate Digital Temperature Sensor

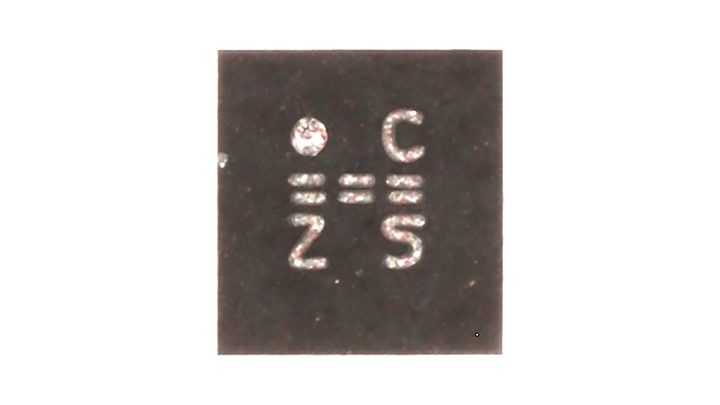

I3C, I2C-Bus, 2.0 °C Accuracy, Digital Temperature Sensor
