I3C/I2C-Bus ±0.4 °C Accurate Digital Temperature Sensor
P3T1084UK is a ±0.4 °C accurate temperature-to-digital converter with a -40 °C to +125 °C range. It uses an on-chip band gap temperature sensor and A-to-D conversion technique with overtemperature detection. The temperature register always stores a 12 bit two's complement data, giving a temperature resolution of 0.0625 °C.
P3T1084UK can be configured for different operation conditions: continuous conversion, one-shot mode or shutdown mode. The device supports 2-wire serial I3C (up to 12.5 MHz) and I²C (up to 3.4 MHz) as communication interface. In I²C, the device supports up to four target addresses and an alert function. In I3C, the devices supports in band interrupt (IBI), where the same bus is used to report the alert interrupts.

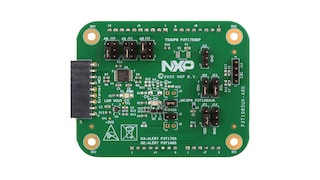

Product Details
Features
Temperature Accuracy
- ±0.4 °C accurate temperature sensor
- Internal 12-bit A-to-D converter (0.0625 °C resolution)
- Programmable under and over temperature alerts
Performance
- Operating voltage from 1.4 V up to 3.6 V
- Low quiescent current: 6 µA (maximum)
Grade Type
- Consumer / Industrial: P3T1084UK
Plastic Package

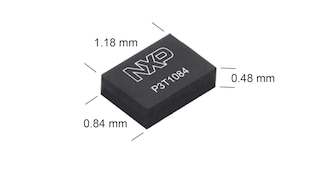

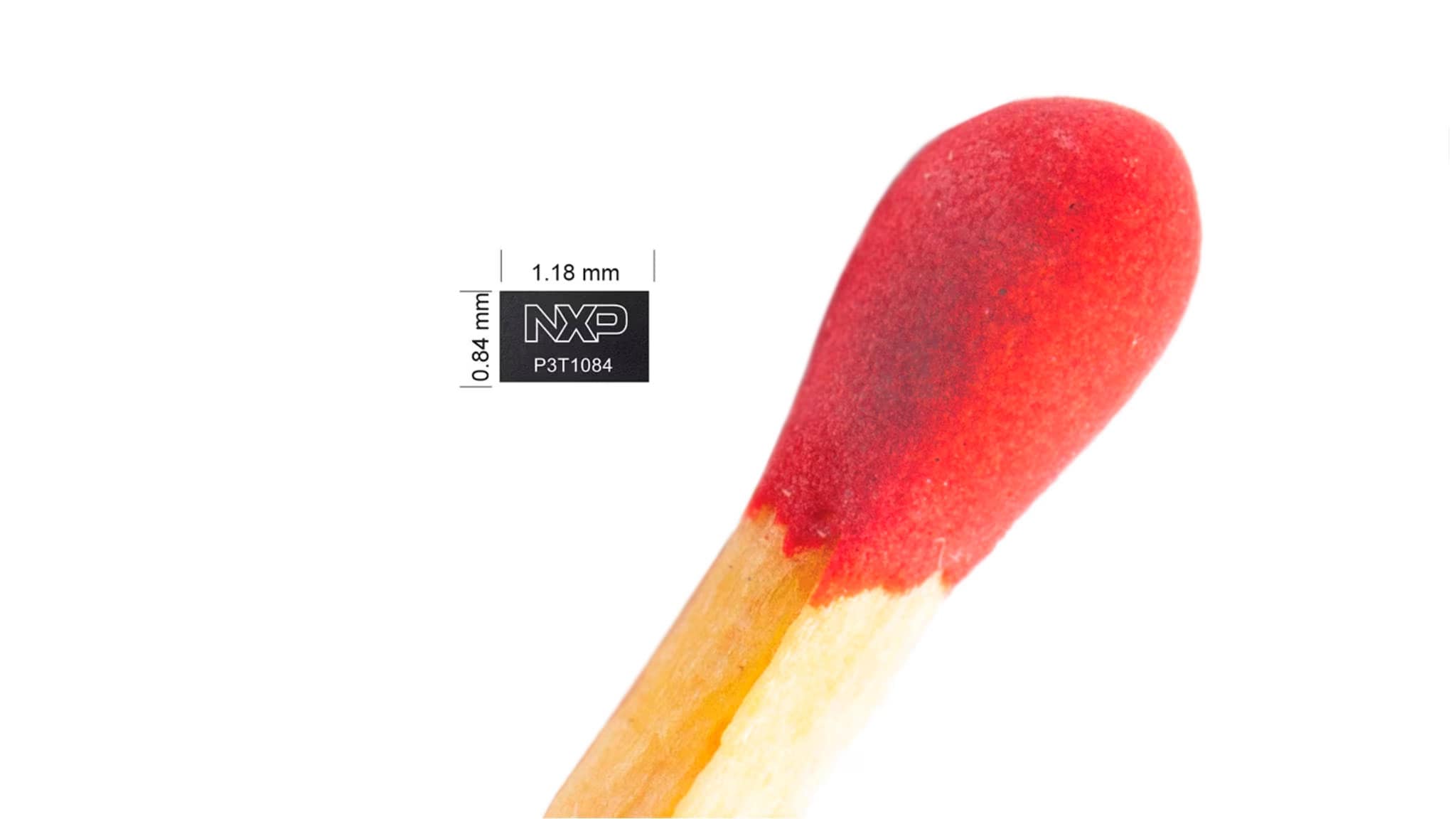

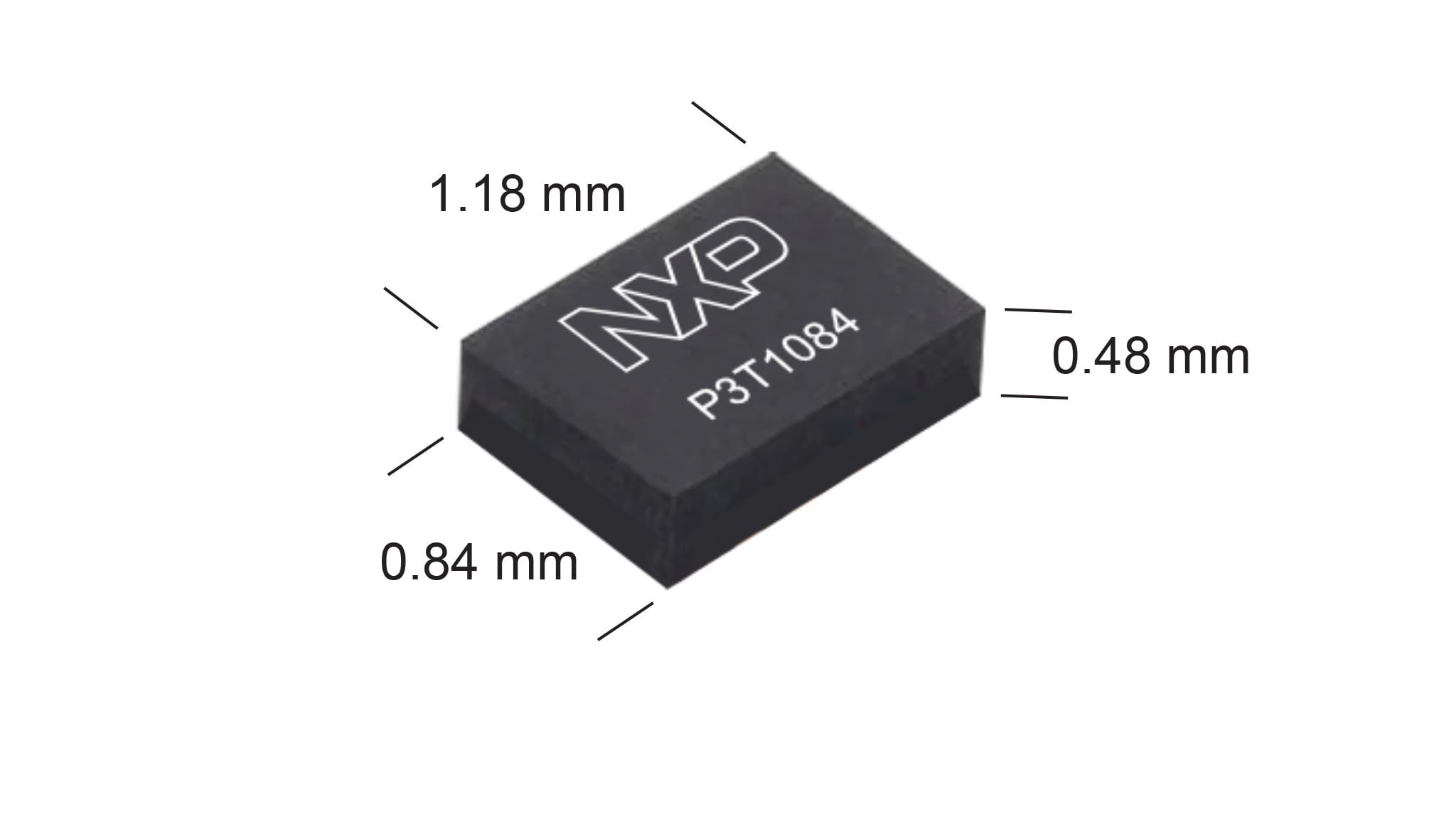

- WLCSP6: 1.18 mm x 0.84 mm x 0.48 mm
Buy/Parametrics
1 result
Include 0 NRND
Part | Order | CAD Model | Status | Accuracy on-chip (±°C) | Supply Voltage [Min to Max] (V) | Communication protocol | # of Addresses | Resolution (°C) | Operating Temperature (Min-Max) (℃) | AEC-Q100 compliant | Budgetary Price excluding tax |
|---|---|---|---|---|---|---|---|---|---|---|---|
Active | 0.4 | 1.4 to 3.6 | I3C, I²C | 4 | 0.06 | -40 to 125 | N | 1K @ US$0.33 |
