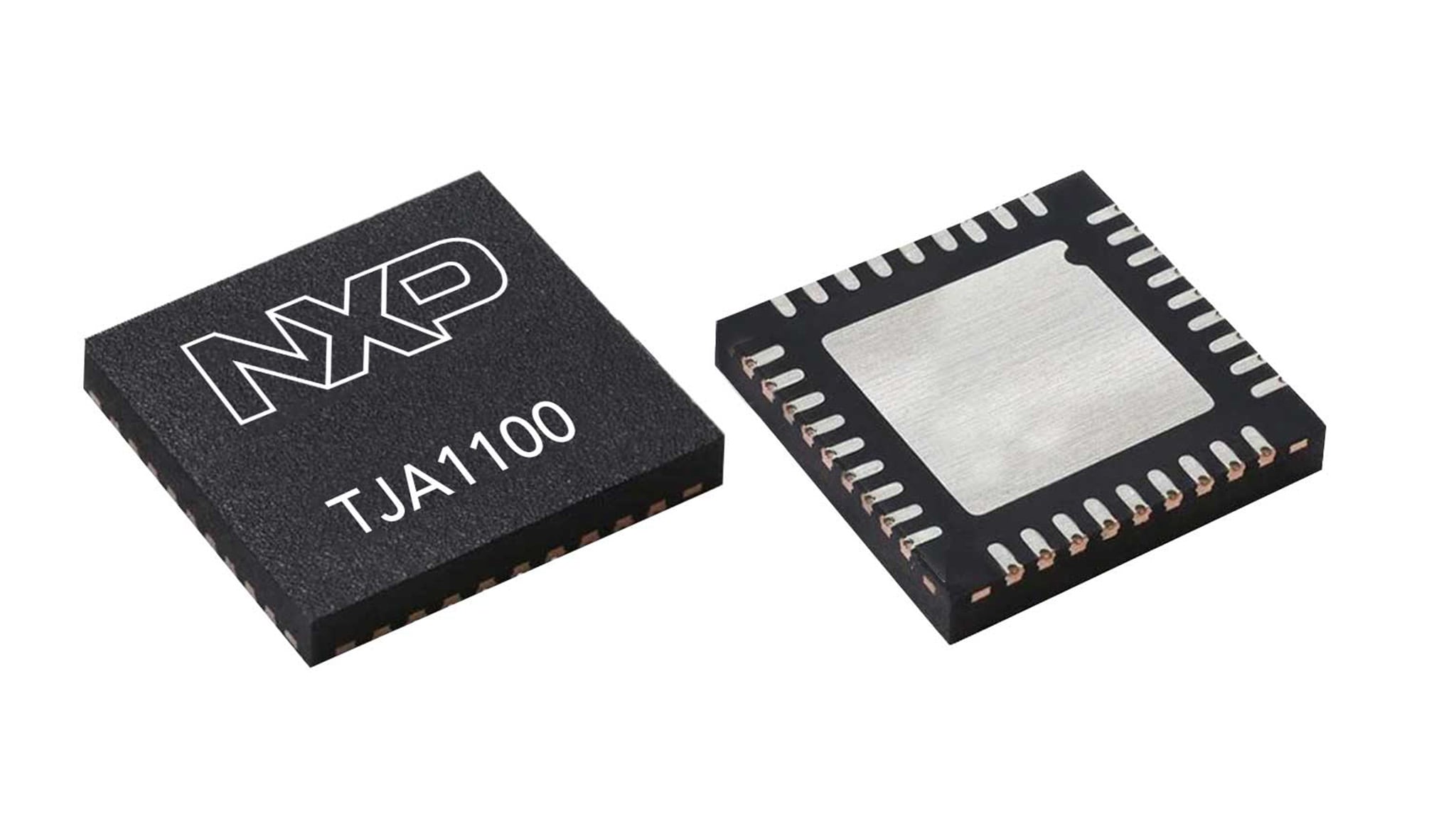

The TJA1100 is IEEE 100BASE-T1 compliant. The single port Ethernet PHY Transceiver is designed and fully qualified for automotive applications. It supports 100 Mbit/s transmit and receive capability up to at least 15 m of unshielded twisted pair (UTP) cables. The TJA1100 enables lowest system cost and fulfills the demanding area and heat constraints of next-generation electronic control units (ECU) and sensors for Advanced Driver Assistance System (ADAS). Qualified in compliance with AEC-Q100 Grade 1, the TJA1100 is natively designed for the smallest package footprint, minimal external component overhead, and low power.
Participating products are available for a minimum of 10 years. Designated participating products developed for the automotive, telecom and medical segments are available for a minimum of 15 years.
SJA1105EL: Five- Ports AVB Automotive Ethernet Switch
1 result
Exclude 1 NRND
Part | Order | CAD Model | Status | Package Type | Number of pins | Product Category | Number of Ports | xMII Interfaces | AEC-Q100 Temperature Range | TC10 support | Single Supply | Safety Level | ESD Robustness | Diagnostics | NXP Software |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Not Recommended for New Designs | HVQFN36 | 36 | 100BASE-T1 PHY | 1 | 1 x MII/RMII - 3.3V | grade 1 | No | yes | QM | ±6 kV HBM | Diagnosis of Cabling Errors, Real-time Signal Quality Indicator, Under Voltage Detection | 802.1AS |
