FS6523, System Basis Chip, DCDC 2.2A Vcore FS1B LDT CAN

KITFS6523CAEEVM
Active

Roll over image to zoom in

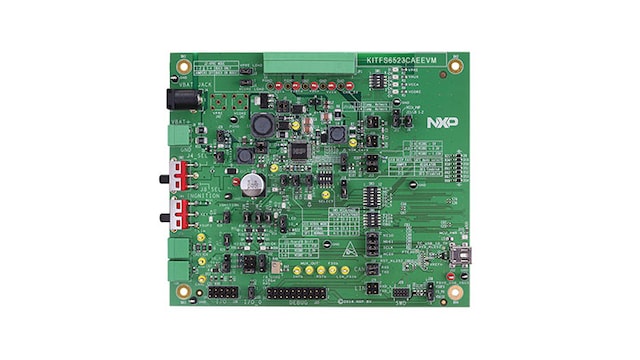

KITFS6523CAEEVM evaluation board demonstrates the functionality of MC33FS6523 supports CAN FD and FS1B with Vcore SMPS regulator up to 2.2 A.These Safety SBCs target ISO 26262 automotive functional safety standard.

NXP’s analog product development boards provide an easy-to-use platform for evaluating NXP® products. The boards support a range of analog, mixed-signal and power solutions. They incorporate monolithic ICs and system-in-package devices that use proven high-volume SMARTMOS® technology. NXP products offer longer battery life, a smaller form factor, reduced component counts, lower cost and improved performance in powering state of the art systems.

The tool can be used in a standalone mode and controlled with an embedded USB interface. SPI command is easily controlled by the FlexGUI downloadable here.

Product Details

Supported Devices

Power Management

System Basis Chips

  • FS6500: Grade 1 and Grade 0 Safety Power System Basis Chip with CAN Flexible Data Transceiver

Processors and Microcontrollers

KL Series Arm Cortex-M0+

  • KL2x: Kinetis® KL2x-72/96 MHz, USB Ultra-Low-Power Microcontrollers (MCUs) based on Arm® Cortex®-M0+ Core

Features

Connectivity

  • CAN FD and LIN bus (LIN exclusive with FS1B)
  • FS0B and FS1B output pins (FS1B exclusive with LIN)
  • Connectors allowing easy access to digital signals
  • KL25Z MCU installed on board for easy connection to host computer on USB link with monitoring features

Power Management

  • VCORE configuration: 1.23 V, 3.3 V, 5.0 V
  • VCCA, VAUX configuration - 3.3 V or 5.0 V, with internal PMOS or external PNP
  • Vpre regulator with a Buck or Boost setting

Buy Options

KITFS6523CAEEVM-Image

Click to expand

  • KITFS6523CAEEVM
    Active

  • Evaluation kit - FS6523, System Basis Chip, DCDC 2.2 A Vcore FS1B LDT CAN.

    • Evaluation board
    • Cable, Mini USB A to B
    • 3x 10 pos Connector
    • 1x 2 pos Connector
  • $184.82 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 8
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
