Evaluation Kit for MC33908 Safety System Basis Chip

KIT33908LAEEVB
Active

Roll over image to zoom in

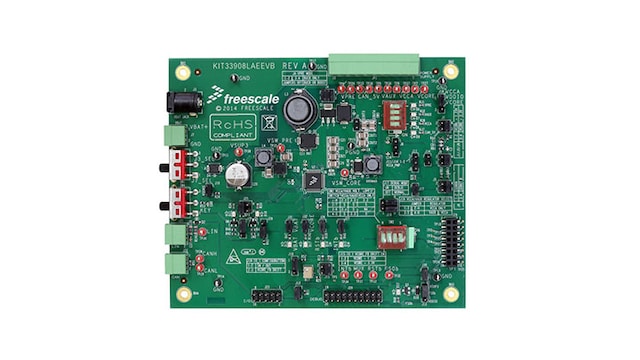

KIT33908LAEEVB evaluation board demonstrates the functionality of the MC33908 power system basis chips, respectively. These ICs are equipped with an Intelligent Power Management System including safety features targeting the latest ISO26262 automotive functional safety standard. The evaluation board is a standalone board that can be used either with a compatible microcontroller or with a PC. In the latter case, it is necessary to use an SPI/USB accessory interface board.

Supported Devices

Power Management

System Basis Chips

  • MC33908: Safe System Basis Chip with Buck and Boost DC/DC up to 1.5 A on Vcore

Features

Connectivity

  • LIN bus
  • CAN-bus
  • IO connector (IO_0 to IO_5)

Power Management

  • VBAT power supply either through power jack (2 mm) or phoenix connector
  • VCORE configuration: 1.23 V or 3.3 V
  • VCCA configuration:
    • 5.0 V/3.3 V
    • Internal transistor or external PNP
  • VAUX configuration:
    • 3.3 V or 5.0 V
    • Enabled or disabled at startup

Debug

  • Debug connector (SPI bus, CAN digital, LIN digital, RSTb, FSOb, INTb, Debug, MUX_OUT)

User Components

  • Ignition key switch
  • Signaling LED to give state of signals or regulators

Buy Options

KIT33908LAEEVB-Image

Click to expand

  • KIT33908LAEEVB
    Active

  • Evaluation kit - MC33908, Safe System Basis Chip with Buck and Boost and LIN.

    • Assembled and tested evaluation board/module in anti-static bag
    • Quick Start Guide, Analog Tools
    • Warranty card
  • $200.51 USD
  • For a quantity of 1
    • Availability: Pending Stock
ADD TO CART
Order from distributors
N true 0 TSPKIT33908LAEEVBen 7 Application Note Application Note t789 1 Data Sheet Data Sheet t520 1 User Guide User Guide t792 5 en_US 3 1 2.0 English KIT33907AEEVB and KIT33908AEEVB evaluation boards demonstrate the functionality of the SMARTMOS<sup>&#174;</sup> MC33907 and MC33908 power system basis chips, respectively. 1393519655328709920343 TSP 5.9 MB None None documents Y None 1393519655328709920343 /docs/en/user-guide/KT33907_8AEUG.pdf 5896777 /docs/en/user-guide/KT33907_8AEUG.pdf KT33907_8AEUG N N 2016-10-31 KIT33907AEEVB and KIT33908AEEVB, Evaluation Board - User Guide /docs/en/user-guide/KT33907_8AEUG.pdf /docs/en/user-guide/KT33907_8AEUG.pdf User Guide N Y 132339537837198660 2024-01-19 pdf N en Mar 3, 2014 User Guide t792 User Guide User Guide Y N KIT33907AEEVB and KIT33908AEEVB, Evaluation Board - User Guide 2 MC33907LAE,MC33907NAE,MC33908LAE,MC33908NAE 6.0 English The 33907/33908 SMARTMOS<sup>&#174;</sup> devices area multi-output, power supply, integrated circuit, including HSCAN and/or LIN transceivers, dedicated to the automotive market. 1418927036906726371752 TSP 1.7 MB None None documents None 1418927036906726371752 /docs/en/data-sheet/MC33907-MC33908D2.pdf 1684196 /docs/en/data-sheet/MC33907-MC33908D2.pdf MC33907-MC33908D2 N N 2016-11-09 MC33907-MC33908D2, Power System Basis Chip with High Speed CAN and LIN Transceivers - Data Sheet /docs/en/data-sheet/MC33907-MC33908D2.pdf /docs/en/data-sheet/MC33907-MC33908D2.pdf Data Sheet N Y 980000996212993340 2024-09-09 pdf N en Jun 30, 2019 Data Sheet t520 Data Sheet Data Sheet Y N MC33907-MC33908D2, Power System Basis Chip with High Speed CAN and LIN Transceivers - Data Sheet 3 1.0 English KIT33907LAEEVB and KIT33908LAEEVB evaluation boards demonstrate the functionality of the SMARTMOS<sup>&#174;</sup> MC33907 and MC33908 power system basis chips, respectively. 1424452414325693327737 TSP 4.2 MB None None documents Y None 1424452414325693327737 /docs/en/user-guide/KT33907-33908LUG.pdf 4162563 /docs/en/user-guide/KT33907-33908LUG.pdf KT33907-33908LUG N N 2016-10-31 KT33907-33908LUG, KIT33907LAEEVB and KIT33908LAEEVB Evaluation Board - User’s Guide /docs/en/user-guide/KT33907-33908LUG.pdf /docs/en/user-guide/KT33907-33908LUG.pdf User Guide N Y 132339537837198660 2024-01-19 pdf N en Feb 18, 2015 User Guide t792 User Guide User Guide Y N KT33907-33908LUG, KIT33907LAEEVB and KIT33908LAEEVB Evaluation Board - User’s Guide true en_US 3 4 4.0 English Evaluation Board Documentation 1208378979770700388811 TSP 252.7 KB None None documents Y None 1208378979770700388811 /docs/en/user-guide/KTSPIGENSIUG.pdf 252666 /docs/en/user-guide/KTSPIGENSIUG.pdf KTSPIGENSIUG N N 2016-10-31 KTSPIGENSIUG, Installation Notes for SPIGen /docs/en/user-guide/KTSPIGENSIUG.pdf /docs/en/user-guide/KTSPIGENSIUG.pdf User Guide N 132339537837198660 2022-12-07 pdf N en Oct 9, 2009 User Guide t792 User Guide User Guide Y N KTSPIGENSIUG, Installation Notes for SPIGen 5 3.0 English Evaluation Board Documentation 1208378977815710359391 TSP 347.1 KB None None documents Y None 1208378977815710359391 /docs/en/user-guide/KTSPIGENHELPUG.pdf 347130 /docs/en/user-guide/KTSPIGENHELPUG.pdf KTSPIGENHELPUG N N 2016-10-31 KTSPIGENHELPUG, SPIGen Help Instructions /docs/en/user-guide/KTSPIGENHELPUG.pdf /docs/en/user-guide/KTSPIGENHELPUG.pdf User Guide N 132339537837198660 2024-01-19 pdf N en Oct 9, 2009 User Guide t792 User Guide User Guide Y N KTSPIGENHELPUG, SPIGen Help Instructions 6 1.0 English Version 5.0.X of the SPIGen program has several new features that were added to support the new USB to SPI interface and the latest NXP evaluation board products that incorporate the USB to SPI feature. 1258751742906730267133 TSP 192.9 KB None None documents Y None 1258751742906730267133 /docs/en/user-guide/KTUSBADSPIug.pdf 192874 /docs/en/user-guide/KTUSBADSPIug.pdf KTUSBADSPIUG N N 2016-10-31 USB Additions to SPIGen /docs/en/user-guide/KTUSBADSPIug.pdf /docs/en/user-guide/KTUSBADSPIug.pdf User Guide N 132339537837198660 2024-01-19 pdf N en Oct 15, 2007 User Guide t792 User Guide User Guide Y N USB Additions to SPIGen false en Application Note Application Note 1 7 7.0 English This application note provides design guidelines integrating MC33907_08 System Basis Chip in an automotive electric and electronic systems. 1391212964357715313069 TSP 2.2 MB None None documents None 1391212964357715313069 /docs/en/application-note/AN4766.pdf 2159279 /docs/en/application-note/AN4766.pdf AN4766 documents N N 2016-10-31 AN4766, MC33907_08 Safe System Basis Chip Hardware Design and Product Guidelines /docs/en/application-note/AN4766.pdf /docs/en/application-note/AN4766.pdf Application Note N 645036621402383989 2024-09-09 pdf N en Dec 7, 2023 645036621402383989 Application Note Y N AN4766, MC33907_08 Safe System Basis Chip Hardware Design and Product Guidelines false 0 KIT33908LAEEVB downloads en true 0 Y TSP Application Note 1 /docs/en/application-note/AN4766.pdf 2016-10-31 1391212964357715313069 TSP 7 Dec 7, 2023 Application Note This application note provides design guidelines integrating MC33907_08 System Basis Chip in an automotive electric and electronic systems. None /docs/en/application-note/AN4766.pdf English documents 2159279 None 645036621402383989 2024-09-09 N /docs/en/application-note/AN4766.pdf AN4766, MC33907_08 Safe System Basis Chip Hardware Design and Product Guidelines /docs/en/application-note/AN4766.pdf documents 645036621402383989 Application Note N en None Y pdf 7.0 N N AN4766, MC33907_08 Safe System Basis Chip Hardware Design and Product Guidelines 2.2 MB AN4766 N 1391212964357715313069 Data Sheet 1 /docs/en/data-sheet/MC33907-MC33908D2.pdf 2016-11-09 1418927036906726371752 TSP 2 Jun 30, 2019 Data Sheet Data Sheet The 33907/33908 SMARTMOS<sup>&#174;</sup> devices area multi-output, power supply, integrated circuit, including HSCAN and/or LIN transceivers, dedicated to the automotive market. None /docs/en/data-sheet/MC33907-MC33908D2.pdf English 1684196 None Data Sheet 2024-09-09 N /docs/en/data-sheet/MC33907-MC33908D2.pdf MC33907-MC33908D2, Power System Basis Chip with High Speed CAN and LIN Transceivers - Data Sheet /docs/en/data-sheet/MC33907-MC33908D2.pdf documents 980000996212993340 Data Sheet N Y en None Y t520 pdf 6.0 N N MC33907-MC33908D2, Power System Basis Chip with High Speed CAN and LIN Transceivers - Data Sheet 1.7 MB MC33907LAE,MC33907NAE,MC33908LAE,MC33908NAE MC33907-MC33908D2 N 1418927036906726371752 User Guide 5 /docs/en/user-guide/KT33907_8AEUG.pdf 2016-10-31 1393519655328709920343 TSP 1 Mar 3, 2014 User Guide User Guide KIT33907AEEVB and KIT33908AEEVB evaluation boards demonstrate the functionality of the SMARTMOS<sup>&#174;</sup> MC33907 and MC33908 power system basis chips, respectively. Y None /docs/en/user-guide/KT33907_8AEUG.pdf English 5896777 None User Guide 2024-01-19 N /docs/en/user-guide/KT33907_8AEUG.pdf KIT33907AEEVB and KIT33908AEEVB, Evaluation Board - User Guide /docs/en/user-guide/KT33907_8AEUG.pdf documents 132339537837198660 User Guide N Y en None Y t792 pdf 2.0 N N KIT33907AEEVB and KIT33908AEEVB, Evaluation Board - User Guide 5.9 MB KT33907_8AEUG N 1393519655328709920343 /docs/en/user-guide/KT33907-33908LUG.pdf 2016-10-31 1424452414325693327737 TSP 3 Feb 18, 2015 User Guide User Guide KIT33907LAEEVB and KIT33908LAEEVB evaluation boards demonstrate the functionality of the SMARTMOS<sup>&#174;</sup> MC33907 and MC33908 power system basis chips, respectively. Y None /docs/en/user-guide/KT33907-33908LUG.pdf English 4162563 None User Guide 2024-01-19 N /docs/en/user-guide/KT33907-33908LUG.pdf KT33907-33908LUG, KIT33907LAEEVB and KIT33908LAEEVB Evaluation Board - User’s Guide /docs/en/user-guide/KT33907-33908LUG.pdf documents 132339537837198660 User Guide N Y en None Y t792 pdf 1.0 N N KT33907-33908LUG, KIT33907LAEEVB and KIT33908LAEEVB Evaluation Board - User’s Guide 4.2 MB KT33907-33908LUG N 1424452414325693327737 /docs/en/user-guide/KTSPIGENSIUG.pdf 2016-10-31 1208378979770700388811 TSP 4 Oct 9, 2009 User Guide User Guide Evaluation Board Documentation Y None /docs/en/user-guide/KTSPIGENSIUG.pdf English 252666 None User Guide 2022-12-07 N /docs/en/user-guide/KTSPIGENSIUG.pdf KTSPIGENSIUG, Installation Notes for SPIGen /docs/en/user-guide/KTSPIGENSIUG.pdf documents 132339537837198660 User Guide N en None Y t792 pdf 4.0 N N KTSPIGENSIUG, Installation Notes for SPIGen 252.7 KB KTSPIGENSIUG N 1208378979770700388811 /docs/en/user-guide/KTSPIGENHELPUG.pdf 2016-10-31 1208378977815710359391 TSP 5 Oct 9, 2009 User Guide User Guide Evaluation Board Documentation Y None /docs/en/user-guide/KTSPIGENHELPUG.pdf English 347130 None User Guide 2024-01-19 N /docs/en/user-guide/KTSPIGENHELPUG.pdf KTSPIGENHELPUG, SPIGen Help Instructions /docs/en/user-guide/KTSPIGENHELPUG.pdf documents 132339537837198660 User Guide N en None Y t792 pdf 3.0 N N KTSPIGENHELPUG, SPIGen Help Instructions 347.1 KB KTSPIGENHELPUG N 1208378977815710359391 /docs/en/user-guide/KTUSBADSPIug.pdf 2016-10-31 1258751742906730267133 TSP 6 Oct 15, 2007 User Guide User Guide Version 5.0.X of the SPIGen program has several new features that were added to support the new USB to SPI interface and the latest NXP evaluation board products that incorporate the USB to SPI feature. Y None /docs/en/user-guide/KTUSBADSPIug.pdf English 192874 None User Guide 2024-01-19 N /docs/en/user-guide/KTUSBADSPIug.pdf USB Additions to SPIGen /docs/en/user-guide/KTUSBADSPIug.pdf documents 132339537837198660 User Guide N en None Y t792 pdf 1.0 N N USB Additions to SPIGen 192.9 KB KTUSBADSPIUG N 1258751742906730267133 true Y Tools
