S32M2 Integrated Solution for 12V Motor Control
Designed for 12V motor control applications, the S32M2 family, based on system-in-package (SiP) design, integrates high-voltage analog functionalities (MOSFET gate pre-drivers, physical communication interfaces - LIN/CAN FD, and voltage regulators) with a robust embedded MCU Core (S32K Arm® Cortex®-M4/M7 series core), ensuring high-performance and functional safety compliance with ISO 26262 up to ASIL B.
Key features include platform-based design of motor control edge nodes enabling faster time to market, advanced data analysis capabilities, inverter and motor diagnostic capabilities and advanced algorithms to minimize in-cabin noise.
Through compatibility with the NXP S32 Automotive Platform, the S32M2 Family enables seamless firmware over-the-air (FOTA) updates, software reuse and flexibility.
With attention to cost at the system level, S32M2 integrates voltage regulators, pulse-width modulators, analog to digital converters, timers and non-volatile memory to reduce overall component count and reduce board space in a 64-pin LQFP-EP package.
Product Details
Block Diagram
Choose a diagram:
Features
Compute
- 80 MHz Cortex-M4 core or 120 MHz Cortex-M7 core with single-precision floating point unit
Communications
- Integrated physical interface for CAN FD or LIN
Power Supply
- Integrated voltage regulator for operation from 12 V car battery
Functional Safety and Security
- Targeting ISO 26262 applications up to ASIL B
- Hardware security CSE or HSE compliant
- Safety documentation and SafeAssure community support
Analog Extension
- Integrated 3-phase MOSFET gate driver for driving BLDC or PMSM motors with programmable slew-rate control
- Integrated current sense measurement for single-shunt solution
Software
- Motor control software examples including model-based design approach
- Extended flash memory for AUTOSAR®, OS, diagnostics, bootloader, over-the-air updates
- Real-time drivers (RTD) for AUTOSAR and non-AUTOSAR OS
Part numbers include: S32M244CCABWKHST, S32M244LCABWKHST, S32M276CHABMKHST, S32M276LHABMKHST.
Buy/Parametrics
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Documentation
Quick reference to our documentation types.
1-5 of 9 documents
-
Data Sheet
S32M2xx Data Sheet
-
Reference Manual
S32M27x Reference Manual
-
Reference Manual
S32M24x Reference Manual
-
Application Note
AN12217: S32K1xx and S32M24x ADC Guidelines, Spec and Configuration
-
Application Note
AN14116 Hardware Design Guidelines for S32M2xx Microcontrollers
Design Resources
Hardware
Quick reference to our
board types.
4 hardware offerings
-

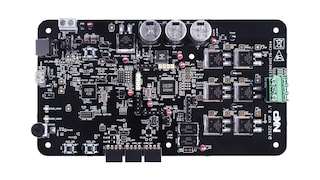

Evaluation and Development BoardsS32M276SFFRD Reference Design Board for Automotive Motor ControlFeatured
-
