The Kinetis® K60 100 MHz IEEE® 1588 Ethernet MCUs are built on the Arm® Cortex®-M4 core and feature advanced analog integration and serial communication. Available down to a 5 mm x 5 mm wafer-level chip-scale package (WLCSP), these devices maximize board space and enhance performance with minimum-length interconnections, allowing the miniaturization of existing applications. This family shares the comprehensive enablement and scalability of the Kinetis portfolio.

Data Sheet

Reference Manual

Product Details

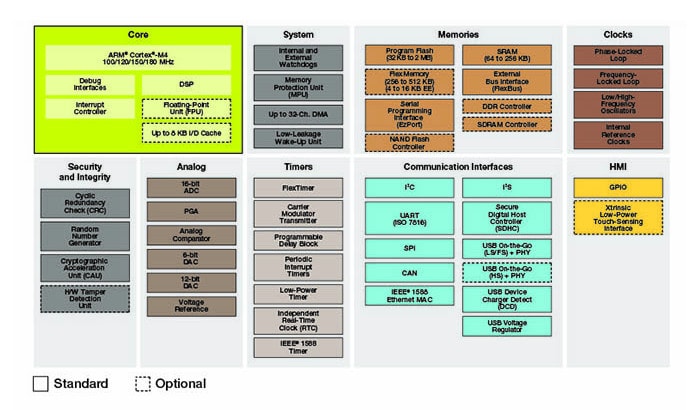

Block Diagram

Kinetis K6x MCU Family Block Diagram

Get diagram PDF

Features

Ultra-Low-Power

10 low-power modes with power and clock gating for optimal peripheral activity and recovery times. Stop currents down to 2 µA, and run currents of <350 µA/MHz, with 4 µs wake-up from Stop mode
Full memory and analog operation down to 1.71 volts for extended battery life
Low-leakage wake-up unit with up to eight internal modules and 16 pins as wake-up sources in low-leakage stop (LLS)/very low-leakage stop (VLLS) modes
Low-power timer for continuous system operation in reduced power state

Flash, SRAM and FlexMemory

256 KB - 512 KB flash. Fast access, high reliability with four-level security protection
64 KB-128 KB of SRAM
FlexMemory: 32 bytes-4KB of user-segmentable byte write/erase EEPROM for data tables/system data. EEPROM with over 10M cycles and flash with 70 µsec write time (brownouts without data loss/corruption). No user or system intervention to complete programming and erase functions and full operation down to 1.71 volts. In addition, up to 256 KB can be used for extra program code, data or EEPROM backup

Mixed-Signal Capability

Two high-speed 16-bit analog-to-digital-converter (ADC) with configurable resolution. Single or differential output mode operation for improved noise rejection. 863 ns conversion time achievable with programmable delay block triggering
Up two 12-bit digital-to-analog-converter (DAC) for analog waveform generation for audio applications
Three high-speed comparators providing fast and accurate motor over-current protection by driving PWMs to a safe state
Analog voltage reference provides an accurate reference to analog blocks, ADC and DAC, and replaces external voltage references to reduce system cost

Performance

Cortex-M4 core with DSP, 100MHz clock, single-cycle MAC, and single instruction multiple data (SIMD) extensions
16-channel DMA for peripheral and memory servicing with reduced CPU loading and faster system throughput
Crossbar switch enables concurrent multi-leader bus accesses, increasing bus bandwidth
Independent flash banks allow concurrent code execution and firmware updating with no performance degradation or complex coding routines

Timing and Control

Up to three FlexTimers with a total of 12 channels. Hardware dead-time insertion and quadrature decoding for motor control
Four-channel 32-bit periodic interrupt timer provides a time base for RTOS task scheduler or trigger source for ADC conversion and programmable delay block

Human-Machine Interface

Hardware touch-sensing interface with up to 16 inputs. Operates in all low power modes (minimum current adder when enabled). Hardware implementation avoids software polling method. High sensitivity level allows the use of overlay surfaces up to 5 mm thick

Connectivity and Communications

IEEE 1588 Ethernet MAC with hardware time stamping provides precision clock synchronization for real-time industrial control
USB 2.0 On-The-Go (full speed). Device charge detect optimizes charging current/time for portable USB devices enabling longer battery life. Low-voltage regulator supplies up to 120 mA off-chip at 3.3 volts to power external components from 5 volts input
Up to five UARTs with IrDA support including one UART with ISO7816 smart card support. Variety of data size, format and transmission/reception settings supported by multiple industrial communication protocols
Inter-IC Sound (I²S) serial interface for audio system interfacing
Two CAN modules for industrial network bridging
Three DSPI and two I²C

Reliability, Safety and Security

Hardware Encryption coprocessor for secure data transfer and storage. Faster than software implementations and with minimal CPU loading. Supports a wide variety of algorithms - DES, 3DES, AES, MD5, SHA-1, SHA-256
Memory protection unit provides memory protection for all leaders on the crossbar switch, increasing software reliability
Cyclic redundancy check engine validates memory contents and communication data, increasing system reliability
Independent-clocked COP guards against clock skew or code runaway for fail-safe applications such as the IEC 60730 safety standard for household appliances
External watchdog monitor drives output pin to safe state external components if watchdog event occurs
This product is included in NXP®'s product longevity program, with assured supply for a minimum of 10 years after launch

External Peripheral Support

FlexBus external bus interface provides interface options to memories and peripherals such as graphics displays. Supports up to 6 chip selects and 2GB addressable space
Secure digital host controller supports SD, SDIO, MMC or CE-ATA cards for in-application software upgrades, media files or adding Wi-Fi support
