12-key Capacitive Touch Keypad Plug-In for the Tower System

TWRPI-KEYPAD

Roll over image to zoom in

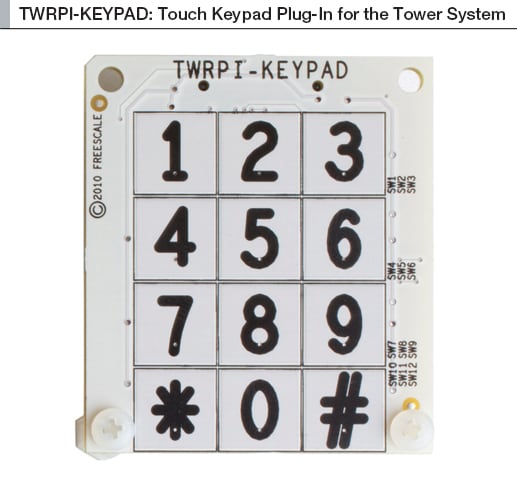

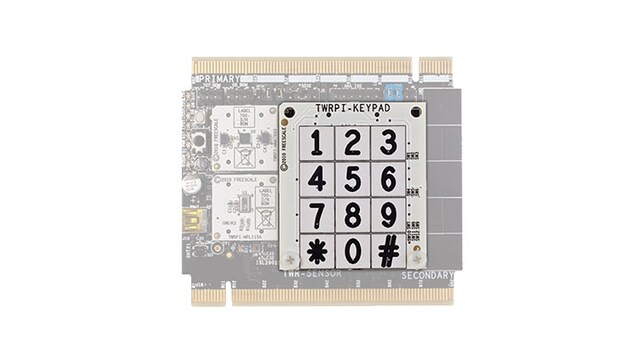

The TWRPI-KEYPAD capacitive touch keypad plug-in for the NXP® Tower® System lets you add keypad functionality to your embedded designs. This plug-in, or daughter card, is compatible with Tower System modules that feature touch pad Tower plug-in sockets. Simply place the TWRPI-KEYPAD onto a parent controller or peripheral module, and start prototyping quickly and easily. It's that simple and, quite literally, at your fingertips.

Product Details

Supported Devices

Processors and Microcontrollers

K6x Ethernet

  • K60_100: Kinetis® K60-100 MHz, Mixed-Signal Integration Microcontrollers based on Arm® Cortex®-M4 Core
  • K60_120: Kinetis® K60/61-120–150 MHz, Mixed-Signal Integration and Anti-Tamper Microcontrollers based on Arm® Cortex®-M4 Core

K7x Graphic LCD

  • K70_120: Kinetis® K70-120–150 MHz, High-Speed USB, Ethernet, DDR and Anti-Tamper Microcontrollers Based on Arm® Cortex®-M4 Core

Features

  • 12 discrete capacative electrodes
  • Electrodes are arranged in a 12-key numeric telephone-keypad layout
  • Supported by the TSS library
  • Compatible with Tower® System modules that feature Tower plug-in (TWRPI) sockets
