TWRPI-ROTARY - Schematics
Capacitive Touch Rotary Plug-In for the Tower System

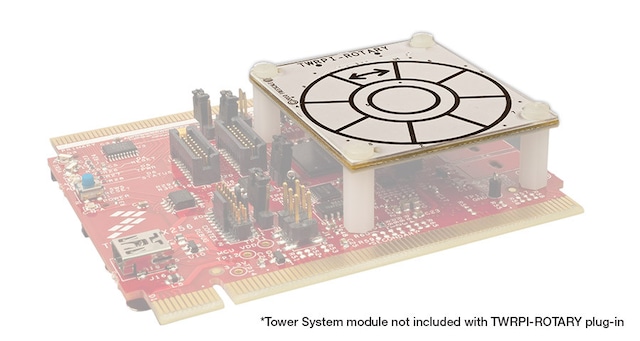

The TWRPI-ROTARY capacitive touch rotary plug-in for the Tower® System lets you add rotary touch to your embedded designs. This plug-in, or daughter card, is compatible with Tower System modules that feature touchpad Tower plug-in sockets. Simply place the TWRPI-ROTARY onto a parent controller or peripheral module, and start prototyping quickly and easily. It's that simple and, quite literally, at your fingertips.
Product Details
Features
- Discrete layout of rotary electrodes
- Center selection electrode
Connectivity
- Compatible with Tower® System modules that feature Tower plug-in (TWRPI) sockets
Support and Software
- Software detection of directional rotation
- Supported by the TSS library
