Epson Display Controller Tower System Module

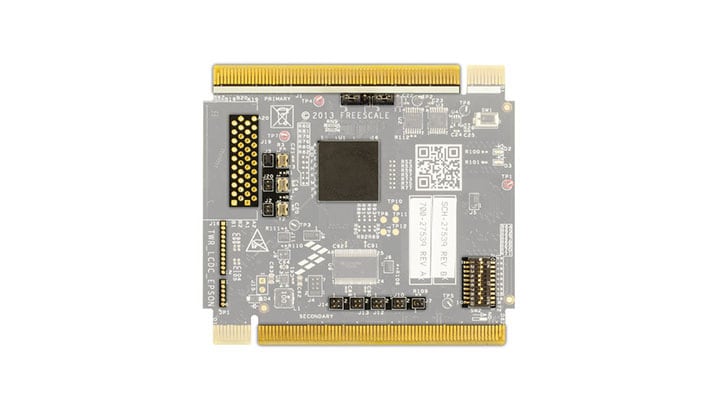

TWR-LCDC-EPSON Preproduction

Roll over image to zoom in

The NXP® TWR-LCDC-EPSON Epson Display Controller Module enables communication with RGB panels and is designed for use with Tower® System MCU/MPU modules that do not include on-board embedded LCD display controllers. Simply assemble it within your Tower System and the TWR-LCD-RGB graphical display module and your application is display-enabled. The TWR-LCDC-EPSON module can also be used to enable a second screen.

If you download an evaluation edition version of PEG Software, you can further request a demo and pre-compiled library for enabling for Graphical User Interface (GUI) development in your designs.

Product Details

Supported Devices

Processors and Microcontrollers

K6x Ethernet

  • K60_100: Kinetis® K60-100 MHz, Mixed-Signal Integration Microcontrollers based on Arm® Cortex®-M4 Core

Features

Microcontroller

  • Epson S1D13513 display controller

Memory

  • On-board SDRAM

Connectivity

  • Interfaces with a Tower® System controller module via the parallel external memory interface (EBI)
  • Interfaces directly with the TWR-LCD-RGB
  • Optional interfaces for externally connected RGB or LVDS display panels
  • Selectable SPI and I²C pass-thru interfaces for LCD/touch configurations

Support

  • PEG support drivers

Tower System assemblies featuring the TWR-LCDC-EPSON include
