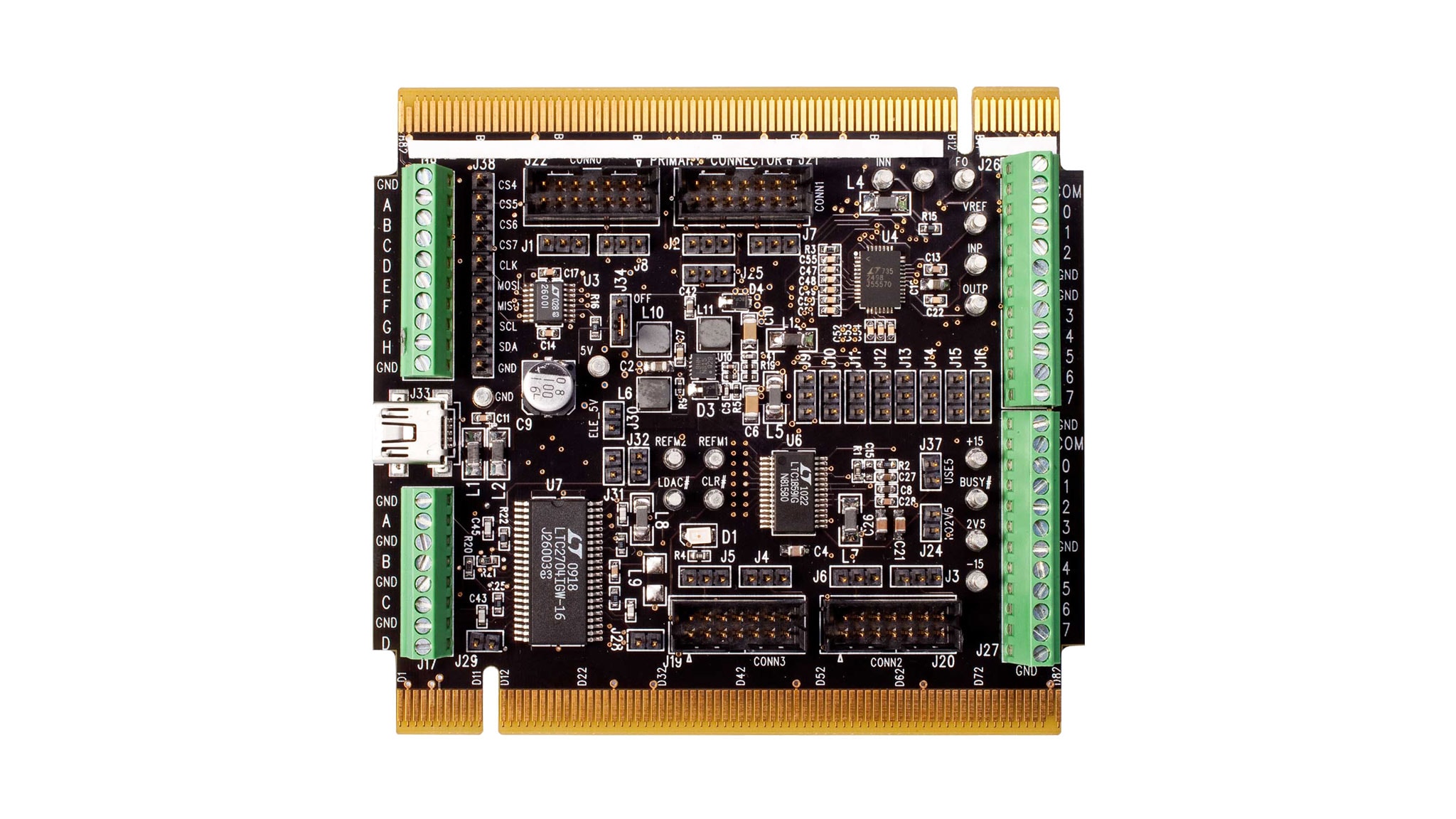

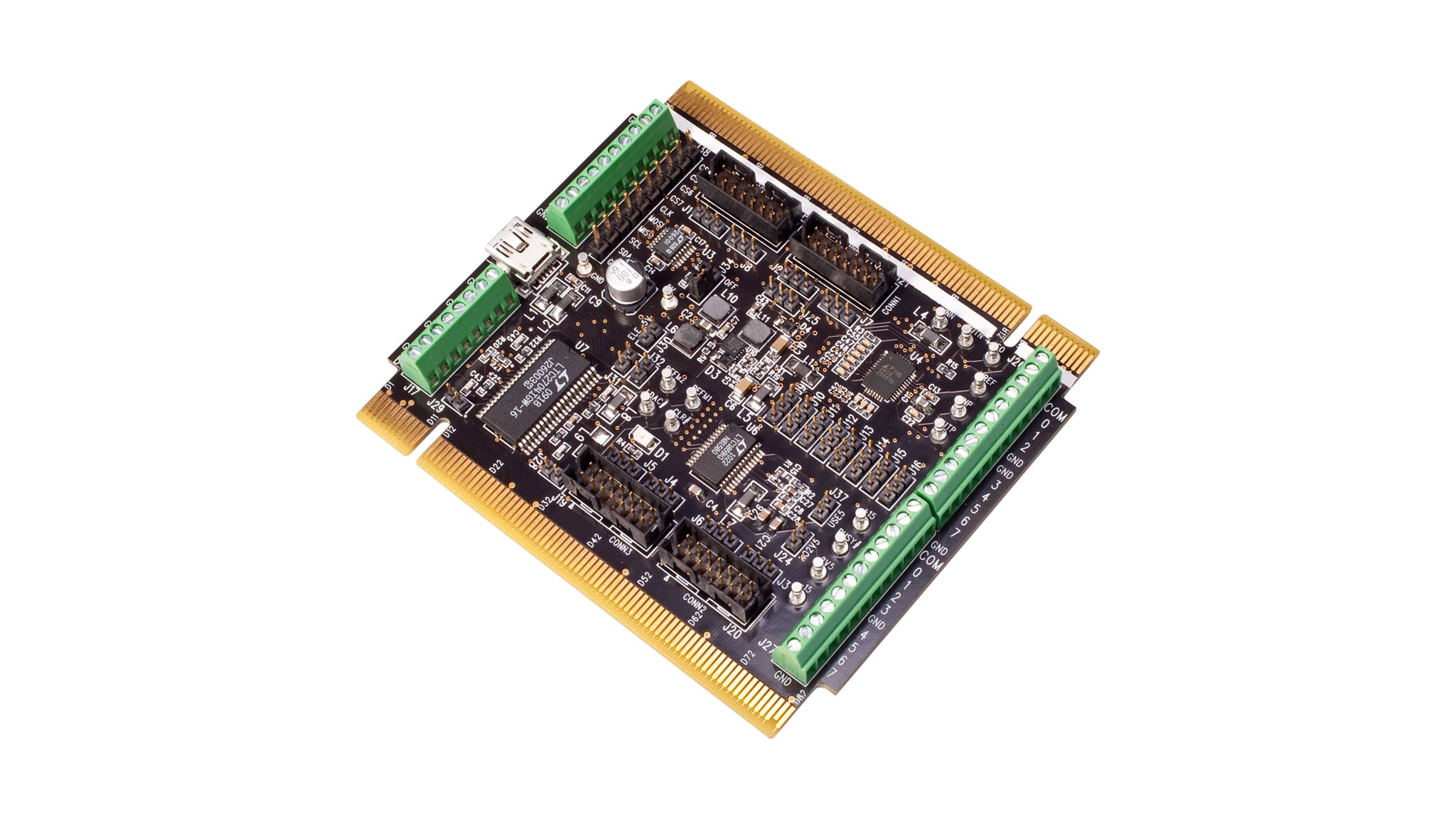

High-Precision Analog Tower System Module

TWR-ADCDAC-LTC Active

Roll over image to zoom in

Expand the capabilities of the Tower® System with the easy-to-use, plug-in analog module (TWR-ADCDAC-LTC) developed in conjunction with Linear Technology.

Quickly access the capabilities of the analog module via a simple configuration from the serial port (SPI or I2C), with read and write capabilities to the analog-to-digital converter (ADC) or the digital-to-analog converter (DAC). Add analog to a broad array of applications such as sensing, battery charging, medical, and more.

This peripheral module is designed to be combined and used with other MCU and peripheral modules in the Tower System.

Features

Connectivity

  • Controllable by any processor module with an SPI interface

Power Management

  • Linear Technology voltage regulator
    • LTC3471 – Dual 1.3A, 1.2 MHz boost/inverter
  • Linear Technology voltage reference
    • LTC6655-5 – 0.25 ppm noise, low drift precision buffered 5 V reference
  • High-precision analog peripheral module for the Tower System
  • Four 14-pin headers for connecting to any Linear Technology QuikEval™ demonstration board
  • Two Linear Technology digital-to-analog converters (DAC)
    • LTC2704-16 – Quad 16-bit voltage output SoftSpan DAC with readback
    • LTC2600 – Octal 16-bit Rail-to-Rail DACs
  • Two Linear Technology analog-to-digital converters (ADC)
    • LTC1859 – 8-channel, 16-bit, 100 ksps SoftSpan ADCs with shutdown
    • LTC2498 – 24-bit 8-/16-channel Delta Sigma ADC with Easy Drive input current cancellation

Buy Options

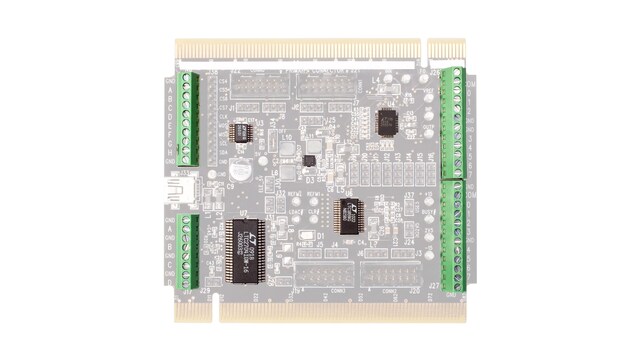

TWR-ADCDAC-LTC-Image

Click to expand

  • TWR-ADCDAC-LTC
    Active

  • Tower System, Peripheral Module, High Precision Analog.

    • TWR-ADCDAC-LTC analog module
    • Necessary cables
    • Quick Start Guide document
  • For a quantity of 1
Order from distributors
