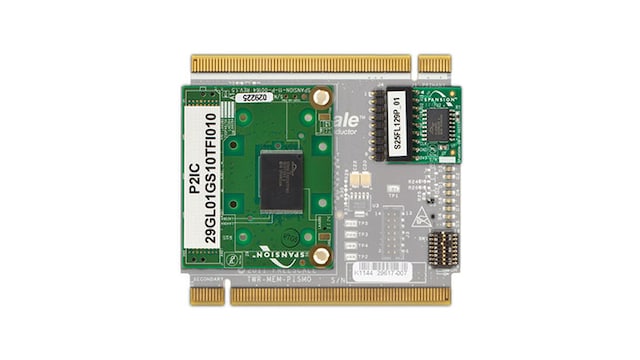

PISMO2 Memory Tower System Module
The TWR-MEM-PISMO provides access to a PISMO2 memory socket for evaluating a variety of memory types and sizes. Add this module to your Tower® System design, attach the PISMO2 memory module, and enjoy the legroom that additional memory brings..
This peripheral module is interchangeable across the Tower System, and is compatible with any MCU/MPU module that features an external memory interface, including the TWR-K60N512.
Product Details
Features
Memory
- Expandable memory platform compatible with the Tower® System
- PISMO2 Memory Socket that supports
- 16-bit ADM memory
- 16-bit ADP memory
- Burst NOR memory
- 4-bit / 8-bit eMMC
Connectivity
- MIO SPI connector that supports Expansion Multi-I/O SPI
Power Management
- Selectable I/O voltage for PISMO2 interface: 1.8 V or 3.3 V
Support
- CLPD supports a variety of FlexBus and LPC bus interfaces
Expansion Port
- Included Expansion 1 GB GL-S MirrorBit Eclipse flash PISMO2 module
- Included Expansion 128 MB MirrorBit SPI Multi-I/O flash module
