Tower System MFi Interface Module

TWR-DOCK2 Active

Roll over image to zoom in

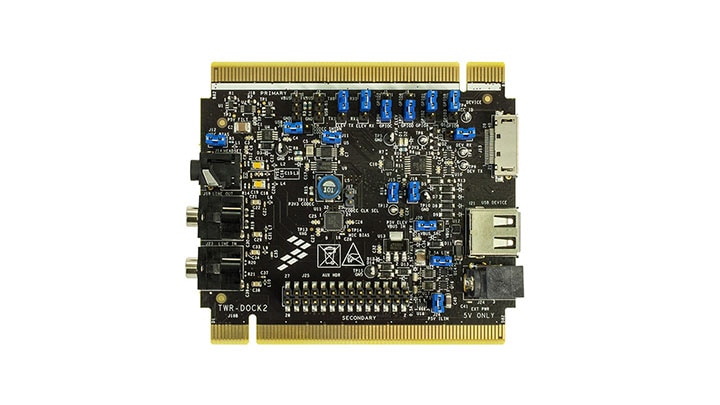

The NXP® TWR-DOCK2 module supports both Apple Lightning© and 30-pin accessory dock connectors for iPhone®, iPod® and iPad® devices, and includes a USB A receptacle for the standard USB to dock connector cable. The TWR-DOCK2 module enables digital audio streaming and includes the SGTL5000 audio codec to provide direct analog audio input and output support.

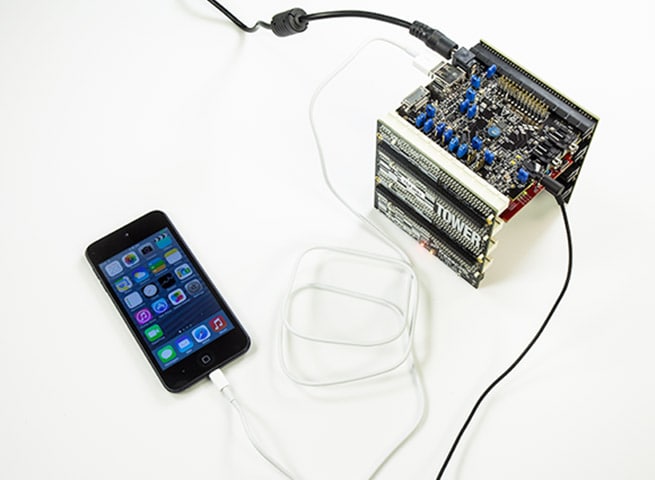

Designed to be combined and used with other modules in the Tower® System such as the TWR-K70F120M Arm® Cortex® -M4 based Kinetis® MCU and a wide range of other Tower System peripheral, sensor interface, and MCU/MPU modules.

TWR-DOCK2 is sold standalone and as part of complete Tower System development kits available through the MFi Program.

Product Details

Features

Connectivity

  • USB A receptacle for connecting to iPhone, iPad, or iPod via standard USB to Lightning or 30-pin cable
  • Optional Lightning and 30-pin dock connector cables supporting all digital accessory dock connections to iPhone, iPad, and iPod devices

Power Management

  • Includes global power supply

Audio

  • Hardware audio codec SGTL5000 with analog stereo audio line out, line in, and headset 3.5 mm connections
  • Digital audio input and output are transferred via the USB connection

Support

  • Useable with various Tower® System processor and peripheral modules
