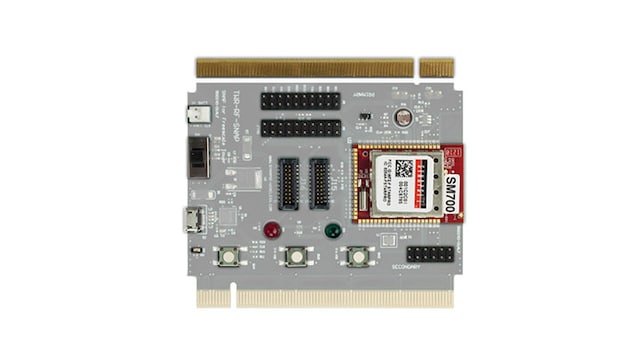

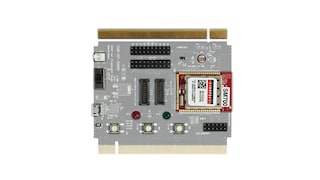

RF Wireless Mesh Networking Tower System Module

TWR-RF-SNAP Preproduction

Roll over image to zoom in

Are you looking to add mesh networking connectivity to your product design? Are you designing applications that require wireless control and monitoring? The TWR-RF-SNAP peripheral module is the ideal solution for your Tower® System designs.

This FCC-certified Tower System module comes with the SM700 802.15.4 RF Engine from Synapse Wireless, based on the NXP® MC13224 module, and SNAPpy control software to get you connected quickly.

Product Details

Features

Connectivity

  • MicroUSB connector provides power and serial connectivity
  • Access to additional GPIOs on SM700 via header bloc
  • Configurable access to Tower® Elevator connector allows for interaction with other Tower modules (UART, SPI, and I²C)

Power Management

  • Multiple powering options

Wireless

  • Features the SM700 802.15.4 RF Engine from Synapse Wireless, based on the NXP® MC13224 module

Expansion Port

  • On-board TWRPI connector for the addition of standard NXP TWRPI modules

User Components

  • Push-button inputs and user controlled LEDs On-board low-power linear active thermistor and light sensor

Tools and OS Support

  • Preloaded with SNAP Network Operating System
