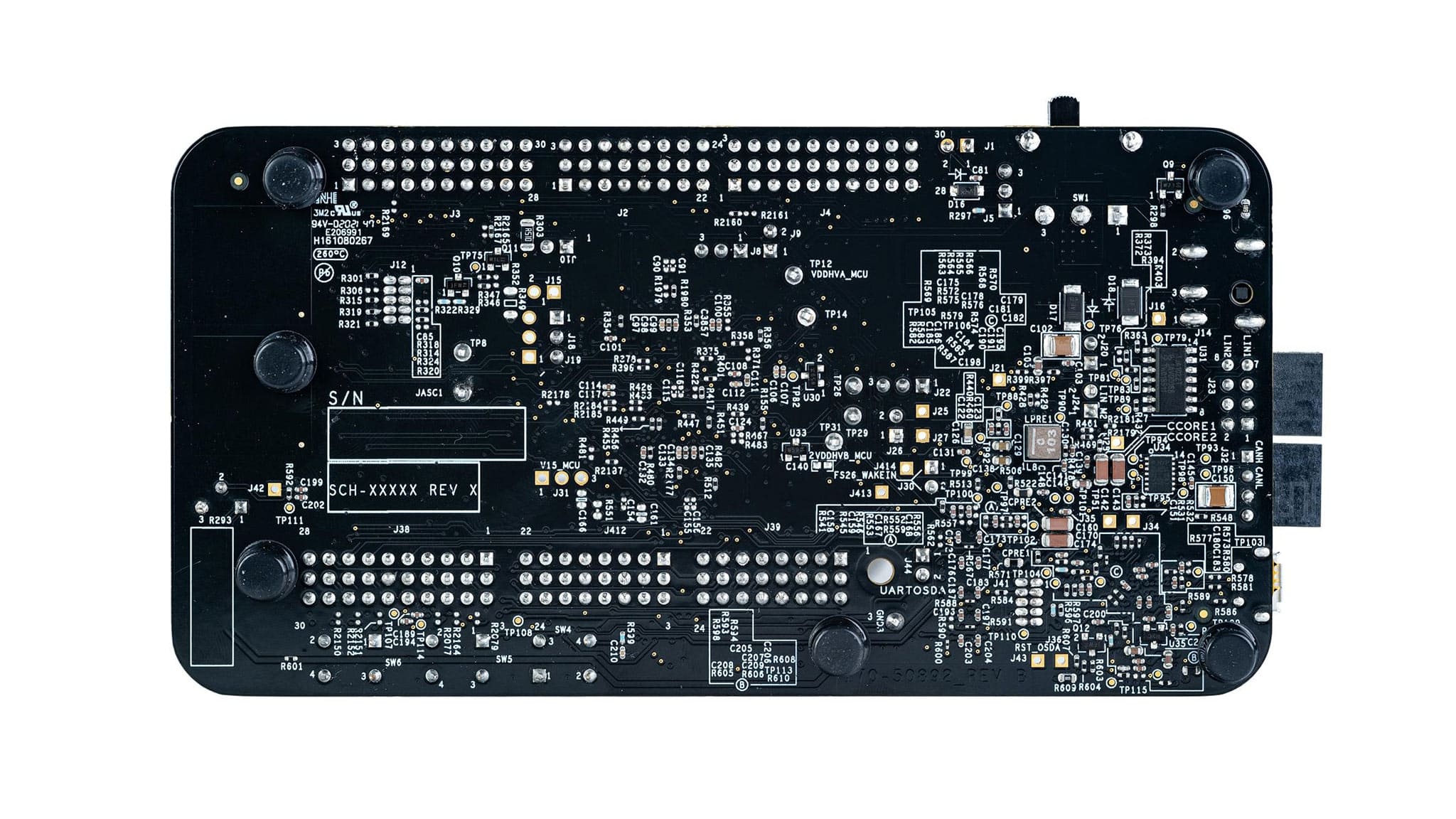

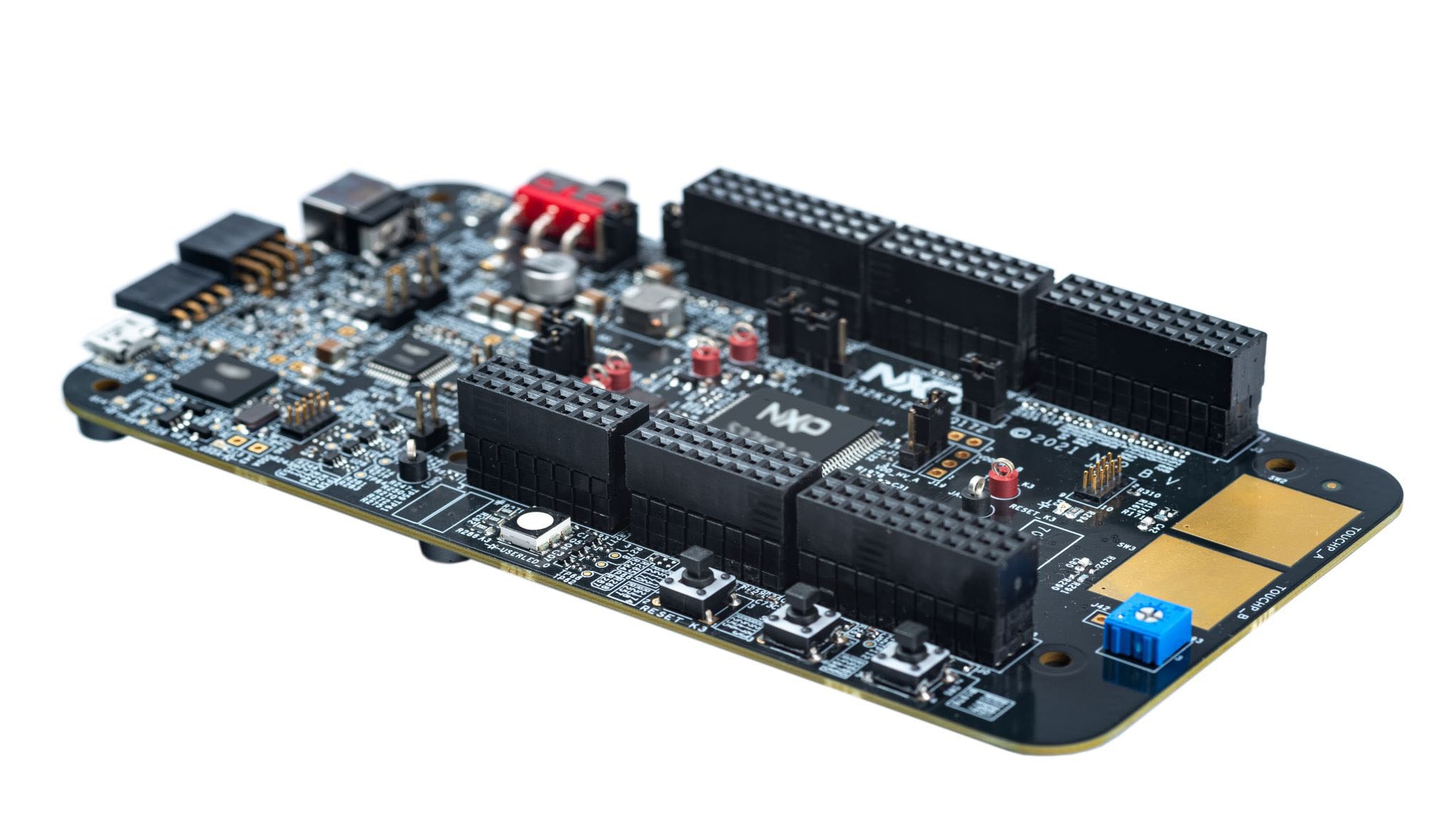

The S32K312EVB-Q172 is an evaluation and development board for general-purpose industrial and automotive applications.

Based on the 32-bit Arm^®Cortex^®-M7 S32K3 MCU in a 172 HDQFP package, the S32K312EVB-Q172 offers a single core mode, HSE security engine, OTA support, advanced connectivity and low power.

The S32K312EVB-Q172 offers a standard-based form factor compatible with the Arduino^® UNO pin layout, providing a broad range of expansion board options for quick application prototyping and demonstration.

Design Files

Software

Product Details

Block Diagram

Choose a diagram:

S32K312EVB-Q172
S32K3 Family

S32K312EVB-Q172

S32K3 Family

Get diagram PDF

Supported Devices

Interfaces

3.3 V / 5 V IO CAN Transceivers

TJA1043: High-Speed CAN Transceiver with Standby and Sleep Mode

Automotive LIN Solutions

TJA1022: Dual LIN 2.2A/SAE J2602 Transceiver

Power Management

System Basis Chips

FS26: Safety System Basis Chip with Low Power, for ASIL D Systems

Processors and Microcontrollers

S32K Auto General-Purpose MCUs

S32K3: S32K3 Microcontrollers for Automotive General Purpose

K2x / KS2x USB

K26_180: Kinetis^® K26-180 MHz, Dual High-Speed and Full-Speed USBs, 2MB Flash Microcontrollers (MCUs) based on Arm^® Cortex^®-M4 Core

Features

Hardware Features

Power supply switch
MCU voltage/current measurement
User RGB LED
2x user push-buttons
ADC rotary potentiometer
2x touch pad electrode

Software Features

Free of charge real-time drivers for AUTOSAR^® and non-AUTOSAR use and ASIL D compliant
Configuration tools for both AUTOSAR and non-AUTOSAR users
Free of charge security firmware: SHE+ compliant NXP supplied, designed for ISO 21434
S32 Safety Software Framework (SAF): Six fault detection and reaction libraries
Free of charge Safety Peripheral Drivers (SPD)
Structural Core Self-Test (SCST)
Free of charge Inter-Platform Communication Framework (IPCF): Middleware for multicore, multi-OS communication in single- and multichip systems
Free of charge Model-Based Design Toolbox for MATLAB^®: NXP supplied plug-in for Simulink^® environment

Compatibility

Arduino UNO pinout compatible with expansion "shield" support

Interfaces

On-board CAN FD
On-board LIN
SWD/JTAG debug interface for S32K3 debugger

Enablement

Free of charge S32 Design Studio IDE (Eclipse, GCC and debugger) and S32 Config Tool (pins, clocks, peripherals) with third-party compilers and debuggers

Buy Options

Click to expand

S32K312EVB-Q172
S32K312EVB-Q172 Evaluation and Development Board for General-Purpose Industrial and Automotive applications.
Kit Contains
- S32K312EVB-Q172 evaluation board
- Cables and connectors not included

$219.00 USD
For a quantity of 1
- Availability: In Stock
- Inventory: 30
- Shipping: Normally ships 1-2 business days

ADD TO CART

Order from distributors

Distributor	Region	Inventory	Inventory Date	Order

Upon selection of a preferred distributor, you will be directed to their web site to place and service your order. Please be aware that distributors are independent businesses and set their own prices, terms and conditions of sale. NXP makes no representations or warranties, express or implied, about distributors, or the prices, terms and conditions of sale agreed upon by you and any distributor.
