Digital Signal Controllers
The MC56F84xxx is based on our 32-bit DSP core.
A high speed digital signal controller, offering exceptional precision, sensing and control for a very efficient digital power conversion and advanced motor control applications.
The MC56F84xxx includes advanced high-speed and high-accuracy peripherals.
Product Details

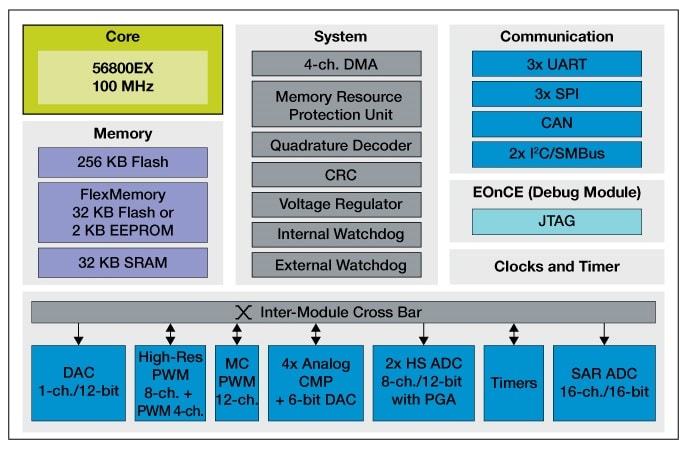

Block Diagram
Features
- 100 MHz/100 MIPS 32-bit DSP core
- 64 KB to 256 KB flash memory flexibility and Direct Memory Access (DMA) controller
- Single-cycle math computations, fractional arithmetic support and parallel moves
- Up to 24 PWM channels with input capture
- Hi-res PWMs with 312 pico-second resolution
- 2x 12-bit high-speed (HS) ADCs with 3.3 Msps resolution
- 1x 16-bit ADC with 1 Msps resolution
- 4 analog comparators with integrated 6-bit DACs speed system event identification and shutdown of the PWM outputs
- 1 12-bit DAC with auto waveform generation
- Various communication peripherals: 3 QSCIs; 3 QSPIs; 2 I²C/SMBus; 1 FlexCAN
- This product is included in our product longevity program, with assured supply for a minimum of 15 years after launch
Part numbers include: MC56F84441VLF, MC56F84442VLH, MC56F84451VLF, MC56F84452VLH, MC56F84462VLH, MC56F84540VLF, MC56F84543VLH, MC56F84550VLF, MC56F84553VLH, MC56F84565VLK, MC56F84567VLL, MC56F84585VLK, MC56F84587VLL, MC56F84763VLH, MC56F84766VLK, MC56F84769VLL, MC56F84783VLH, MC56F84786VLK, MC56F84789VLL.
Related products
Digital Signal Controllers
Digital Signal Controller for Motor Control Applications
Digital Signal Controller
MC56F826xx and MC56F827xx Digital Signal Controllers
Digital Signal Controller for Auto and Industrial Applications
Digital Signal Controller with CAN for Industrial Applications
Buy/Parametrics
|
|
|
|
|
|
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Documentation
Quick reference to our documentation types.
1-5 of 79 documents
-
Product Brief
MC56F844x/5x/7x - Product BriefFeatured
-
Fact Sheet
Embedded Software and Motor Control LibrariesFeatured
-
Reference Manual
DSP56800E and DSP56800EX - Reference ManualFeatured
-
Data Sheet
MC56F847xx Advance Information - Data Sheet
-
Data Sheet
MC56F844xx Advance Information - Data Sheet
Design Resources
Hardware
Quick reference to our
board types.
1-5 of 8 hardware offerings
-

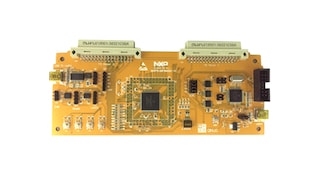

Evaluation and Development BoardsDSC MC56F84789 Motor and Power Control Tower System ModuleFeatured
-
