8-bit 5V Full-featured MCU with EEPROM
The S08PA MCUs integrate key features like EEPROM, ADC, Analog comparator, and a motor control flex timer to simplify design and to help reduce system cost.
The S08P family is simple, yet powerful, and offers excellent EFT/ESD performance. This scalable and pin-compatible MCU family reuses existing S08 core, IP and tools for easy migration from existing 8-bit S08 products. Our 5V 8-bit S08P MCU family gives your designs more durability and reliability in harsh industrial and user interface environments, meeting appliance safety standard IEC60730.
Product Details

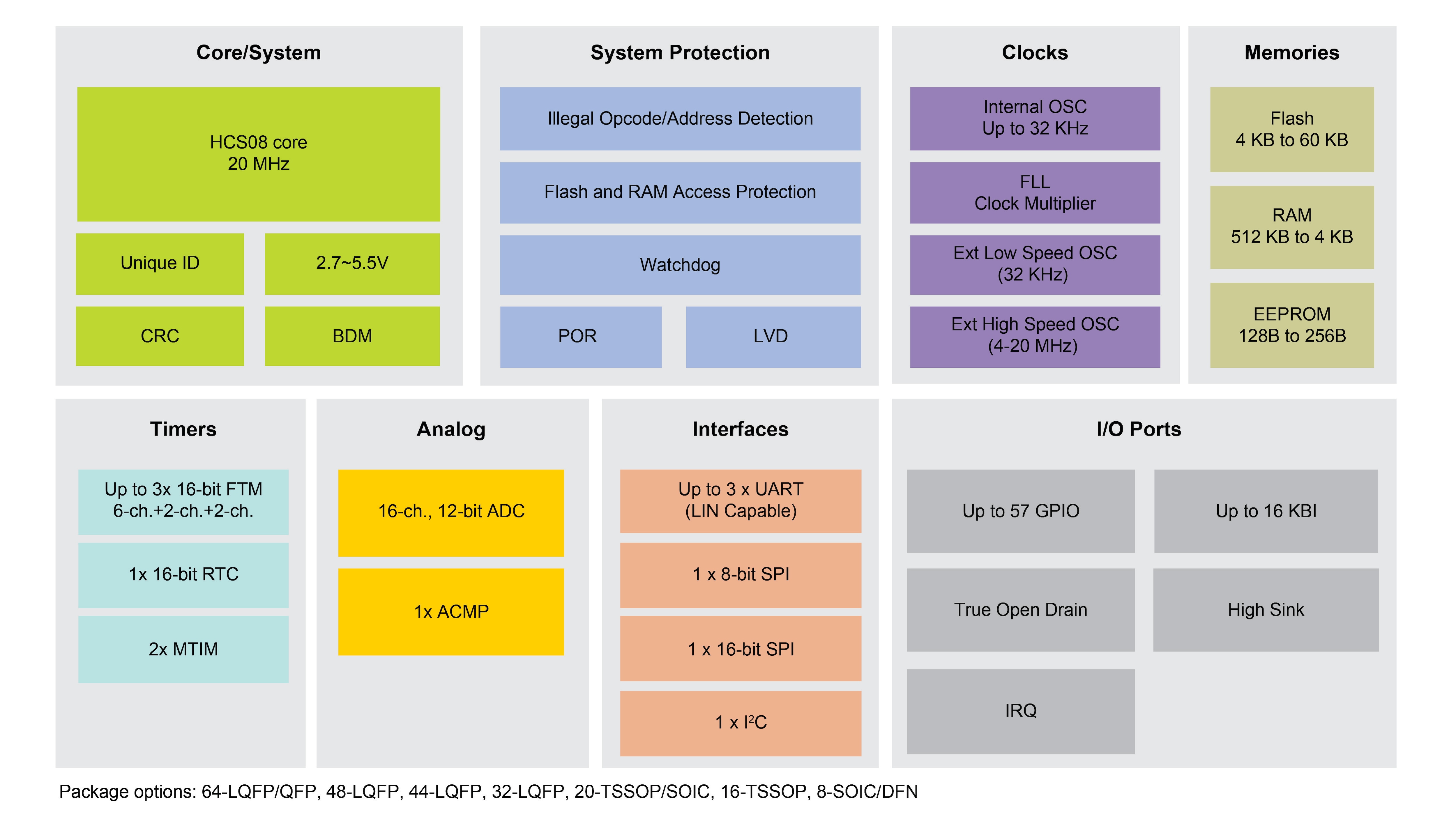

Features
Memory Combination
- Increased flash/RAM ratio (4 KB RAM in PT60)
- On-chip EEPROM with 500K~1M write/erase cycle
Robust GPIO and High Drive Capability
- Up to 57 GPIO with filtering in 64-pin
- Up to eight pins with 20 mA sink drive capability
- Two pins with true open drain
16-ch., 12-bit SAR ADC
- Linear successive approximation algorithm with up to 12-bit resolution on PT/PA class, 10-bit on PL class
- Up to 16-ch. single-ended external analog inputs
- 12-bit, 10-bit, and 8-bit modes, eight-deep result FIFO
- Single or continuous conversion (automatic return to idle after single conversion)
Feature-Rich Integration
- 6-ch. + 2-ch. + 2-ch. FlexTimer: 2 x MTIM
- Real-time counter
- 3 x SCI, 2 x SPI, I2C
- Enhanced watchdog and programmable CRC
- High accuracy internal clock

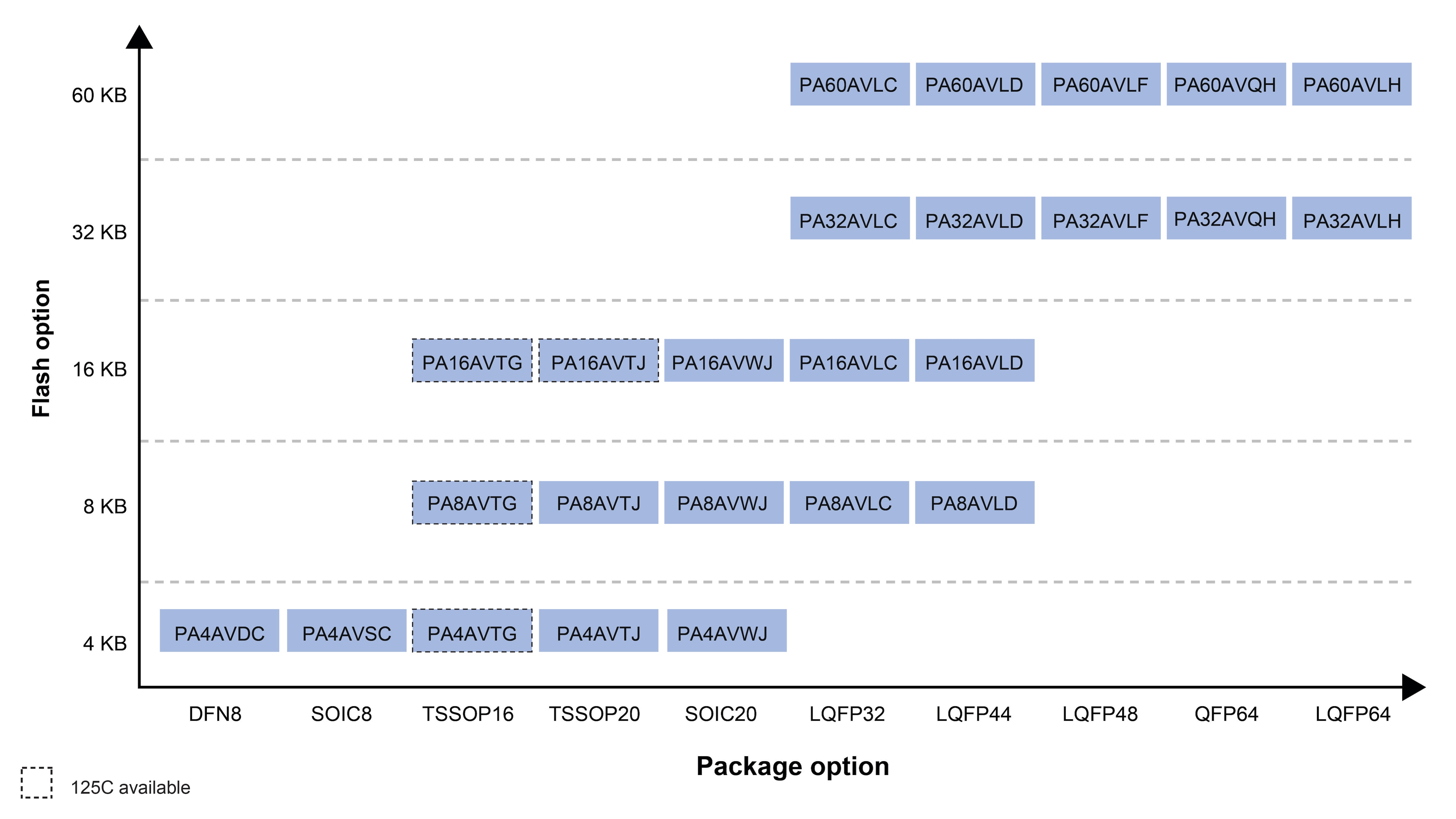

Part numbers include: MC9S08PA16AMTG, MC9S08PA16AMTJ, MC9S08PA16AVLC, MC9S08PA16AVLD, MC9S08PA16AVTG, MC9S08PA16AVTJ, MC9S08PA16AVWJ, MC9S08PA16VLC, MC9S08PA16VLD, MC9S08PA16VTG, MC9S08PA16VTJ, MC9S08PA16VWJ, MC9S08PA32AVLC, MC9S08PA32AVLD, MC9S08PA32AVLF, MC9S08PA32AVLH, MC9S08PA32AVQH, MC9S08PA32VLC, MC9S08PA32VLD, MC9S08PA32VLF, MC9S08PA32VLH, MC9S08PA32VQH, MC9S08PA4AVDC, MC9S08PA4AVSC, MC9S08PA4AVTG, MC9S08PA4AVTJ, MC9S08PA4AVWJ, MC9S08PA4MTG, MC9S08PA4VTG, MC9S08PA4VWJ, MC9S08PA60AVLC, MC9S08PA60AVLD, MC9S08PA60AVLF, MC9S08PA60AVLH, MC9S08PA60AVQH, MC9S08PA60VLC, MC9S08PA60VLD, MC9S08PA60VLF, MC9S08PA60VLH, MC9S08PA60VQH, MC9S08PA8AMTG, MC9S08PA8AVLC, MC9S08PA8AVLD, MC9S08PA8AVTG, MC9S08PA8AVTJ, MC9S08PA8AVWJ, MC9S08PA8VLC, MC9S08PA8VLD, MC9S08PA8VTG, MC9S08PA8VTJ, MC9S08PA8VWJ, MC9S08PA4AMSC.
