PCF8553 LCD Demo Board

OM13506 Active

Roll over image to zoom in

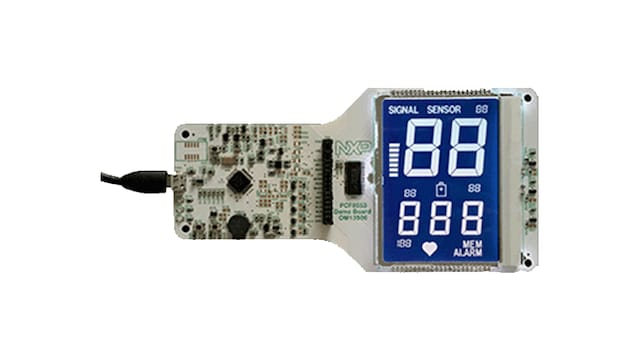

The OM13506 is an evaluation/demo board designed to evaluate and promote the PCF8553DTT LCD driver. Able to drive up to 160 segments in a configuration 40 segments x 4 backplanes, the PCF8553DTT is housed in the TSSOP56 package and it is optimized for low-voltage (minimum supply voltage 1.8 V), low-power (about 5 uA in mux 1:4 and all display elements enabled) and low-cost.

The OM13506 includes a custom circuit that allows measuring the current consumption on VDD and VLCD pins.

Product Details

Supported Devices

Interfaces

LCD Drivers

Features

Key Features

  • Specific circuits to measure the current consumption of the PCF8553DTT
  • LPC1549 microcontroller used to establish the USB connection
  • Standard alone mode, showing the PCF8553DTT main functionalities

Connectivity

  • GUI interface with full control of the LCD driver
  • USB connector is used to provide power supply to the board

User Components

  • Demonstrates PCF8553DTT LCD driver
  • TN display module with integrated RGB backlight

Buy Options

OM13506-Image

Click to expand

  • OM13506

  • PCF8553 LCD demo board.

    • OM13506 base board (marked on the board)
    • MicroUSB cable
    • Quick start guide

    The OM13506 is provided with a Graphical User interface (GUI) with the following features:

    • Real-time current consumption measurement on VDD and VLCD pins
    • Display layout available on the GUI allowing to switch ON/OFF each segments by single clicks
    • Graphical PCF8553DTT register map available
    • Source code (C language) generation based on the register map configuration
    • Plug and Play support. No connection button is needed, the software recognize the demo board and it establish the connection automatically
  • $56.11 USD
  • For a quantity of 1
Order from distributors
