LCD Direct/Duplex Driver with I²C-Bus Interface

PCF8577CT No Longer Manufactured
  • This page contains information on a product that is not recommended for new designs.

The PCF8577C is an LCD driver which drives up to 32 segments directly, or 64 segments in a duplex configuration.

The two-line I²C-bus interface substantially reduces wiring overheads in remote display applications. I²C-bus traffic is minimized in multiple IC applications by automatic address incrementing, hardware subaddressing and display memory switching (direct drive mode).To allow partial VDD shutdown, the ESD protection system of the SCL and SDA pins does not use a diode connected to VDD.

See product image

Product Details

Block Diagram

Choose a diagram:

PCF8577C

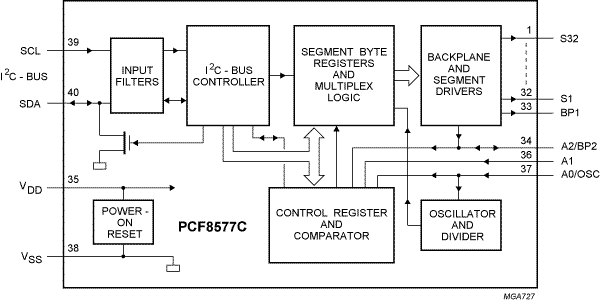

PCF8577C Block Diagram

PCF8577CT, PCF8577CU

Get diagram PDF

Features

Key Features

  • Direct/duplex drive modes with up to 32/64 LCD-segment drive capability per device
  • Operating supply voltage: 2.5 V to 6 V
  • Low power consumption
  • I²C-bus interface
  • Optimized pinning for single plane wiring
  • Single-pin built-in oscillator
  • Auto-incremented loading across device subaddress boundaries
  • Display memory switching in direct drive mode
  • May be used as I²C-bus output expander
  • System expansion up to 256 segments
  • Power-on reset blanks display
  • I²C-bus address: 0111 0100
