The S08PL MCUs integrate key features like EEPROM, 10-bit ADC, Analog comparator, and flexible timers to simplify design and to help reduce system cost.

The S08P family is simple, yet powerful, and offers excellent EFT/ESD performance. This scalable and pin-compatible MCU family reuses existing S08 core, IP and tools for easy migration from existing 8-bit S08 products. Our 5V 8-bit S08P MCU family gives your designs more durability and reliability in harsh industrial and user interface environments, meeting appliance safety standard IEC60730.

Data Sheet

Reference Manual

Product Details

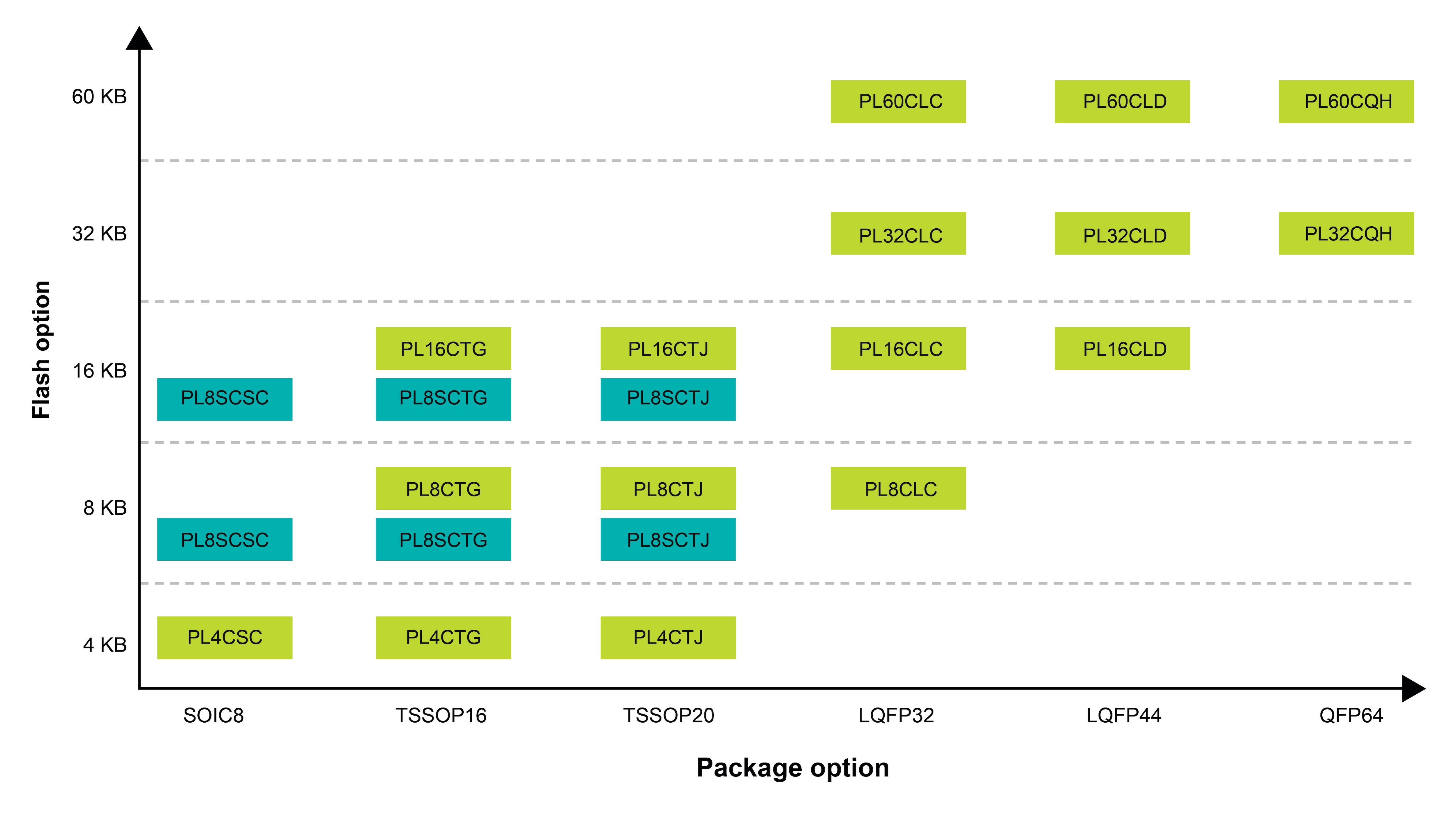

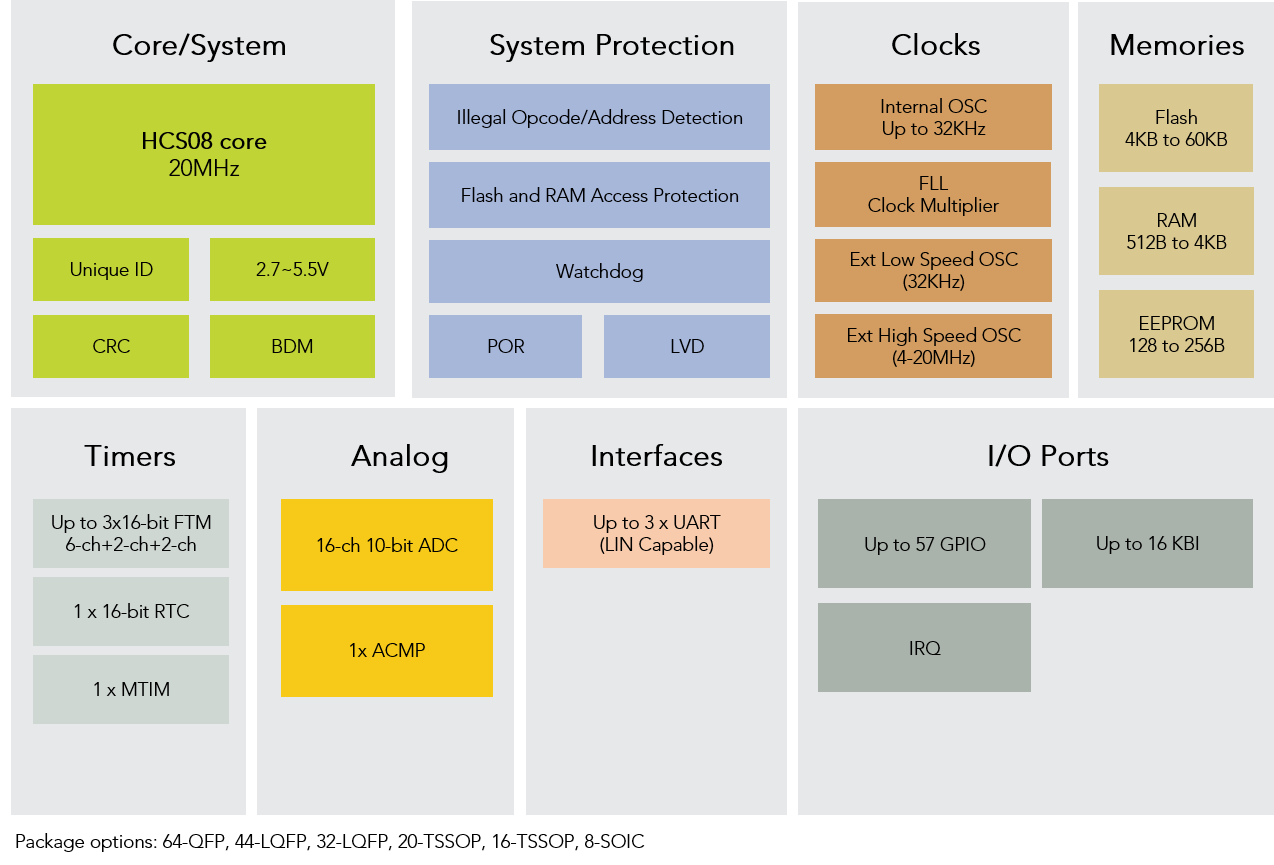

Features

Memory Combination

Increased flash/RAM ratio (4 KB RAM in PT60)
On-chip EEPROM with 500K~1M write/erase cycle

Robust GPIO

Up to 57 GPIO with filtering in 64-pin
Two pins with true open drain

16-ch., 10-bit SAR ADC

Linear successive approximation algorithm with up to 10-bit resolution
Up to 16-ch. single-ended external analog inputs
10-bit, and 8-bit modes, eight-deep result FIFO
Single or continuous conversion (automatic return to idle after single conversion)

Feature-Rich Integration

6-ch. + 2-ch. + 2-ch. FlexTimer: 1 x MTIM
Real-time counter
3 x SCI
Enhanced watchdog and programmable CRC
High accuracy internal clock

Buy/Parametrics

Part Show description	Status	Package Type	Package Termination Count	Budgetary Price excluding tax	Flash (kB)	RAM (kB)	Core Type	Operating Frequency [Max] (MHz)	Bus Frequency (typ) (MHz)	Supply Voltage [min] (V)	Supply Voltage [max] (V)	GPIO	Ambient Operating Temperature (Min to Max) (℃)	SCI
MC9S08PL16CLC Data Sheet	Active	LQFP32	32	10K @ US$0.89	16	2	S08	20	20	2.7	5.5	30	-40 to 85	2
MC9S08PL16CLD Data Sheet	Active	LQFP44	44	10K @ US$1.05	16	2	S08	—	20	2.7	5.5	37	-40 to 85	2
MC9S08PL16CTG Data Sheet	Active	TSSOP16	16	10K @ US$0.68	16	2	S08	20	20	2.7	5.5	14	-40 to 85	1
MC9S08PL16CTJ Data Sheet	Active	TSSOP20	20	10K @ US$0.73	16	2	S08	20	20	2.7	5.5	18	-40 to 85	1
MC9S08PL32CLC Data Sheet	Active	LQFP32	32	10K @ US$0.97	32	4	S08	20	20	2.7	5.5	30	-40 to 85	3
MC9S08PL32CLD Data Sheet	Active	LQFP44	44	10K @ US$1.05	32	4	S08	20	20	2.7	5.5	42	-40 to 85	3
MC9S08PL32CQH Data Sheet	Active	QFP64	64	10K @ US$1.32	32	4	S08	20	20	2.7	5.5	57	-40 to 85	3
MC9S08PL4CSC Data Sheet	Active	SO8	8	10K @ US$0.35	4	0.51	S08	20	20	2.7	5.5	6	-40 to 85	1
MC9S08PL4CTG Data Sheet	Active	TSSOP16	16	10K @ US$0.36	4	0.51	S08	20	20	2.7	5.5	14	-40 to 85	1
MC9S08PL4CTJ Data Sheet	Active	TSSOP20	20	10K @ US$0.43	4	0.51	S08	20	20	2.7	5.5	18	-40 to 85	1
