The Kinetis^® K10 120 MHz MCU family features advanced serial communication, analog integration and a customizable system expansion for medical, industrial, and consumer devices.

Includes analog, communication, control and timing peripherals to accommodate many different requirements
Targets performance-efficient applications
Offers the Kinetis portfolio’s shared comprehensive development support and scalability

Data Sheet

Reference Manual

Product Details

Block Diagram

Kinetis K1x MCU Family Block Diagram

Get diagram PDF

Features

Ultra-Low-Power

10 low-power modes with power and clock gating for optimal peripheral activity and recovery times. Stop currents of <500 nA, run currents of <200 µA/MHz, 4 µs wake-up from Stop mode
Full memory and analog operation down to 1.71 volts for extended battery life
Low-leakage wake-up unit with up to eight internal modules and 16 pins as wake-up sources in low-leakage stop (LLS)/very low-leakage stop (VLLS) modes
Low-power timer for continual system operation in reduced power state

Flash, SRAM and FlexMemory

512 KB-1 MB flash. Fast access, high reliability with four-level security protection
128 KB of SRAM
FlexMemory: 32 bytes-16 KB of user-segmentable byte write/erase EEPROM for data tables/system data. EEPROM with over 10M cycles and flash with 70 µsec write time (brownouts without data loss/corruption). No user or system intervention to complete programming and erase functions and full operation down to 1.71 volts. In addition, 512KB of FlexNVM for extra program code, data or EEPROM backup

Mixed-Signal capability

Up to four high-speed 16-bit analog-to-digital converter (ADC) with configurable resolution. Single or differential output mode operation for improved noise rejection. 500 ns conversion time achievable with programmable delay block triggering
Up to two 12-bit digital-to-analog converter (DAC) for analog waveform generation for audio applications
Up to four high-speed comparators providing fast and accurate motor over-current protection by driving PWMs to a safe state
Up to four programmable gain amplifiers with x64 gain for small amplitude signal conversion
Analog voltage reference provides an accurate reference to analog blocks, ADC and DAC, and replaces external voltage references to reduce system cost

Performance

Arm^® Cortex^®-M4 core + DSP. 120MHz, single cycle MAC, single instruction multiple data (SIMD) extensions, single precision floating point unit
Up to 32-channel DMA for peripheral and memory servicing with reduced CPU loading and faster system throughput
Cross bar switch enables concurrent multi-leader bus accesses, increasing bus bandwidth
Up to 16 KB of instruction/data cache for optimized bus bandwidth and flash execution performance
Independent flash banks allow concurrent code execution and firmware updating with no performance degradation or complex coding routines

Timing and Control

Up to four FlexTimers with a total of 20 channels. Hardware dead-time insertion and quadrature decoding for motor control
Carrier modulator timer for infrared waveform generation in remote control applications
Four-channel 32-bit periodic interrupt timer provides time base for RTOS task scheduler or trigger source for ADC conversion and programmable delay block

Human-Machine Interface

Hardware touch-sensing interface with up to 16 inputs. Operates in all low power modes (minimum current adder when enabled). Hardware implementation avoids software polling method. High sensitivity level allows use of overlay surfaces up to 5 mm thick

Connectivity and Communications

Up to six UARTs with IrDA support including one UART with ISO7816 smart card support. Variety of data size, format and transmission/reception settings supported for multiple industrial communication protocols
Inter-IC Sound (I²S) serial interface for audio system interfacing
Up to two CAN modules for industrial network bridging
Up to three DSPI and two I²C

Reliability, Safety and Security

Memory protection unit provides memory protection for all leaders on the cross bar switch, increasing software reliability
Cyclic redundancy check engine validates memory contents and communication data, increasing system reliability
Independent-clocked COP guards against clock skew or code runaway for fail-safe applications such as the IEC 60730 safety standard for household appliances
External watchdog monitor drives output pin to safe state external components if watchdog event occurs

Buy/Parametrics

‌ ‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌	‌ ‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌
‌ ‌ ‌	‌	‌	‌	‌	‌

Design Resources

Design Files

Quick reference to our design files types.

3 design files

Receive the full breakdown. See the product footprint and more in the eCad file.

Models
K10 120 MHz and 150 MHz IBIS Model Files

ZIPRev 1.3Dec 3, 2013 00:00:00758.4 KBK10_IBIS
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue
Symbols and Footprints
Kinetis^® Symbols, Footprints and Models

INTERNALRev 1.0Nov 27, 2017 11:23:001 KBCAD-SYMBOLFOOTPRINTS

Download
Calculators
TFS FlexMem Endurance Calculator

ZIPRev vBeta025Aug 1, 2014 00:00:003.2 MBTFS_FLEXMEM_CALCULATOR

Account Required
DownloadToggle Dropdown
- Add to Queue
- Remove from Queue
- Recommended for large file sizes.
- View Queue

Hardware

Quick reference to our board types.

1-5 of 12 hardware offerings

Evaluation and Development Boards

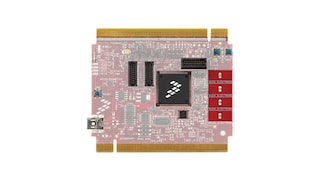

Kinetis K60 120 MHz Tower System ModuleFeatured
