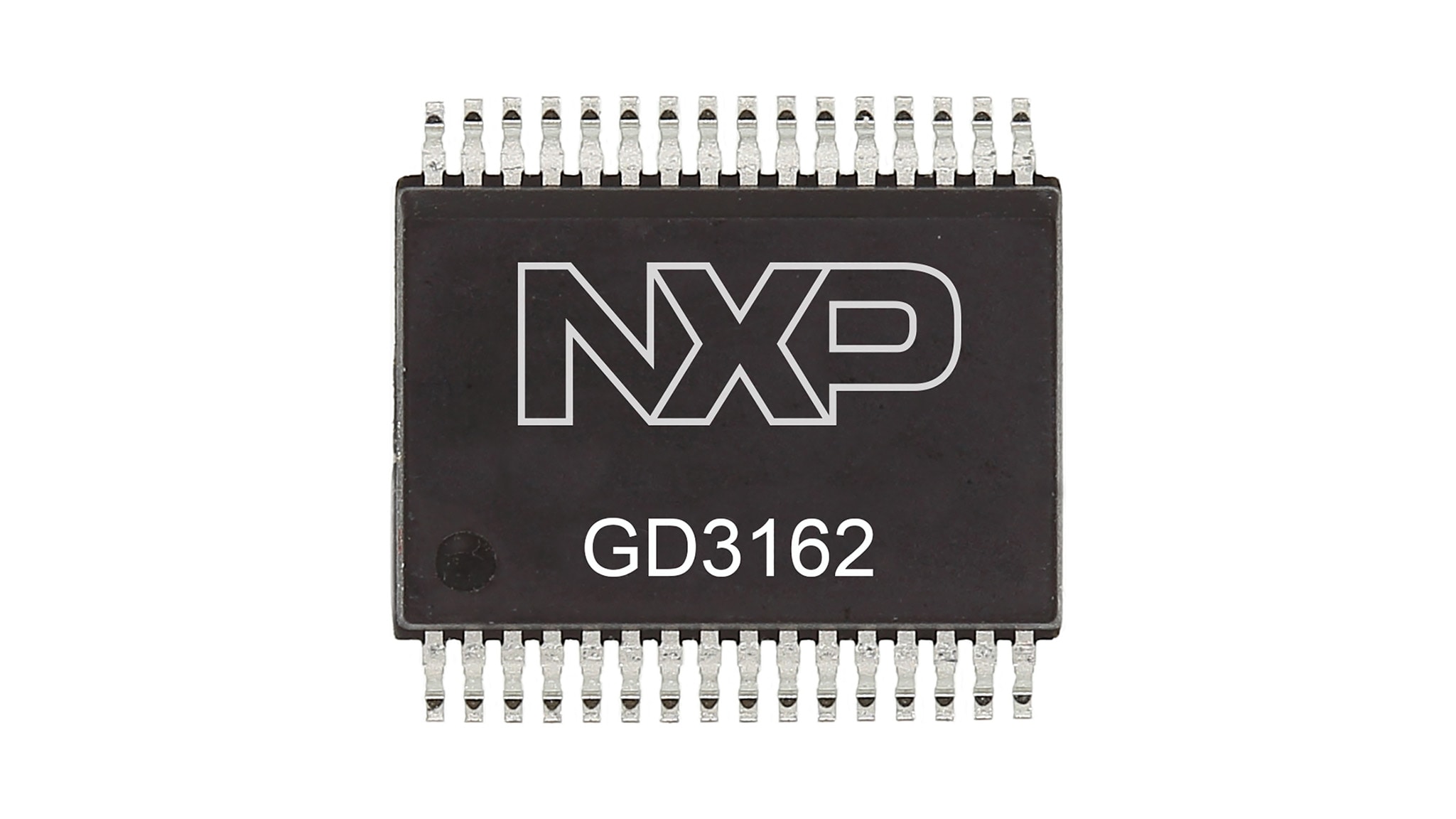

GD3162 | Advanced Single-Channel Gate Driver with Dynamic Gate Strength Control | NXP Semiconductors

Advanced High Voltage Isolated Gate Driver with Dynamic Gate Strength Control

Roll over image to zoom in

Block Diagram

GD3162

GD3162 Block Diagram

Features

Operation

  • Integrated boost capability for increased drive strength: Up to 10 / 20 / 30 A source/sink current
  • Max VCC output voltage: 25 V
  • Programmable ADC delay – Up to 8 μs sampling delay from rising or falling edge of PWM

Protection

  • Integrated HV temperature sensing (TSENSE) for NTC thermistor or diode sensors with programmable offset and gain
  • Fast VCE DeSat detection and reaction time: < 1 µs (SiC)
  • Improved PWM deadtime range for reduced switching losses (SiC)
  • Programmable two-level turn off (2LTO) and soft-shutdown (SSD)
  • Provides either MCU controlled or safety logic controlled gate drive to actively discharge the DC link capacitor

Functional Safety

  • Additional programmable fault pin (INTA)
  • Integrated HV fault management (FSISO)
  • Programmable VCE output monitoring

Insulation/Isolation

  • Minimum common mode transient immunity (CMTI) > 100 V/ns
  • 5,000 Vrms galvanic isolation per UL1577 (planned)

Buy/Parametrics

2 results

Include 0 NRND

Order

CAD Model

Status

Device Function

Logic Level (V)

Package Type

Package Termination Count

Budgetary Price excluding tax

Frequency (Max) (kHz)

Load Current (IL) [TYP] (A)

Number of Channels

Protection

Drain-to-Source On Resistance (Typ) (mOhm) (RDS(ON))

Load Supply Voltage (Min) (V)

Load Supply Voltage (Max) (V)

Supply Voltage [min] (V)

Supply Voltage [max] (V)

SPI [bits]

Ambient Operating Temperature (Min to Max) (℃)

ASIL Certification

Active

Advanced HV GDIC with dynamic gate strength, RDSonM, VT Detection

5

SSOP32

32

1K @ US$4.83

100

10, 20, 30

1

desaturation, overtemperature, real time monitor, segmented drive, short-circuit, two-level turn off, undervoltage

500

-12

25

4.75

6

24

-40 to 125

up to ASIL D

Active

Adjustable dynamic gate strength, Advanced HV GDIC with Bus discharge, RDSonM, VT Detection

5

SSOP32

32

1K @ US$5.27

100

10, 20, 30

1

desaturation, overtemperature, real time monitor, segmented drive, short-circuit, two-level turn off, undervoltage

500

-12

25

4.75

6

24

-40 to 125

up to ASIL D

Documentation

Quick reference to our documentation types.

6 documents

Compact List

Brochure (1)
Data Sheet (1)
Fact Sheet (1)
Selector Guide (1)
User Manual (1)
White Paper (1)

Design Files

Quick reference to our design files types.

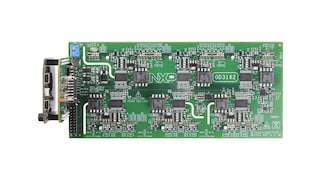

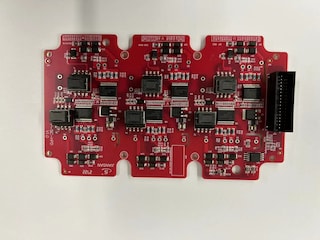

Hardware
